LFTWH-QC-H 3/4

Part of the LFTWH Series

Ordering Code: 0100148

UPC: 098268465662

Lead Free: YES

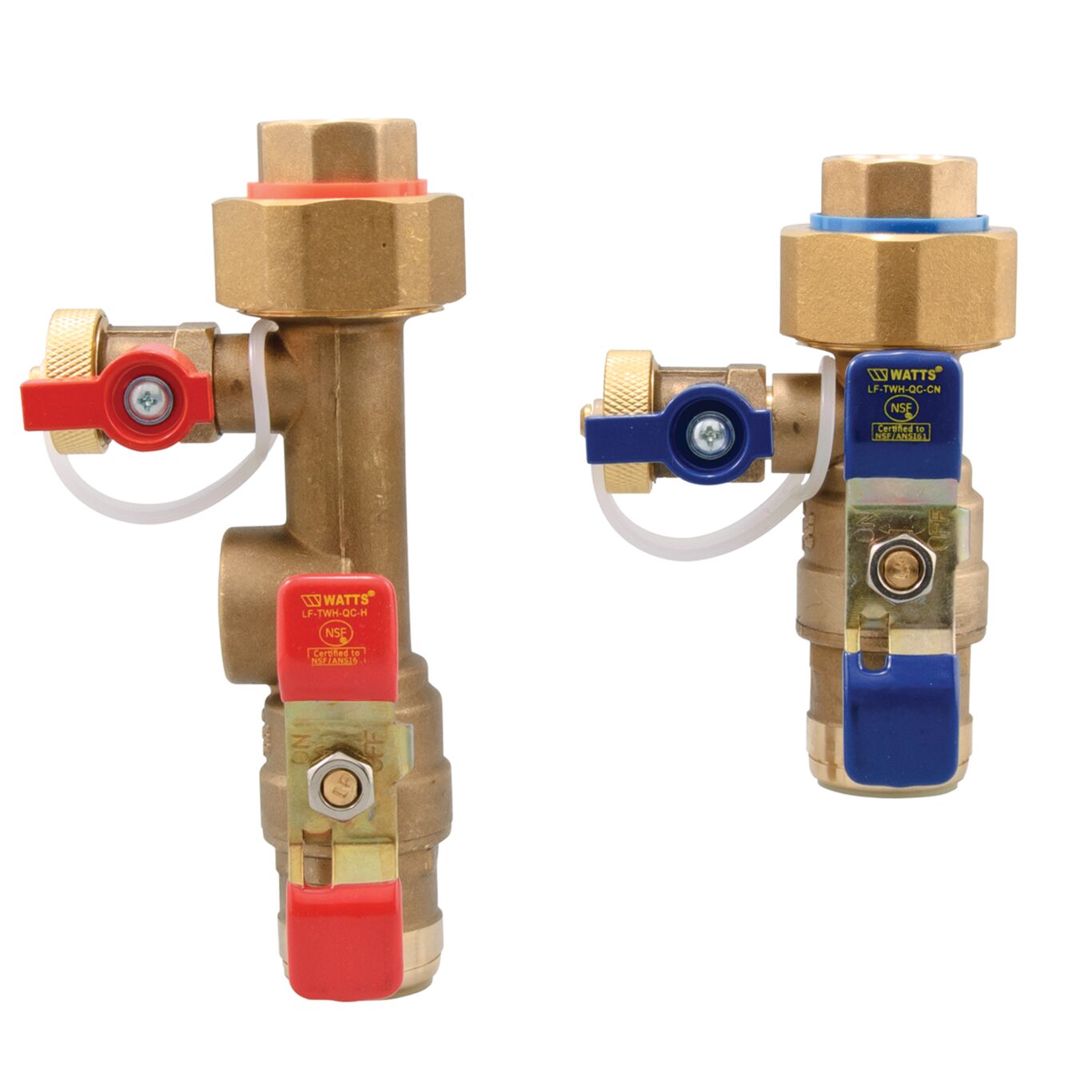

3/4 In Lead Free Tankless Water Heater Valve Set, Hot Water Valve, Quick-Connect End Fittings

This lead free tankless water heater valve set is designed to simplify the installation, maintenance and operation of tankless water heaters. This 3/4 inch tankless hot water heater valve set, with quick connect fitting and spring check, facilitates isolation of the water heater from the water lines, water heating purging and draining. It replaces up to 18 fittings and 16 connections used in typical tankless water heater installations. It features a lead free copper silicon alloy body, full-port quarter-turn ball valve with color-coded T-handle, virgin PTFE seats, purge and drain valve with a hose connection and tethered brass cap, FPT union connection to water heater and quick connect fitting to waterline. The pressure rating is 600 psi (41.4 bar) WOG.

Product Features

  • Suitable for most tankless water heater applications
  • No additional adapters required
  • Lead free copper silicon alloy body
  • Staggered connection points for ease of installation and access
Specifications
Body Material Forged Brass
Brand Name Watts
Cold Water Inlet Connection Size 3/4 IN
Cold Water Inlet Connection Type Quick Connect
Cold Water Outlet Connection Size 3/4 IN
Cold Water Outlet Connection Type Quick Connect
Hot Water Inlet Connection Size 3/4 IN
Hot Water Inlet Connection Type Quick Connect
Hot Water Outlet Connection Type Union Joint
Lead Free YES
Pressure Relief Valve No
Valve Type Single Hot Water
