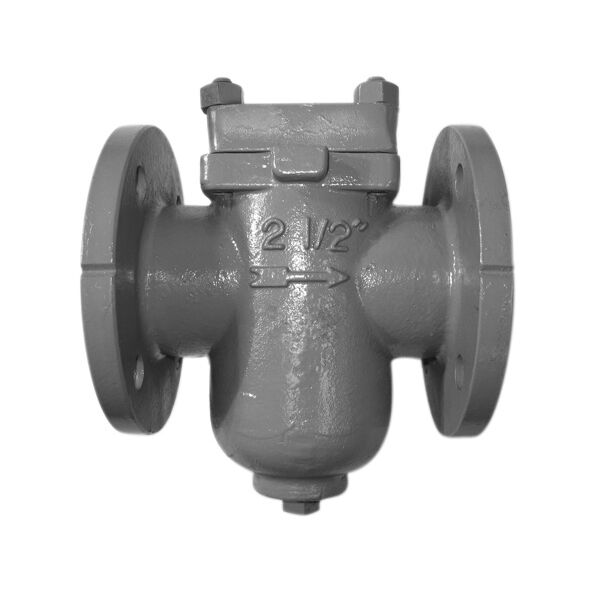

Class 300 Cast Steel or Alloy Flanged End Basket Strainers

Designed for chemical process applications including brine, paint, fuel oil, organic and inorganic chemicals as well as condensers and heat exchangers. This Series features an angular cutaway design of the basket to allow a straight through flow for extremely low pressure drop, and a tapped and plugged NPT drain on the strainer bottom for easy self-cleaning. Class 300.

Features

  • Cast Carbon Steel or Chrome-Moly Alloy body and 304 Stainless Steel basket strainer that allows a straight through flow for an extremely low pressure drop
  • Used to strain foreign matter from pipelines and provide economical protection for pumps and other mechanical equipment
  • Sizes 1 1⁄2 in. – 20 in. (40 – 500 mm)
  • Suited for medium and coarse straining for brine, paint, fuel oil, organic and inorganic chemicals, as well as condensers and heat exchangers

Select a Model

Select options below to identify the UPC, Order Code, and Repair Kit for a specific 186

Approval Information

For approval information, please refer to the products specification sheet. For any other information on product certification and documentation information, please visit our certification partner websites:
