97FB-CIB 2

Part of the 97FB-CI Series

Ordering Code: 0823054

UPC: 098268880939

Lead Free: YES

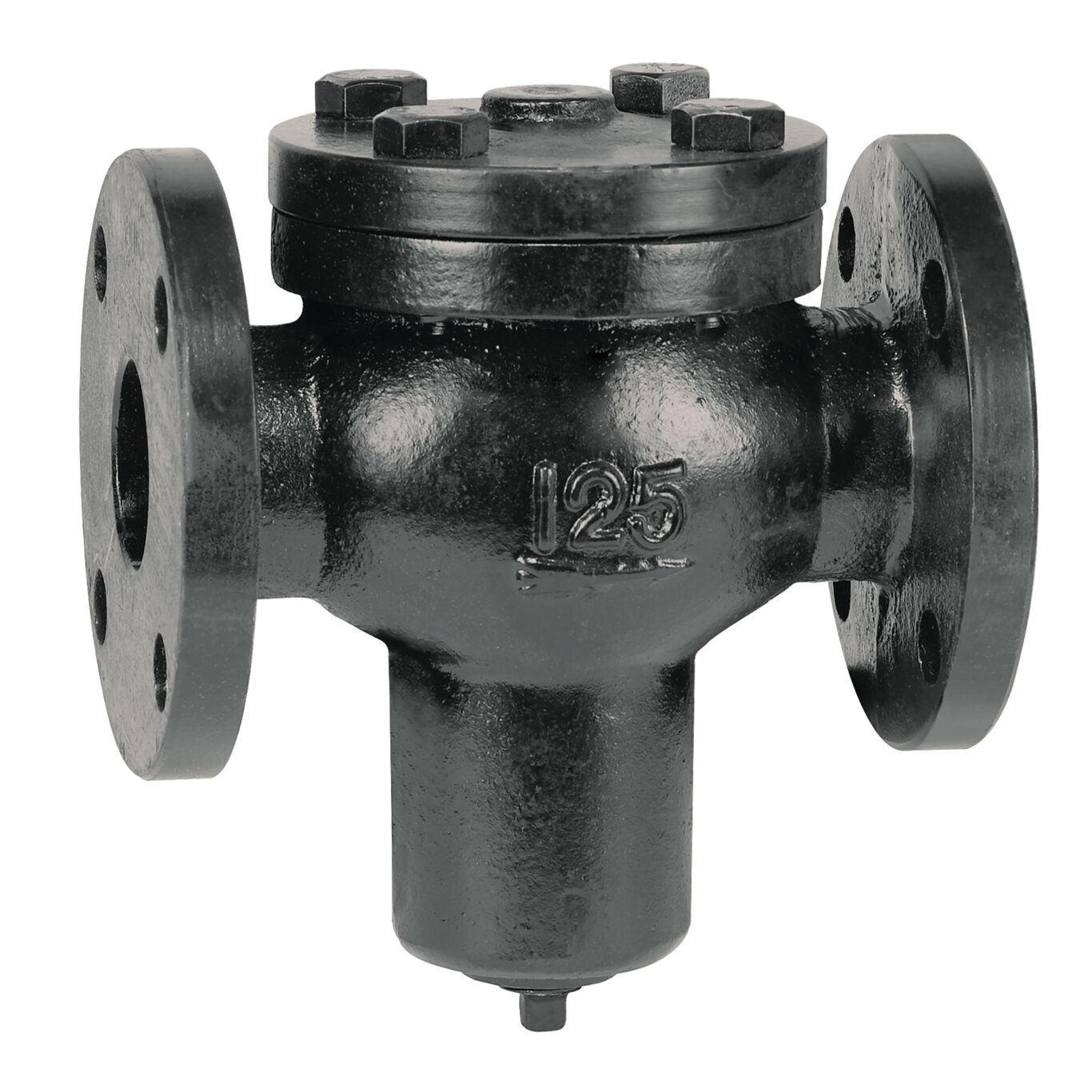

2 In Cast Iron Simplex Basket Strainer, Flange, Bolted Cover, 125 Wsp/200 Wog

This cast iron simplex basket strainer, 2 inch Watts Model 97FB-CI, is for use in liquid and steam applications. It has a plugged blow off connection and angle designed baskets. The basket strainer comes with a bolted cover and a graphite gasket and may only be installed in a horizontal position.

Product Features

  • Stainless steel screen
  • Cast iron body
  • Flanged connections
  • Angle-designed basket
Body Material Cast Iron
Body Pattern Basket
Bolt Material Cast Iron
Brand Name Watts
Class Rating 125
Flange Material Cast Iron
Inlet Connection Size 2 IN
Inlet Connection Size-Metric 50 MM
Inlet Connection Type Flanged Joint
Inlet Thread Type Does Not Apply To Product
Lead Free YES
Model Number 97FB-CIB 2
Outlet Connection Size 2 IN
Outlet Connection Type Flanged Joint
Outlet Thread Type Does Not Apply To Product
Part Number 0823054
Perforated Screen Size 3/64
Plug Material Cast Iron
Retainer Cover Type Bolted Cap
Screen Material Stainless Steel
Series 97FB-CI
WOG Rating 200 PSI
