692MFD

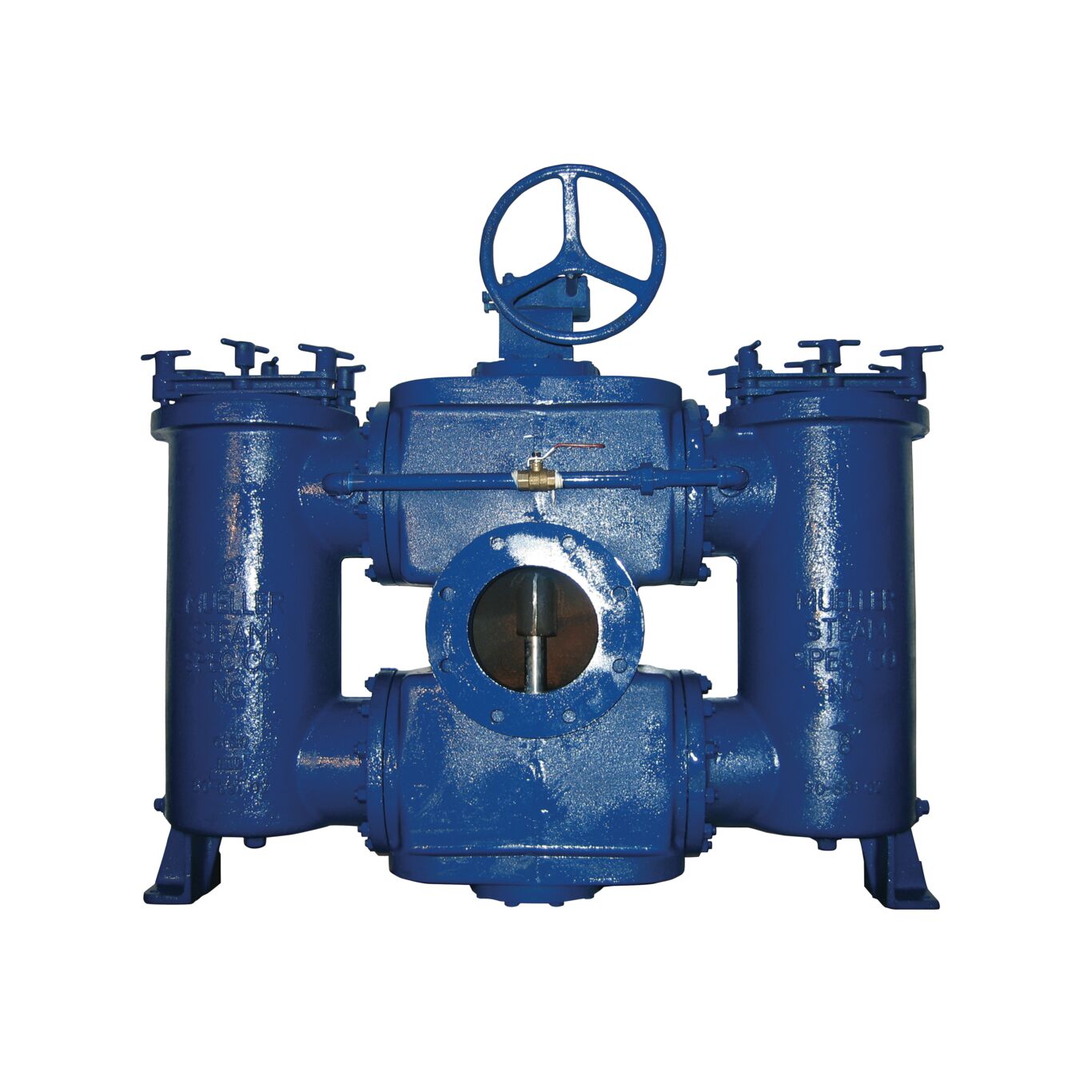

Class 150 Carbon Steel Large Duplex Strainers
Designed for use in fluid handling systems where the flow cannot be shut down for basket cleaning. Typical applications include, but are not limited to, cooling water, compressors, condensers, fire lines, fuel lines, lubrication systems, salt and freshwater systems, chemical process systems, pump suction service, and other similar applications. Class 150.
Features
- Designed for fluid handling applications where flow cannot be shut down for basket cleaning
- Typical services include cooling water, compressors, condensers, fire lines, fuel lines, lubrication systems, salt and fresh water systems, chemical process systems, pump suction service, and more
- Cast Carbon Steel body and 304 Stainless Steel basket that is gasketed and seated to prevent particle bypass
- Sizes 8 in. – 16 in. (200 – 400 mm)
Literature
-
- Catalog - Mueller Steam Specialty
- Installation Instructions - Duplex Strainers, 8 -16 IN Sizes
- Price List - Mueller Steam Specialty
- Specification Sheet - 691MFA, 691MFA-SM, 692MFB, 692MFD, 692MFD-SM, 692MFH
- Specification Sheet - 691MFA, 691MFA-SM, 692MFB, 692MFD, 692MFD-SM, 692MFH (French)
- Specification Sheet - 691MFA, 691MFA-SM, 692MFB, 692MFD, 692MFD-SM, 692MFH (Spanish)
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 692MFD
