77F-DI-250 8 Watts

Part of the 77F-DI-250 Series

Ordering Code: 0823045

UPC: 098268880847

Lead Free: NO

8 In Ductile Iron Wye Pattern Strainer, Flange, Ss Perforated Screen, Tapped Retainer Cap, Closure Plug

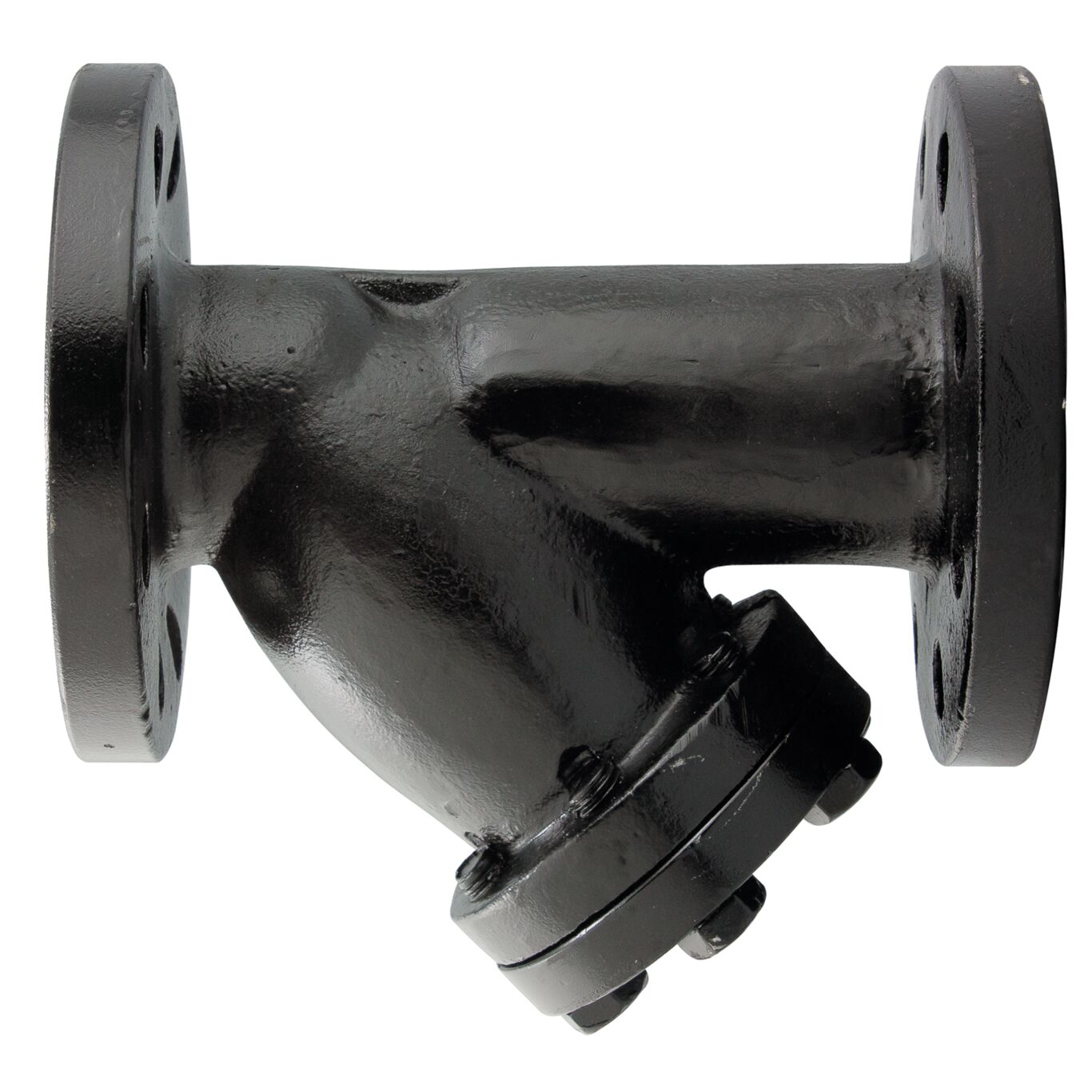

This ductile iron flanged wye pattern strainer, 8 inch Watts Model 77F-DI-250, has a one piece cast body, bolted cover flange with flat gasket seal, 304 stainless steel perforated screens and a drain blow off connection plug.

Product Features

  • One piece cast body
  • Wye pattern
  • Iron blow down plug
  • Class 250 flanged connections
Specifications
Blowdown Outlet Connection Flanged Joint
Blowdown Outlet Size 1 1/2 IN
Body Material Ductile Iron
Body Pattern Wye
Bolt Material Carbon Steel
BrandName Watts
Class Rating 250
Epoxy Coating Type None
Flange Material Cast Iron
Gasket Material Graphite
Inlet Connection Size 8 IN
Inlet Connection Type Flanged Joint
Inlet Thread Type Does Not Apply To Product
LeadFree NO
Maximum Operating Temperature-Fahrenheit 406
Minimum Temperature-Fahrenheit -20
ModelNumber 77F-DI-250 8
Outlet Connection Size 8 IN
Outlet Connection Type Flanged Joint
Outlet Thread Type Does Not Apply To Product
Part Number 0823045
Perforated Screen Size 1/8
Plug Material Cast Iron
Retainer Cover Material Ductile Iron
Retainer Cover Type Tapped with Closure Plug
Screen Material Stainless Steel
Screen Size 1/8
Series 77F-DI-250
Strainer Type Wye
WOG Rating 500 PSI
