77F-SS 2 1/2

Part of the 77F-SS Series

Ordering Code: 0821110

UPC: 098268802160

Lead Free: YES

2 1/2 In Ss Wye Pattern Strainer, Flange, Ss Perforated Screen, Tapped Retainer Cap, Closure Plug

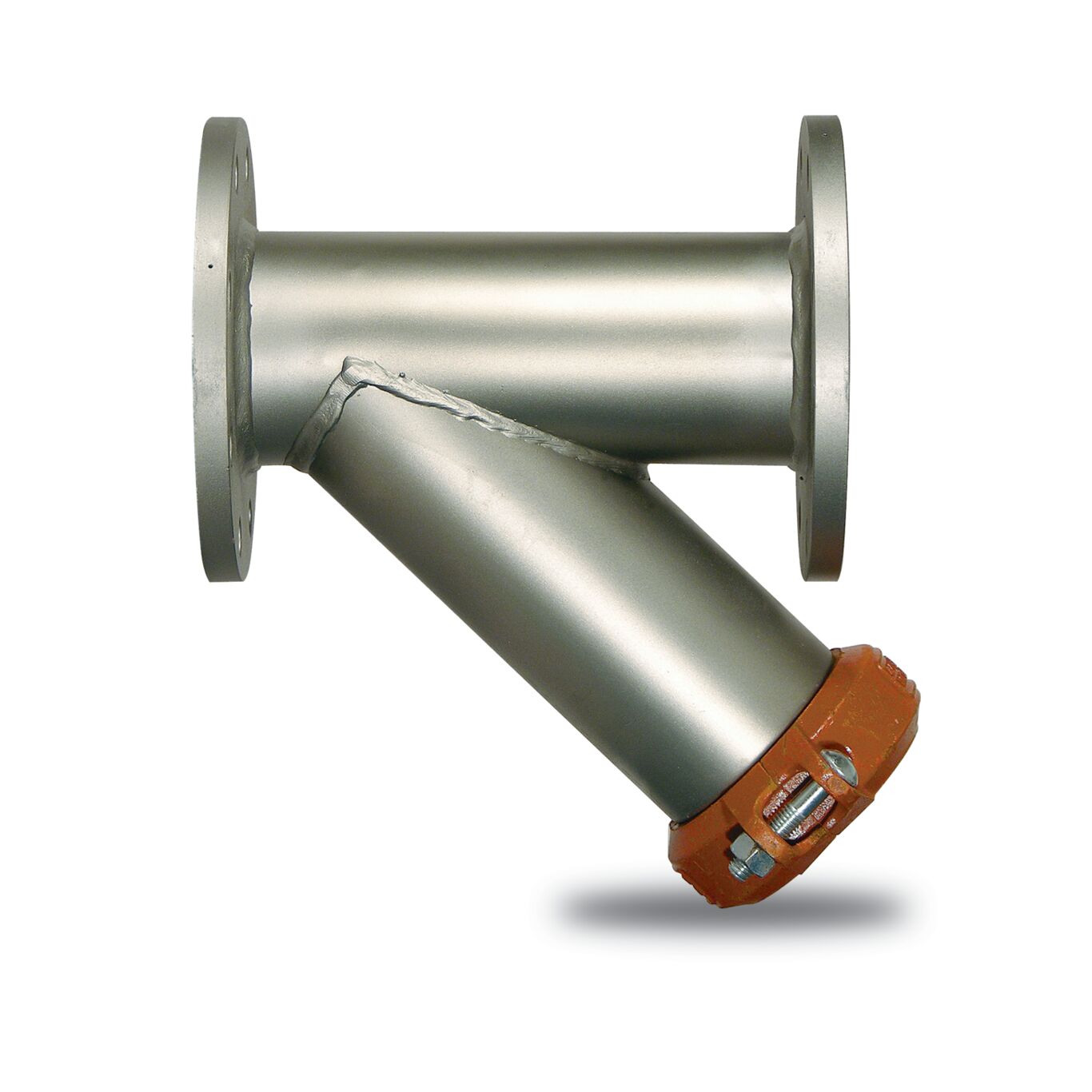

This stainless steel flanged wye pattern strainer, 2 1/2 inch Watts Model 77F-SS, is a lightweight fabricated strainer designed to remove dirt and other debris from fluid systems. A simple cover and coupling design permits easy cleaning or replacement of the screen.

Product Features

  • 304 stainless steel screen
  • Flanged
  • Wye pattern
  • Stainless steel body
Specifications
Blowdown Outlet Connection Flanged Joint
Blowdown Outlet Size 1/2 IN
Body Material Stainless Steel
Body Pattern Wye
Bolt Material Steel
Brand Name Watts
Class Rating 150
EANUCCCode 098268802160
Epoxy Coating Type None
Flange Material Carbon Steel
Gasket Material EPDM
Inlet Connection Size 2 1/2 IN
Inlet Connection Size-Metric 65 MM
Inlet Connection Type Flanged Joint
Inlet Thread Type Does Not Apply To Product
Lead Free YES
Outlet Connection Size 2 1/2 IN
Outlet Connection Type Flanged Joint
Outlet Thread Type Does Not Apply To Product
Part Number 0821110
Perforated Screen Size 1/16
Plug Material Brass
Retainer Cover Material Ductile Iron
Retainer Cover Type Tapped with Closure Plug
Screen Material Stainless Steel
Screen Size 1/16
Series 77F-SS
Strainer Type Wye
WOG Rating 200 PSI
