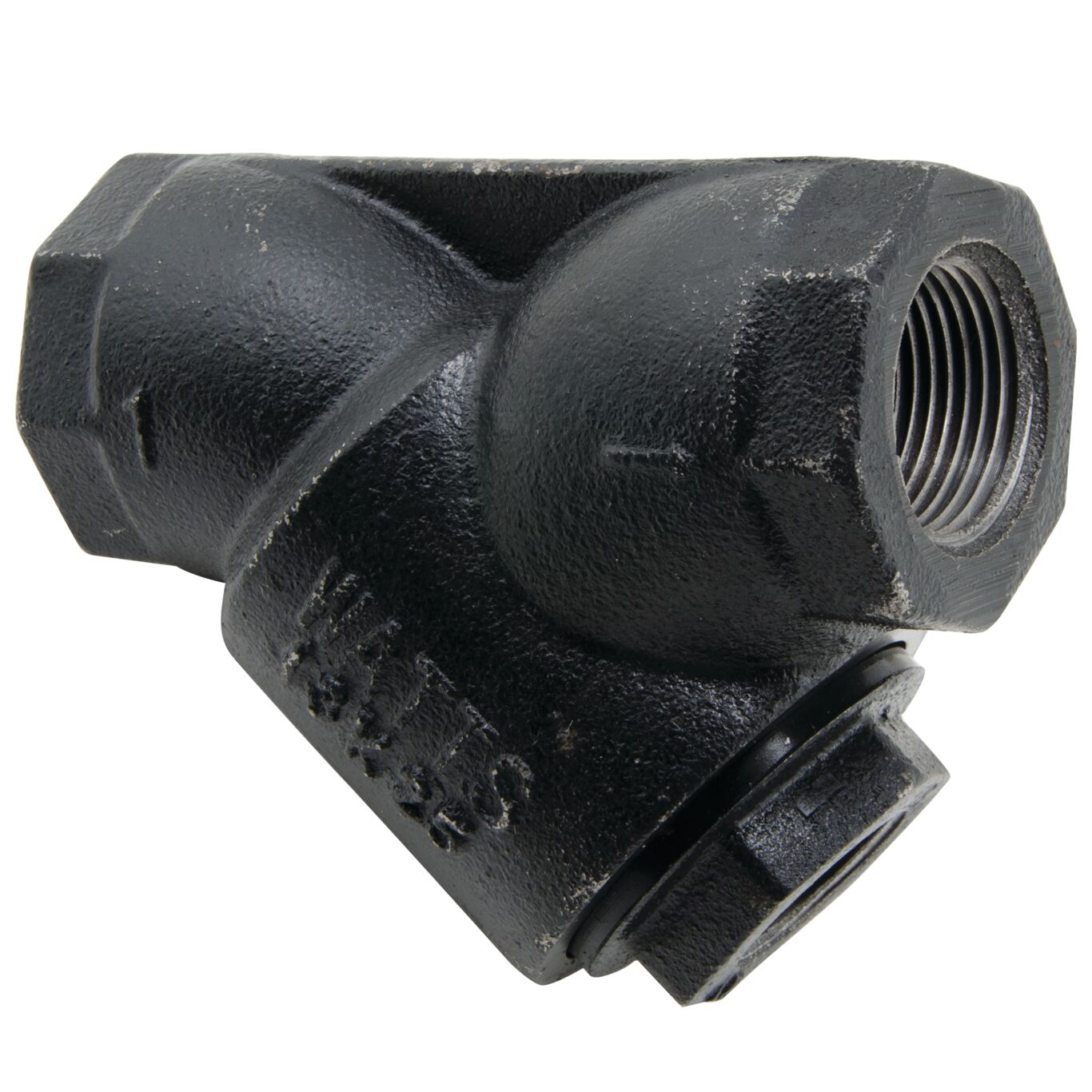

77S
Cast Iron, Wye-Pattern Strainers
77S
Cast Iron, Wye-Pattern Strainers
Features
- Cast steel 45° wye-pattern body for efficient flow and long life
- NPT threaded connection and threaded iron retainer cap for easy installation
- Machined seat allows self-aligning screen to help ensure a perfect fit
- Non-asbestos gasket and tapped blow-down connection for greater confidence
Series 77S Cast Iron, Wye-Pattern Strainers feature a wye-pattern, iron body with threaded connections, stainless steel screen, threaded iron retainer cap with non-asbestos gasket and tapped blow-down connection. Series 77S has machined seat that allows the screen to be self-aligning to assure a perfect fit. Maximum Pressure (non shock): 400psi (27.6 bar) at 150°F (66°C) WOG, 250psi (17.2 bar) at 406°F (208°C) WSP.
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 77S
