87SI

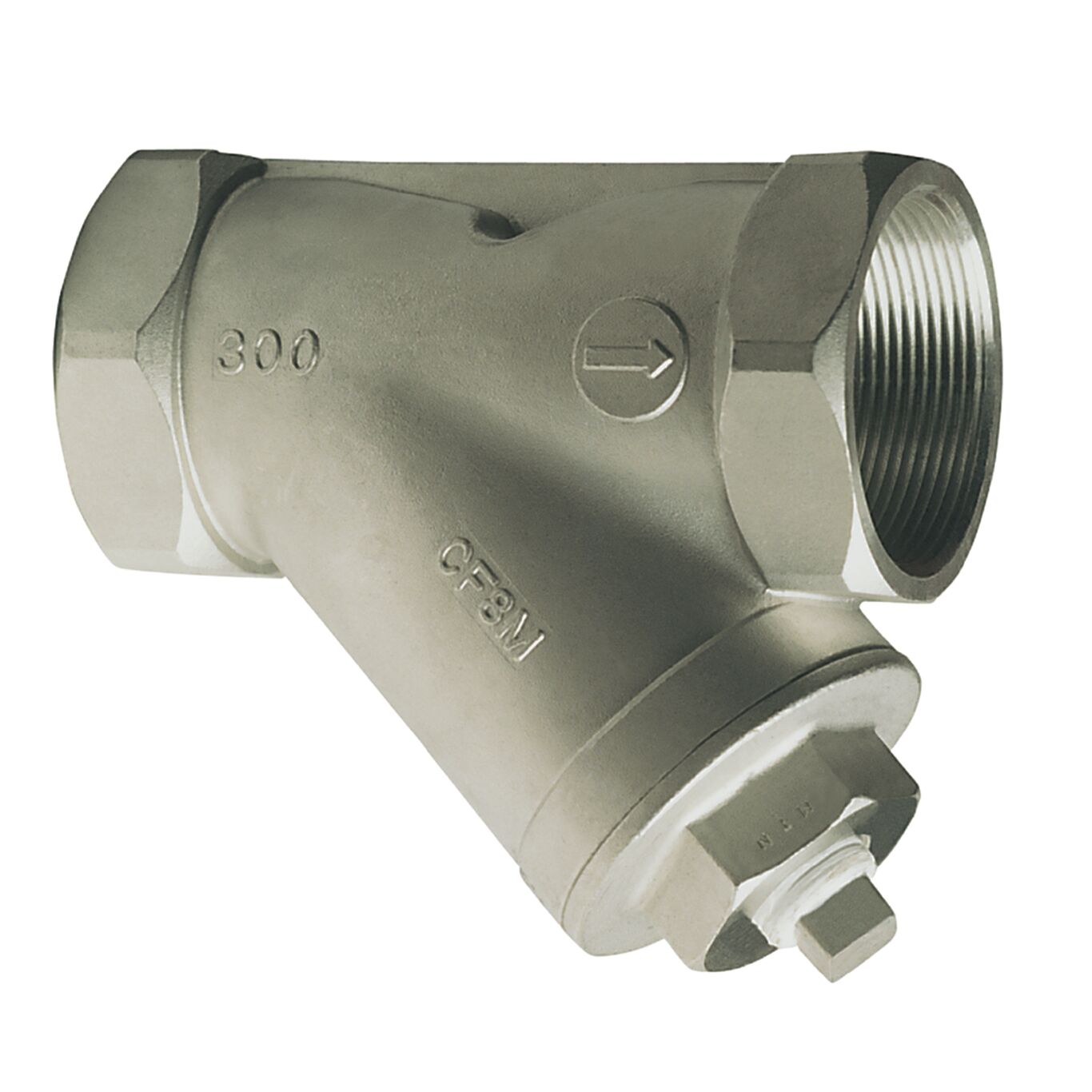

Stainless Steel, Wye-Pattern Strainers
Series 87SI Stainless Steel, Wye-Pattern Strainers feature a stainless steel body with threaded (Model 87SI-T) or socket weld (Model 87SI-SW) connections, stainless steel screen, stainless steel retainer cap with PTFE gasket, and blow-down plug. Series 87SI has machined seat that allows the screen to be self-aligning to assure a perfect fit. Maximum Pressure (non shock): 720psi (49.7 bar) at 100°F (38°C) WOG, 300psi (20.7 bar) at 400°F (204°C) WSP.
Features
- Wye-pattern stainless steel body with choice of threaded or socket weld connections
- Machined seat allows self-aligning screen to help ensure a perfect fit
- Reliable stainless steel screen and retainer cap with PTFE gasket and blow-down plug
- Maximum pressure: 720psi (49.7 bar) at 100°F (38°C) WOG; 300 psi (20.7 bar) at 400°F (204°C) WSP
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 87SI
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
