88S 1/2 Watts

Part of the 88S Series

Ordering Code: 0701004

UPC: 098268088403

Lead Free: YES

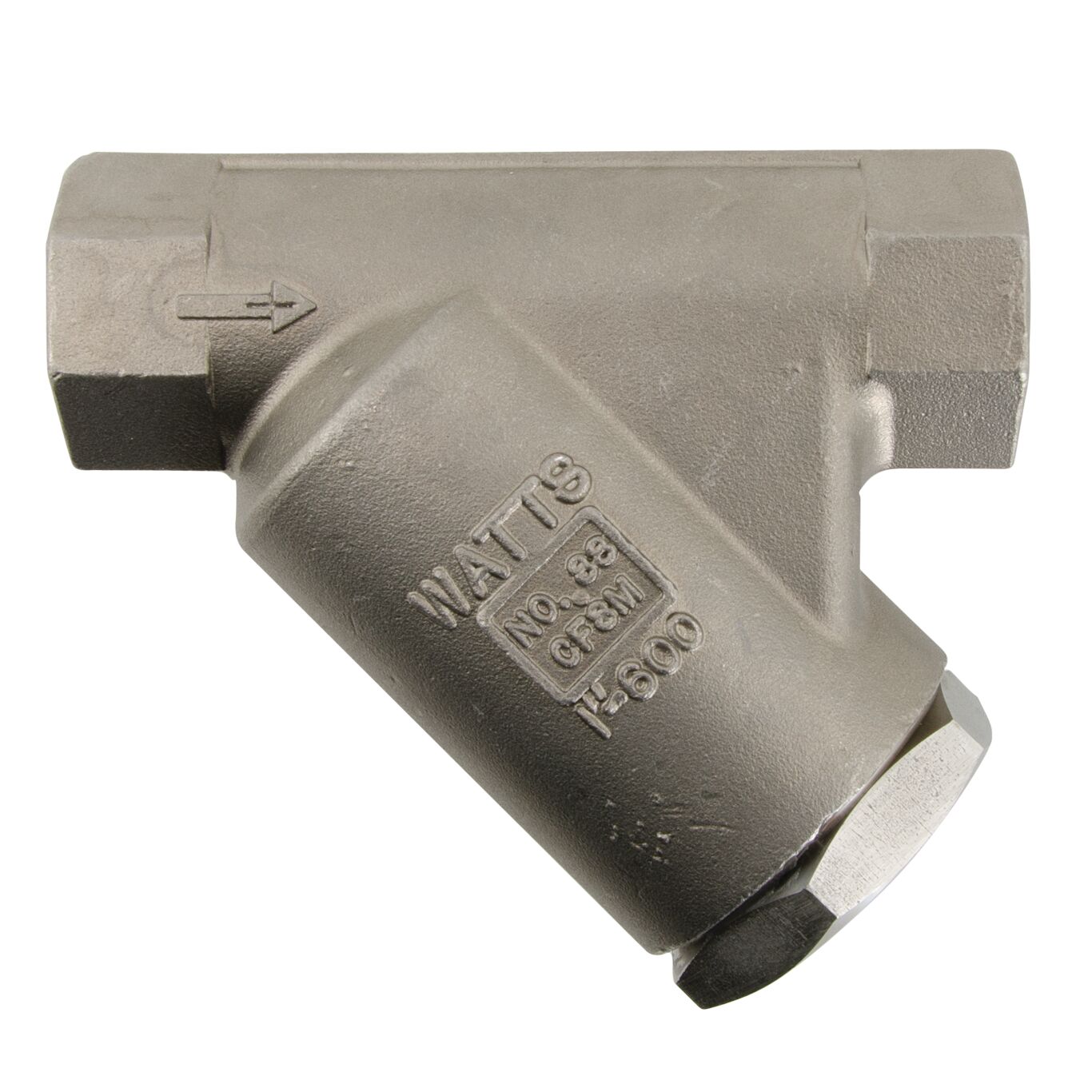

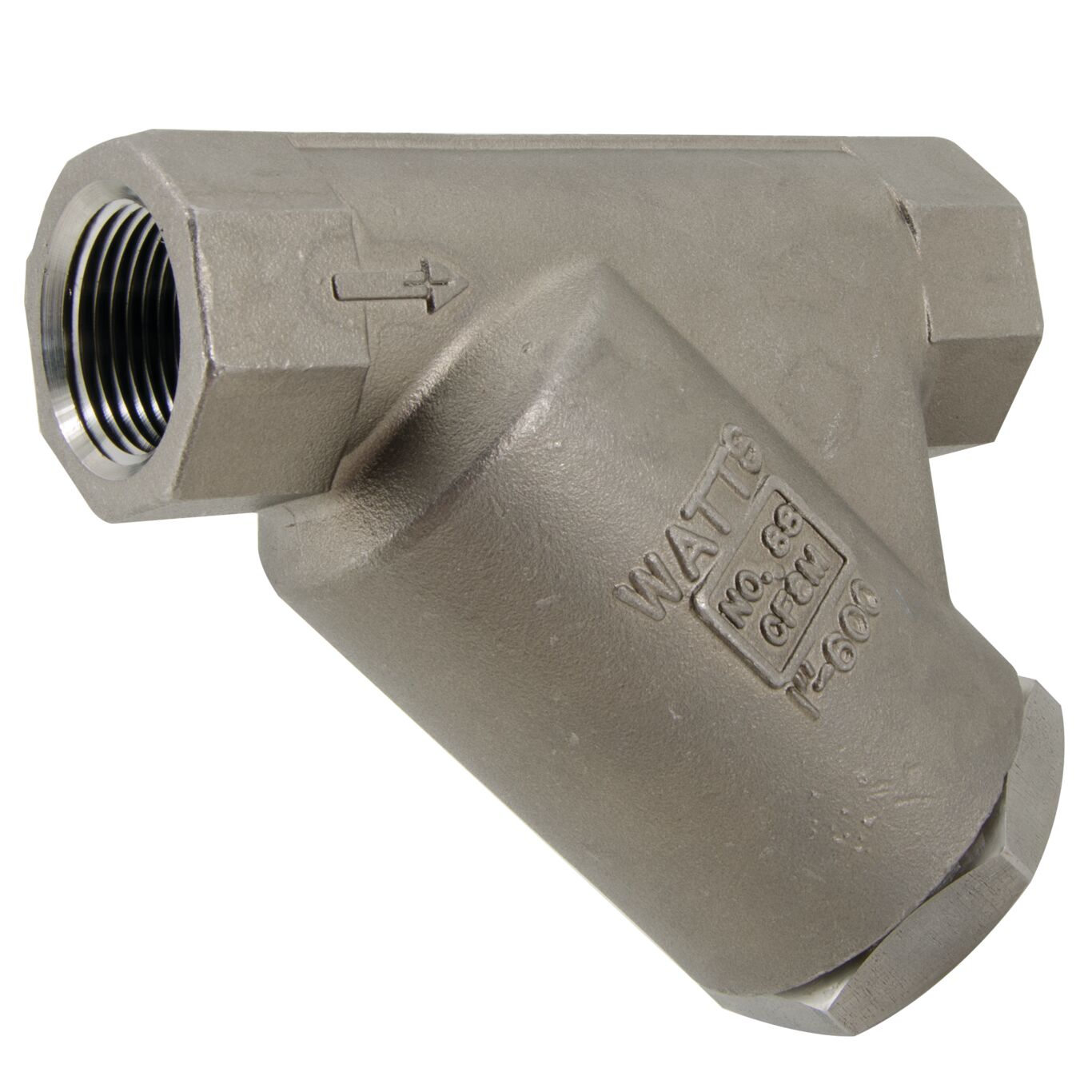

1/2 In Ss Wye Pattern Strainer, Thread, Tapped Retainer Cap

This stainless steel wye pattern strainer, 1/2 inch Watts Model 88S, is used in liquid or steam applications. The strainer is designed to ensure complete protection to mechanical equipment from the injurious effects of dirt, scale, welding particles or other foreign objects. Built for long service in corrosive, high pressure and high temperature applications. The bottom threaded cap is mated to the body with straight threads and is sealed off from contact with the media flowing through the strainer by a cap gasket. This prevents corrosion of the threads, thus enabling easy servicing and avoids potential deterioration of the threads after an extended period.

Product Features

  • Threaded connections
  • Stainless steel body
  • Stainless steel screen
  • Wye pattern
Specifications
Blowdown Outlet Connection Female Threaded
Blowdown Outlet Size 1/4 IN
Body Material Cast Stainless Steel
Body Pattern Wye
BrandName Watts
Gasket Material Graphite
Inlet Connection Size 1/2 IN
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
LeadFree YES
ModelNumber 88S 1/2
Outlet Connection Size 1/2 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0701004
Perforated Screen Size 1/16
Retainer Cover Material Stainless Steel
Retainer Cover Type Tapped without Closure Plug
Screen Material Stainless Steel
Screen Size 1/16
Series 88S
Strainer Type Wye
WOG Rating 1440 PSI
