LF351
×
![]()
Part of the LF351 Series
Ordering Code: M6744676
UPC: 643925352412
Lead Free: YES
Cast Lead Free Bronze Strainer

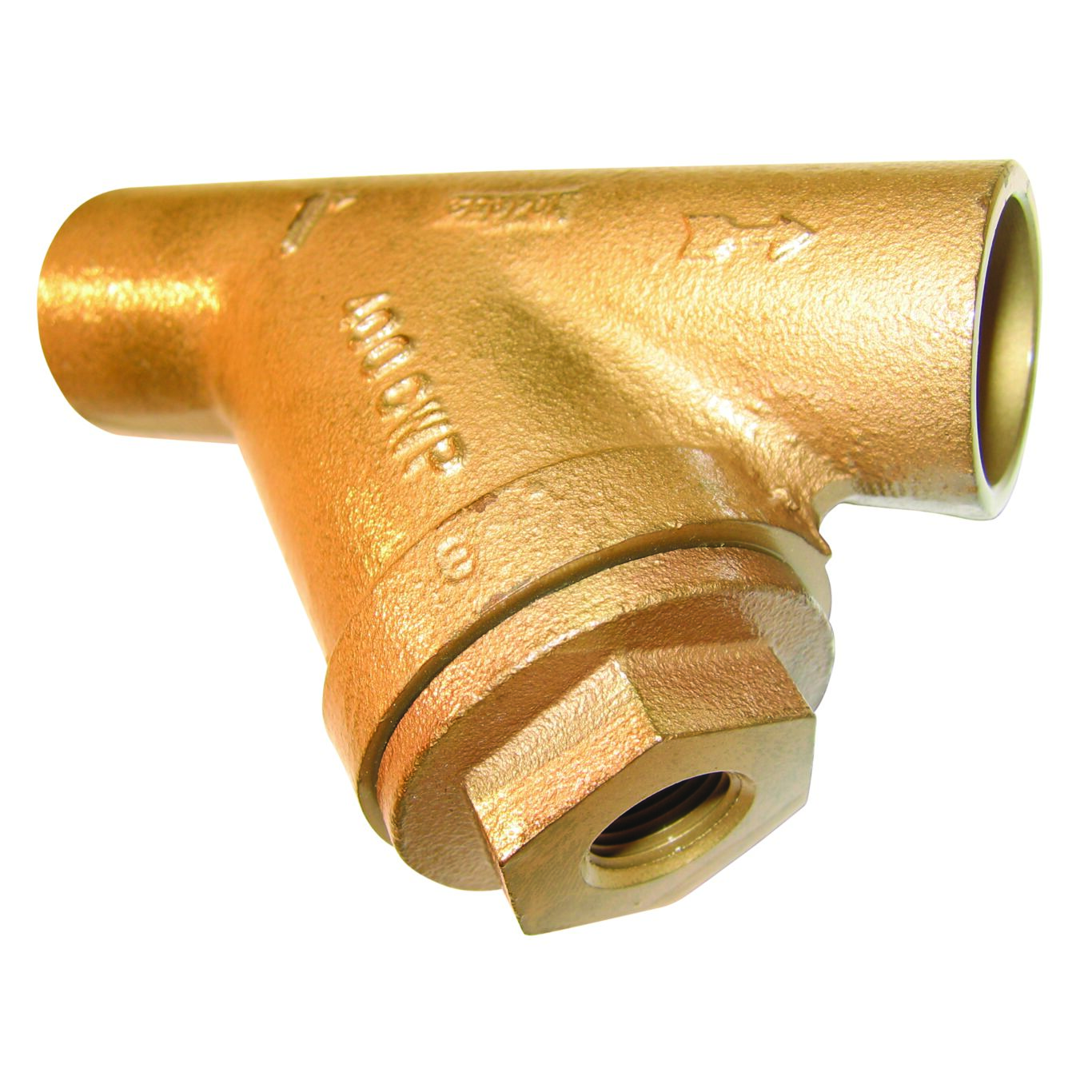

The LF351 model is a cast lead free bronze wye strainer. A strainer is used to strain foreign matter from pipelines and provide protection for pumps and other mechanical equipment. This strainer has a lead free bronze body and a 304 stainless steel screen that is securely seated to eliminate sediment bypass.
Features
- Lead free construction
- Bronze body
- Threaded connections
- 304 stainless steel screen
| Specifications | |
|---|---|
| Blowdown Outlet Connection | NPT |
| Blowdown Outlet Size | 1 1/4 IN |
| Body Material | Lead Free Cast Bronze |
| Body Pattern | Wye |
| Bolt Material | Bronze |
| Brand | Mueller Steam Specialty |
| Class Rating | Class 125 |
| Control Type | Does Not Apply To Product |
| EAN | 643925352412 |
| Epoxy Coating Type | Does Not Apply To Product |
| Flange Material | Does Not Apply To Product |
| Gasket Material | Metal Filled Graphite |
| Grooved Coupling Material | Does Not Apply To Product |
| Inlet Connection Size | 2 1/2 IN |
| Inlet Connection Size-Metric | 65 MM |
| Inlet Connection Type | Male Threaded |
| Inlet Thread Type | NPT |
| Lead Free | YES |
| Maximum Operating Temperature-Celsius | 150.00 |
| Maximum Operating Temperature-Fahrenheit | -20 |
| Maximum Pressure And Temperature | 200 PSI at 150F |
| Maximum Pressure-BAR | 13.80 |
| Maximum Pressure-PSI | 200 |
| Maximum Working Pressure And Temperature | 200 PSI at 150F |
| Minimum Temperature - Celsius | -28.00 |
| Minimum Temperature-Fahrenheit | -20 |
| Outlet Connection Size | 2 1/2 IN |
| Outlet Connection Type | Male Threaded |
| Outlet Thread Type | NPT |
| Part Number | M6744676 |
| Plug Material | Bronze |
| Pressure-Temperature Rating | 200 PSI at 150F |
| Pressure-Temperature Rating-BAR | 13.8 BAR at 66C |
| Retainer Cover Material | Does Not Apply To Product |
| Retainer Cover Type | Does Not Apply To Product |
| Screen Material | 304 SS |
| Screen Size | 20 MESH |
| Seat Material | Bronze |
| Series | LF351 |
| Strainer Type | Wye |
| WOG Rating | 200 |
