DETA-180

Part of the DETA Series

Ordering Code: 0212036

UPC: 098268913583

Lead Free: YES

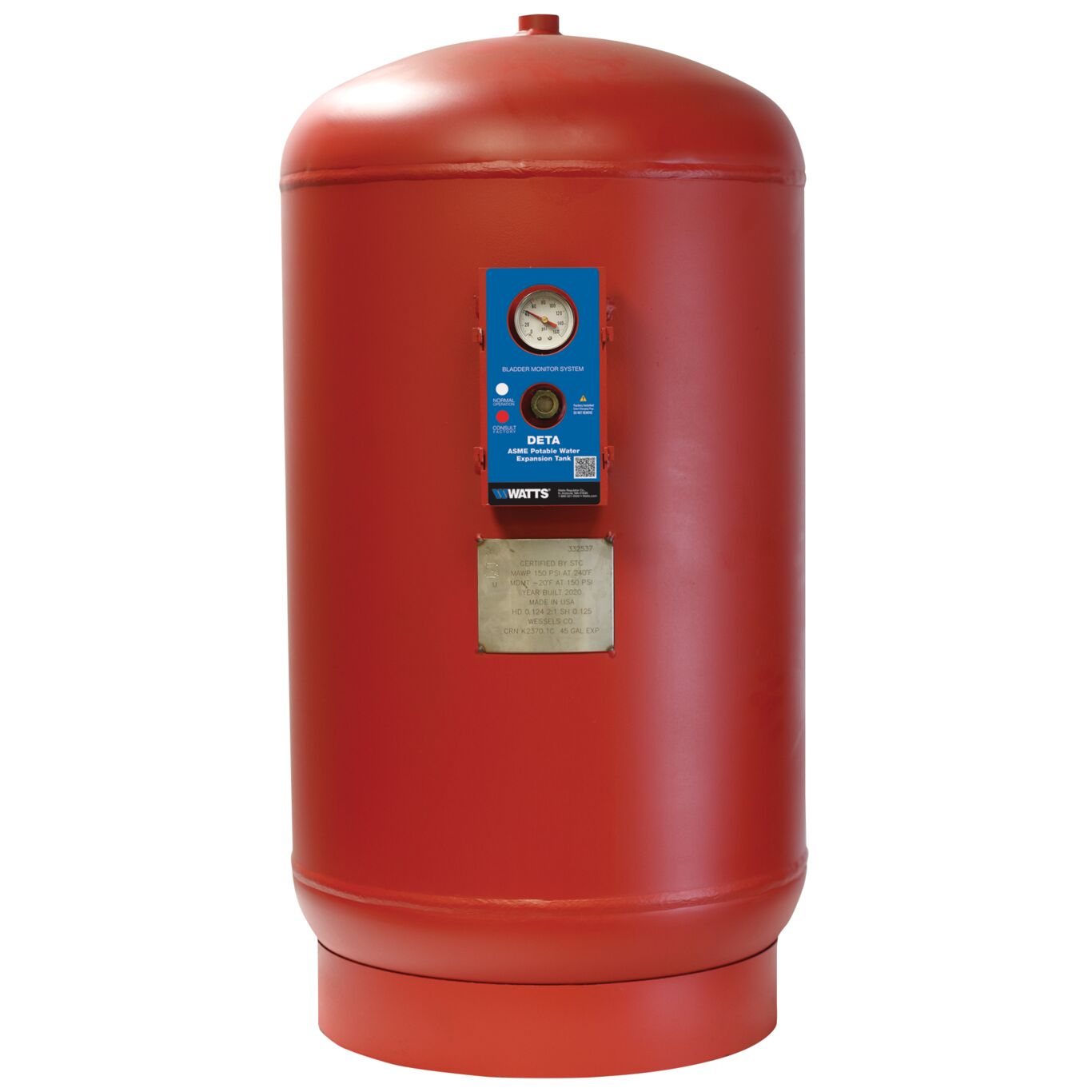

Potable Water Expansion Tank, 1 1/2 In Mnpt Connection, Tank Volumn 80 Gallons

This 80 gallon domestic potable water expansion tank is used on gas, oil, or electric, direct-fired, residential water heater and hot water storage tank applications to absorb the increased volume of water created by thermal expansion. It also maintains balanced pressure throughout the water supply system by keeping system pressure below the T&P relief valve setting. It is a pre-pressurized, field-adjustable steel tank with an FDA-approved Butyl rubber diaphragm, and brass 3/4 IN inlet connection. An expansion membrane prevents air-to-water contact in the tank ensuring a long system life. IAPMO listed and ANSI/NSF 61 certified. Maximum pressure is 150 psi (10 bar).

Product Features

  • In line and free standing models
  • Field adjustable pre-charge
  • Can be used with most standard hot water heaters and storage tanks
  • Rugged flexible butyl diaphragm
Specifications
Brand Name Watts
Diameter 24 IN
Inlet Connection Size 1 1/2 IN
Inlet Connection Size-Metric 40 MM
Inlet Connection Type Male Threaded
Lead Free YES
Maximum Operating Temperature-Fahrenheit 240
Maximum Working Pressure-PSI 150
Mount Type Free Standing
Tank Acceptance 52.5 Gallon
