PWS15T171C21

Part of the PWS15T Series

Ordering Code: 7100060

UPC: 098268559699

Lead Free: YES

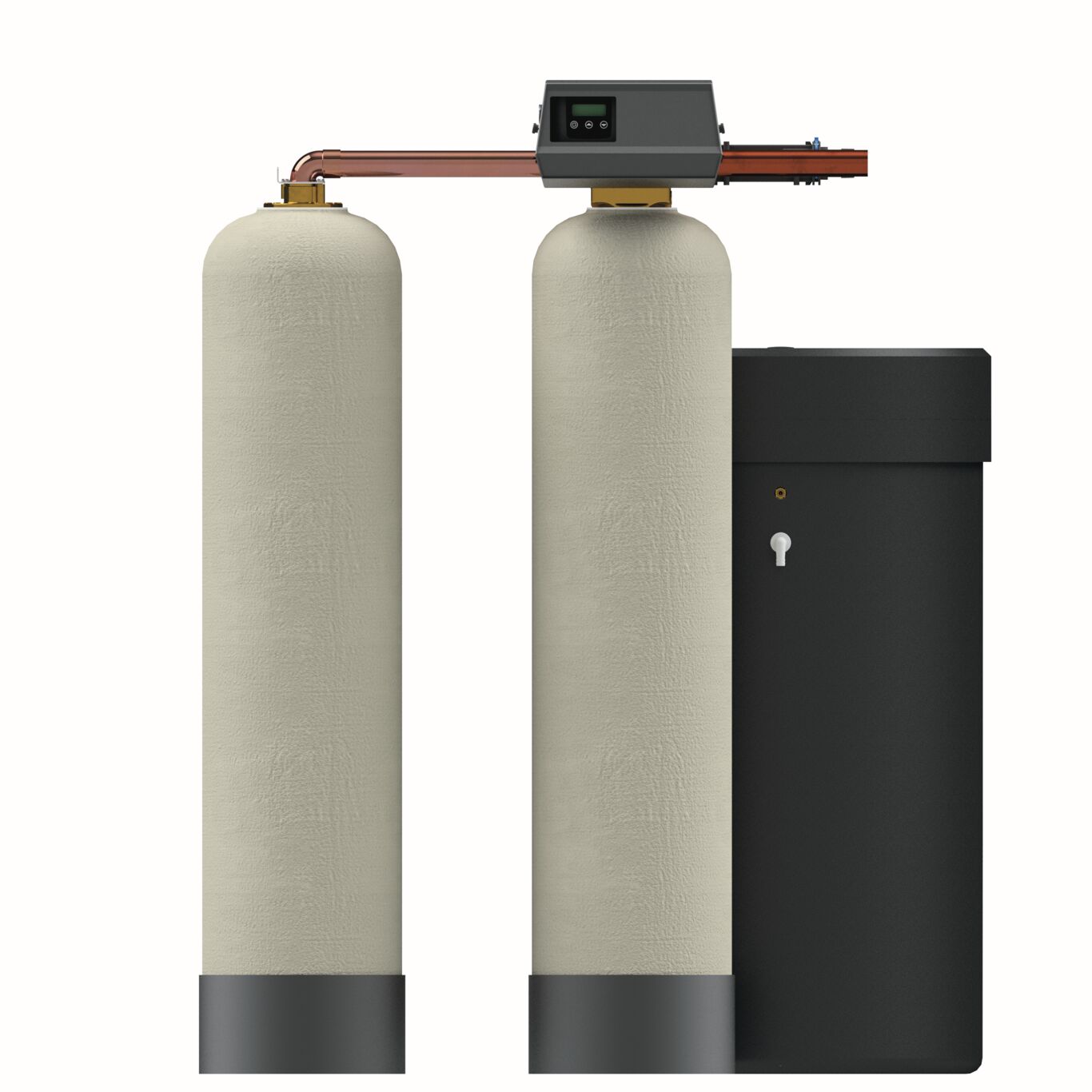

1 1/2 In X 12 In Almond Mineral Hardness Removal Twin Alternating Water Softening System

This twin alternating water softening system is a high efficient conventional cation exchange type water softener. It is designed for the point of use or point of entry applications where softened water is required around the clock. The system has a 12 inch diameter mineral tank, contains 2 cubic feet of high capacity ion exchange resin per tank, and has a peak flow rate of up to 20 gallons per minute. It has a 1 1/2 IN FNPT inlet and outlet and a 1 IN MNPT drain connection. This unit exchanges scale forming calcium and magnesium ions with non-scale forming sodium ions to create soft water for a variety of applications. This high quality system comes with a mineral tank, resin, and control valve that are NSF and ANSI certified. The durable brass control valve is operated by an electronic controller that stores key operational history that can be accessed by the user. The system is metered demand initiated so regeneration only occurs when necessary which saves time, water, and salt.

Product Features

  • Digital valve controller stores key operational history
  • Corrosion resistant fiberglass mineral tank
  • Durable brass body control valve
  • High capacity blonde resin for reduced color throw
Specifications
Additional Contaminants Removed Does Not Apply to Product
Backwash Flow Rate-GPM 5.00
BrandName Watts
Brine Tank Color Black
Brine Tank Size 24 IN x 41 IN
By-Pass Type No By-Pass
Control Valve Location Top Mount
Control Valve Style Digital
Control Valve Type Metered
Electrical Requirements 120 V
Fourth Media Type Does Not Apply To Product
Fourth Media Volume Does Not Apply To Product
Inlet Connection Size 1 1/2 IN
Inlet Connection Thread Type FPT
Inlet Connection Type Female Threaded
LeadFree YES
Mineral Tank Size 12 IN x 52 IN
ModelNumber PWS15T171C21
Outlet Connection Size 1 1/2 IN
Outlet Connection Thread Type NPT
Outlet Connection Type Male Threaded
Part Number 7100060
Pounds Salt Per Regen-Maximum 30.00
Pounds Salt Per Regen-Minimum 12.00
Resin-CubicFeet 2.00
Salt Fill-Pounds 600.00
Secondary Media Type Does Not Apply To Product
Secondary Media Volume Does Not Apply To Product
Series PWS15T
Service Flow Rate-GPM-15PSI Drop 15.00
Service Flow Rate-GPM-25PSI Drop 20.00
Softener Application Commercial
Softener Type Twin Alternating
Softening Capacity-Maximum-30KGrPerFT3 60.00
Softening Capacity-Minimum-20KGrPerFT3 40.00
Tank Color Almond
Tank Type Fiberglass
Third Media Type Does Not Apply To Product
Third Media Volume Does Not Apply To Product
Valve Body Material Brass
