Part of the PWS30-2 Series

Sales Channel: Wholesale

Ordering Code: 7100053

UPC: 098268559309

Lead Free: YES

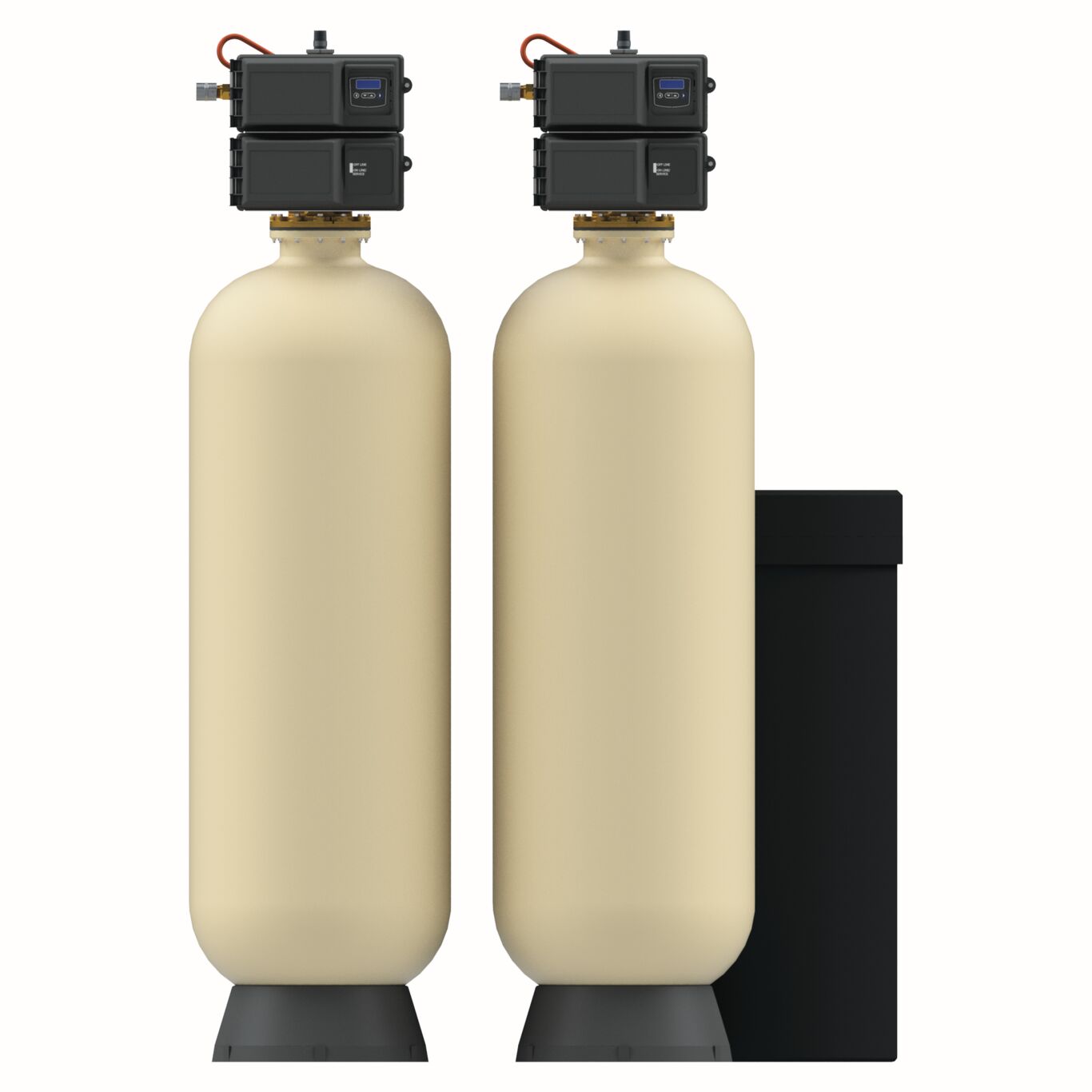

42 In Almond Mineral Hardness Removal Twin Alternating Water Softening System

This duplex alternating water softening system is a high efficient conventional cation exchange type water softener. It is designed for the point of use or point of entry applications where softened water is required around the clock. The system has a 42 inch diameter mineral tank, contains 30 cubic feet of high capacity ion exchange resin per tank, and has a peak flow rate of up to 268 gallons per minute. It has a 3 IN FNPT inlet and outlet and a 2 IN MNPT drain connection. This unit exchanges scale forming calcium and magnesium ions with non-scale forming sodium ions to create soft water for a variety of applications. This high quality system comes with a mineral tank, resin, and control valve that are NSF and ANSI certified. The durable brass control valve is operated by an electronic controller that stores key operational history that can be accessed by the user. The system is metered demand initiated so regeneration only occurs when necessary which saves time, water, and salt.

Product Features

  • Durable brass body control valve
  • Corrosion resistant fiberglass mineral tank
  • High capacity blonde resin for reduced color throw
  • Digital valve controller stores key operational history
Additional Contaminants Removed Does Not Apply to Product
Backwash Flow Rate-GPM 45.00
Brand Name Watts
Brine Tank Color Black
Brine Tank Size 42 IN x 60 IN
By-Pass Type No By-Pass
Control Valve Location Top Mount
Control Valve Style Digital
Control Valve Type Metered
EANUCCCode 098268559309
Electrical Requirements 120 V
Fourth Media Type Does Not Apply To Product
Fourth Media Volume Does Not Apply To Product
Inlet Connection Size 3 IN
Inlet Connection Thread Type FPT
Inlet Connection Type Female Threaded
Lead Free YES
Maximum Softening Capacity-30K Grains/Cubic Ft 900.00
Mineral Tank Size 42 IN x 72 IN
Outlet Connection Size 3 IN
Outlet Connection Thread Type NPT
Outlet Connection Type Male Threaded
Part Number 7100053
Pounds Salt Per Regen-Maximum 450.00
Pounds Salt Per Regen-Minimum 180.00
Resin (cubic feet) 30.00
Salt Fill-Pounds 3100.00
Secondary Media Type Does Not Apply To Product
Secondary Media Volume Does Not Apply To Product
Series PWS30-2
Service Flow Rate-GPM-15PSI Drop 200.00
Service Flow Rate-GPM-25PSI Drop 268.00
Softener Application Commercial
Softener Type Duplex
Softening Capacity-Minimum-20KGrPerFT3 600.00
Tank Color Almond
Tank Type Fiberglass
Third Media Type Does Not Apply To Product
Third Media Volume Does Not Apply To Product
Valve Body Material Brass
