Part of the PWS30 Series

Sales Channel: Wholesale

Ordering Code: 7100046

UPC: 098268559194

Lead Free: YES

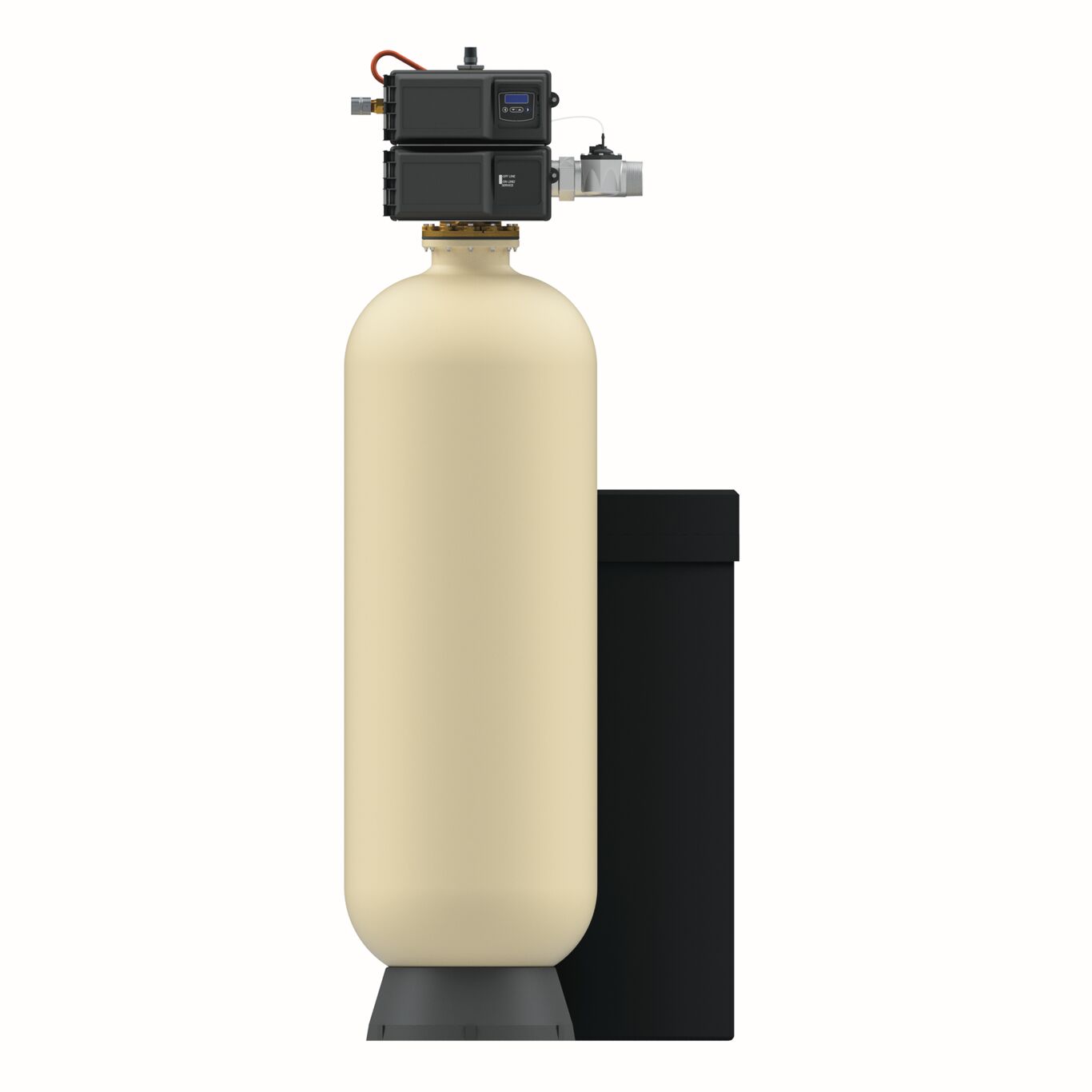

3 In Almond Mineral Hardness Removal Water Softening System 30 In

This simplex water softening system is a high efficient conventional cation exchange type water softener. It is designed for the point of use or point of entry applications where the benefits of softened water is required. The system has a 30 inch diameter mineral tank, contains 15 cubic feet of high capacity ion exchange resin, and has a peak flow rate of up to 212 gallons per minute. It has a 3 IN FNPT inlet and outlet and a 1 1/2 IN MNPT drain connection. This unit exchanges scale forming calcium and magnesium ions with non-scale forming sodium ions to create soft water for a variety of applications. This high quality system comes with a mineral tank, resin, and control valve that is NSF and ANSI certified. The corrosion resistant brass control valve is operated by an electronic controller that stores key operational history that can be accessed by the user. The system is metered demand initiated so regeneration only occurs when necessary which saves time, water, and salt.

Product Features

  • Corrosion resistant fiberglass mineral tank
  • Digital valve controller stores key operational history
  • High capacity blonde resin for reduced color throw
  • Durable brass body control valve
Additional Contaminants Removed Does Not Apply to Product
Backwash Flow Rate-GPM 25.00
Brand Name Watts
Brine Tank Color Black
Brine Tank Size 39 IN x 48 IN
By-Pass Type No By-Pass
Control Valve Location Top Mount
Control Valve Style Digital
Control Valve Type Metered
EANUCCCode 098268559194
Electrical Requirements 120 V
Fourth Media Type Does Not Apply To Product
Fourth Media Volume Does Not Apply To Product
Inlet Connection Size 3 IN
Inlet Connection Thread Type FPT
Inlet Connection Type Female Threaded
Lead Free YES
Maximum Softening Capacity-30K Grains/Cubic Ft 450.00
Mineral Tank Size 30 IN x 72 IN
Outlet Connection Size 3 IN
Outlet Connection Thread Type NPT
Outlet Connection Type Male Threaded
Part Number 7100046
Pounds Salt Per Regen-Maximum 225.00
Pounds Salt Per Regen-Minimum 90.00
Resin (cubic feet) 15.00
Salt Fill-Pounds 2200.00
Secondary Media Type Does Not Apply To Product
Secondary Media Volume Does Not Apply To Product
Series PWS30
Service Flow Rate-GPM-15PSI Drop 158.00
Service Flow Rate-GPM-25PSI Drop 212.00
Softener Application Commercial
Softener Type Simplex
Softening Capacity-Minimum-20KGrPerFT3 300.00
Tank Color Almond
Tank Type Fiberglass
Third Media Type Does Not Apply To Product
Third Media Volume Does Not Apply To Product
Valve Body Material Brass
