PWSRTA60K Watts

Part of the PWSRTA Series

Ordering Code: 7100685

UPC: 098268136265

Lead Free: YES

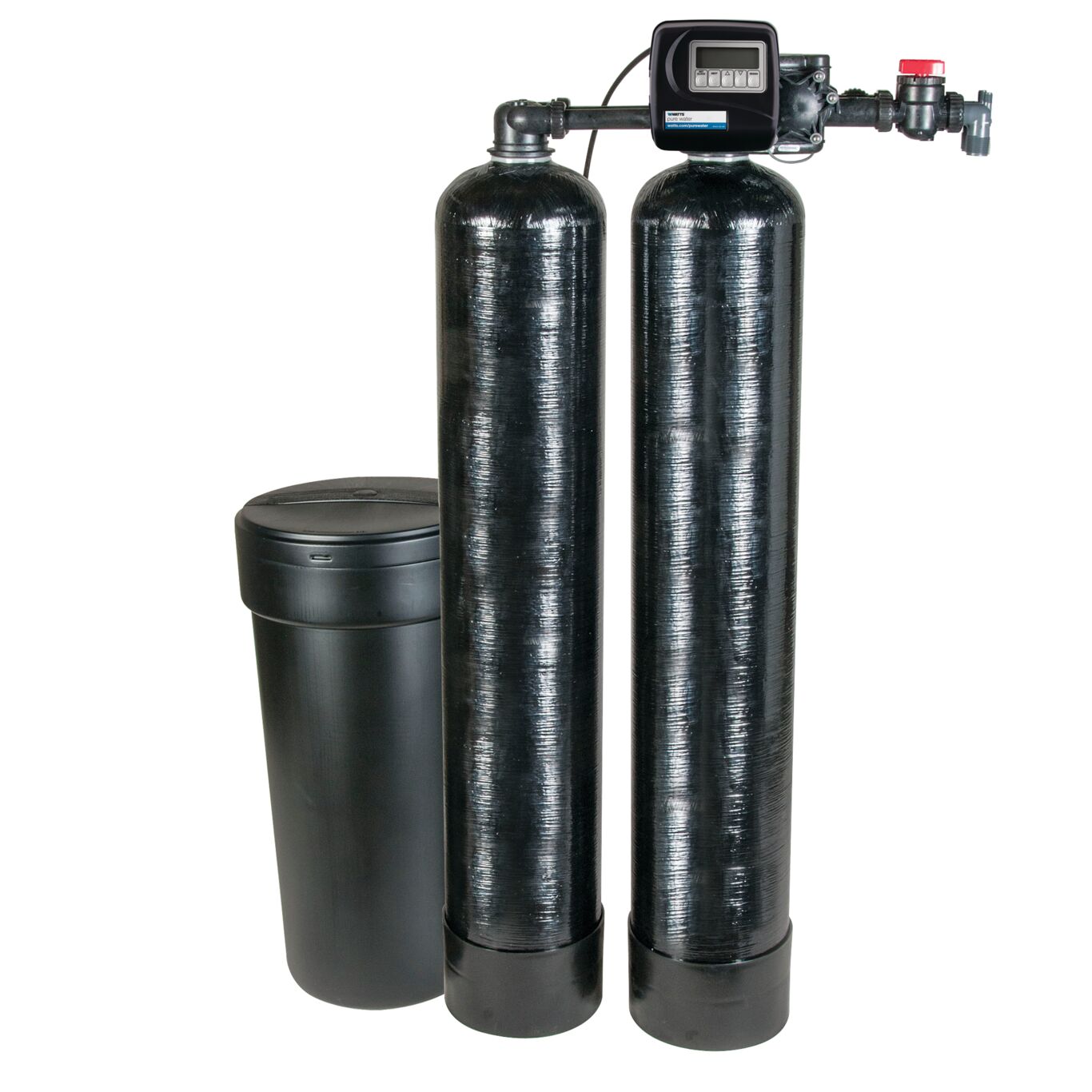

60,000 Pwsrta Twin Alternating Water Softener System

This 60k twin alternating water softener unit, model PWSRTA60K, is designed for residential and light industrial use applications. It features our PWSRTA control valve that offers twin-alternating meter initiated operation, resulting in 24/7 soft water capability. This unit uses components that are NSF 61 listed. The state-of-the-art computer programming increases efficiency and saves salt and water. The PWSRTA control valve is manufactured from high-tech materials and has been engineered and tested to perform in the most demanding environments. It has built a reputation of being one of the most reliable valve platforms in the industry. The exchange media is a high capacity cations polystyrene resin that combines high operating capacity with excellent chemical and physical stability for long dependable life. The resin tank features a non-corrosive fiberglass tank with a thermoplastic inner liner. The high-density polyethylene brine tank is a combination brine maker and salt storage vessel.

Product Features

  • Exchange media is a high capacity cations polystyrene resin that combines high operating capacity with excellent chemical and physical stability for long dependable life
  • Complete whole house water treatment reduces sediment and iron in addition to water softening
  • Our PWSRTA Valve is one of the most reliable valve platforms in the industry
  • Resin tank features a non-corrosive fiberglass tank with a thermoplastic inner liner, brine tank is a combination brine maker and salt storage vessel and is made of tough, corrosion free, high-density polyethylene
Specifications
Additional Contaminants Removed Does Not Apply to Product
Backwash Flow Rate-GPM 3.20
BrandName Watts
Brine Tank Color Black
Brine Tank Size 18 IN x 40 IN
By-Pass Type Plastic - Plastic Connection
Control Valve Location Top Mount
Control Valve Style Digital
Control Valve Type Metered
Electrical Requirements 110v
Fourth Media Type Does Not Apply To Product
Fourth Media Volume Does Not Apply To Product
Inlet Connection Size 1 IN
Inlet Connection Thread Type NPT
Inlet Connection Type Male Threaded
LeadFree YES
Mineral Tank Size 12 IN x 52 IN
ModelNumber PWSRTA60K
Outlet Connection Size 1 IN
Outlet Connection Thread Type NPT
Outlet Connection Type Male Threaded
Part Number 7100685
Pounds Salt Per Regen-Maximum 15.00
Pounds Salt Per Regen-Minimum 6.00
Resin-CubicFeet 4.00
Salt Fill-Pounds 400.00
Secondary Media Type Does Not Apply To Product
Secondary Media Volume Does Not Apply To Product
Series PWSRTA
Service Flow Rate-GPM-15PSI Drop 15.00
Service Flow Rate-GPM-25PSI Drop 15.00
Softener Application Residential
Softener Type Twin Alternating
Softening Capacity-Maximum-30KGrPerFT3 60000.00
Softening Capacity-Minimum-20KGrPerFT3 40000.00
Tank Color Black
Tank Type Fiberglass
Third Media Type Does Not Apply To Product
Third Media Volume Does Not Apply To Product
Valve Body Material Noryl
