PWM15121G10 Watts

Part of the PWM Series

Ordering Code: 7100005

UPC: 098268558562

Lead Free: YES

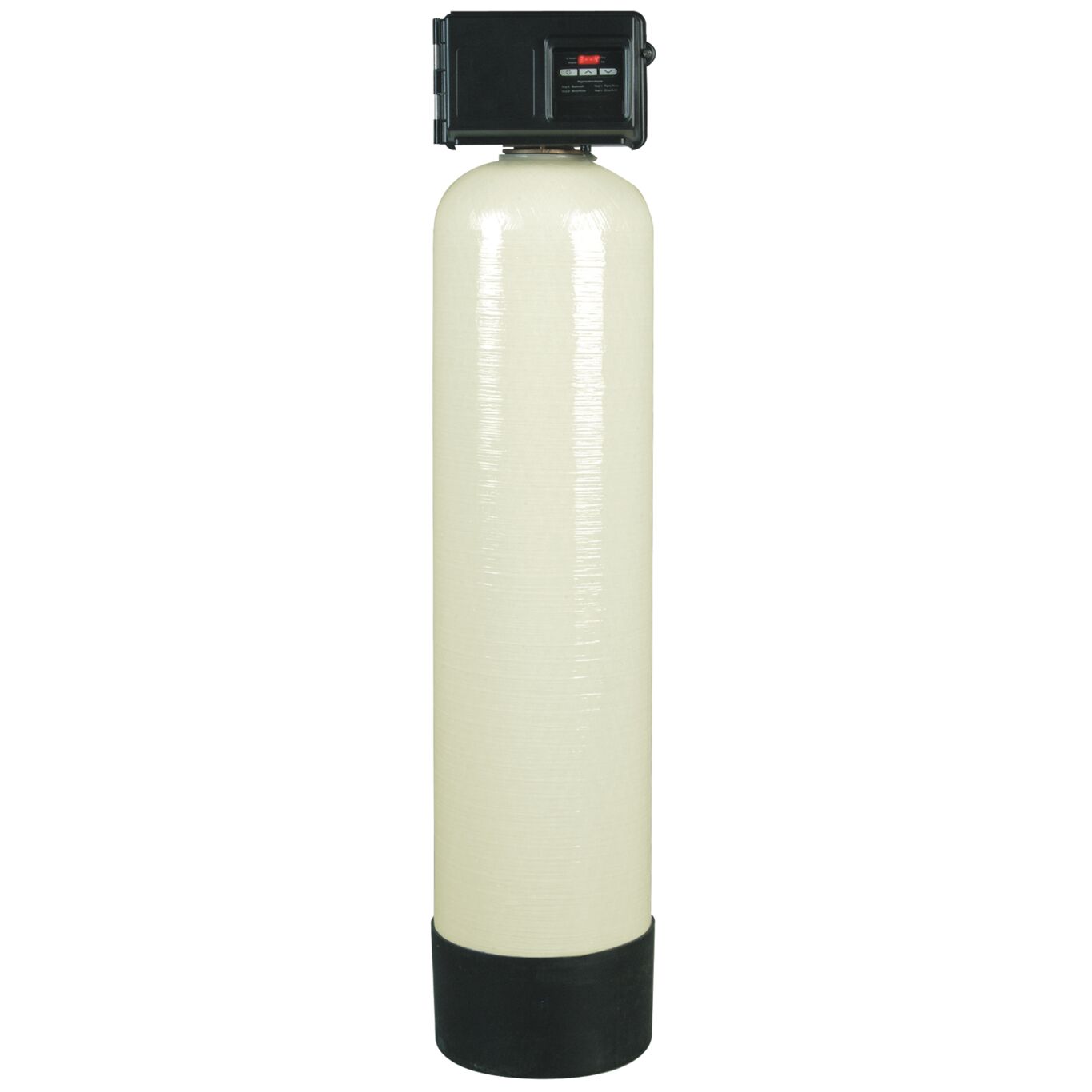

21 In Almond Sediment Removal Filtration System

This is a highly effective, automatic backwashing, media filtration system for the removal of sediment and suspended solids from the water. It is suitable for commercial applications with peak flow rates up to 48 gallons per minute and has a media bed size of 7 cubic feet. The mineral tank is constructed of corrosion resistant fiberglass reinforced plastic and has a 21 inch diameter. This system has a 1 1/2 IN FNPT inlet and outlet and a 1 1/2 IN MNPT drain connection. The workhorse of this system is its specialized sediment filtration media, which has a nominal particle size removal of 3-5 micron. This media along with the tank and system control valve are NSF and ANSI certified. The digital control valve stores key operational history and is constructed of durable brass. This system is designed for point of use or point of entry applications where filtered water is required.

Product Features

  • Durable brass body control valve
  • Corrosion resistant fiberglass mineral tank
  • Digital valve controller stores key operational history
  • Specialized filtration media with three micron nominal particle size removal
Specifications
Backwash Flow Rate-GPM 40.00
BrandName Watts
By-Pass Type Does Not Apply To Product
Control Valve Location Top Mount
Control Valve Style Digital
Control Valve Type Time Clock
Electrical Requirements 120 Volt AC 60 Hertz
Inlet Connection Size 1 1/2 IN
Inlet Connection Thread Type FPT
Inlet Connection Type Female Threaded
LeadFree YES
ModelNumber PWM15121G10
Outlet Connection Size 1 1/2 IN
Outlet Connection Thread Type FPT
Outlet Connection Type Female Threaded
Part Number 7100005
Series PWM
Tank Color Almond
Tank Type Fiberglass
Valve Body Material Brass
