28056

Part of the MCX Series

Ordering Code: 28056

UPC: 098268282399

MCX Online Monochloramine for Free or Total Chlorine 100-240 VAC 47-63Hz 150 VA

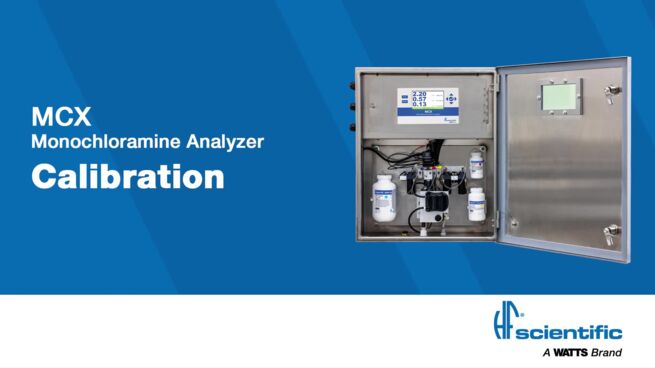

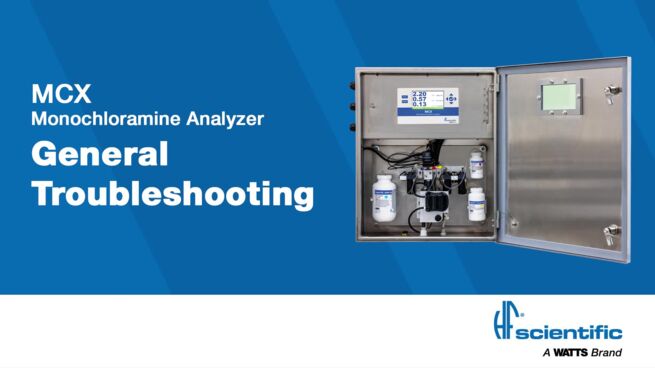

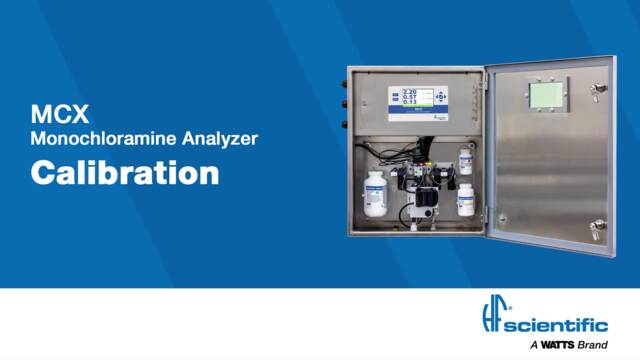

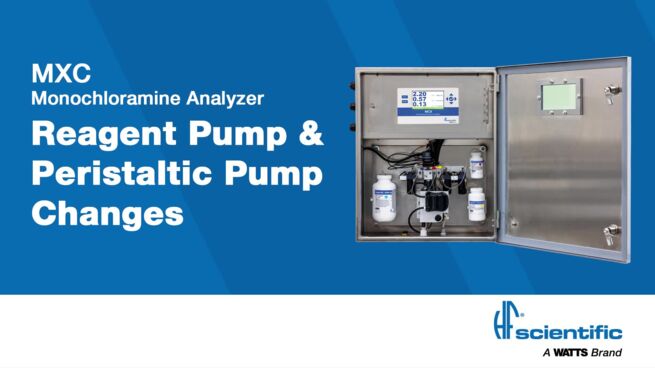

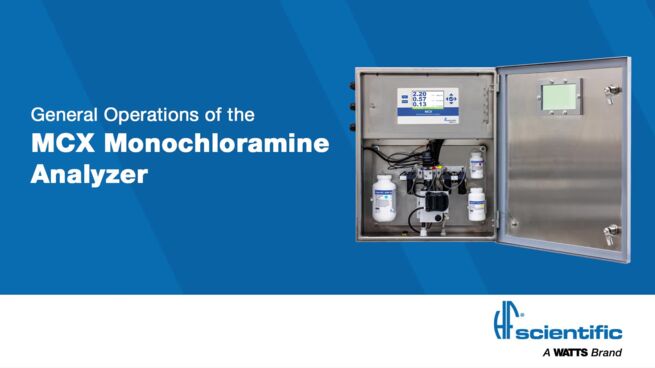

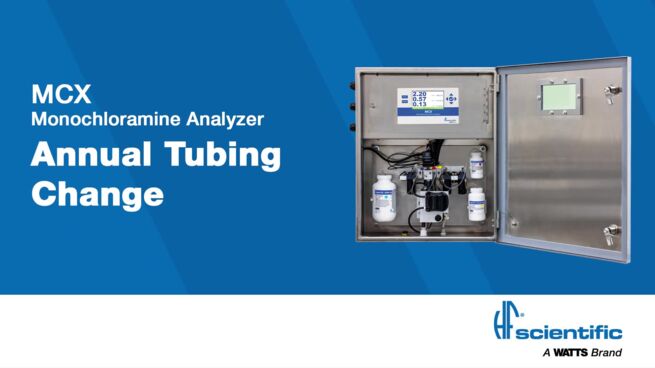

The MCX (Monochloramine Analyzer) measures and reports the concentration of monochloramine and total ammonia in water samples and calculates free ammonia over specified ranges. The analyzer uses the modified phenate method to test for monochloramine and ammonia. When a continuous process stream of water is flowing through the MCX, the instrument will take samples at preset intervals and display the readings. The data is made easily accessible with a built-in display/control screen, along with standard 4-20mA and Modbus RS-485 communication outputs.

Features

Accurately measures monochloramine (NH2CL-CL2) up to 10ppm and total ammonia (NH3-N) up to 2ppm
Calculates free ammonia (NH3-N) up to 2ppm
Manual and auto measurement modes with adjustable time between analyses
Downloadable readings and error logs can be transferred to an external micro USB
Simple fluidics

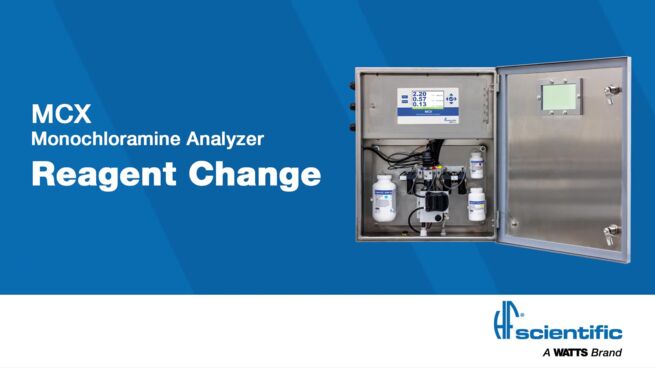

Replace reagents every 30 days for continuous operation
Compatible with a sequencer for multi-stream applications
CAN/CSA and UL certified

Specifications
Accuracy	± 5% or 0.01 ppm (as N) for 16 to 40°C (61 to 104°F); ±10% 0.02 ppm for 40 to 50°C (104 to 122°F), whichever is greater
Certifications	UL, CE, UKCA
Cycle Time	30 minutes
Enclosure	316L stainless steel
Input Pressure	124 kPa (18 psi) MAX
Method	Colorimetry
Operating Temperature	5 to 50°C (41 to 122°F)
Power	100 - 240 VAC, 50/60 Hz
Range	NH2Cl-Cl2 from 0 ppm to 10 ppm; NH3-N from 0 ppm to 2 ppm
Resolution	0.01 ppm
Shipping Dimensions	15.5 x 24 x 36
Shipping Weight	83.6 lbs
Standard Outputs	Three 4-20mA Outputs, 1000 ? drive, isolated
User Alarm	Two, not powered relays
