RCS-7300

RainCycle RCS-7000 series packages are stand-alone building-scale systems for collecting, storing, filtering, and treating roof-collected rainwater for non-potable end uses. This series integrates all the rainwater system functions in a single package.

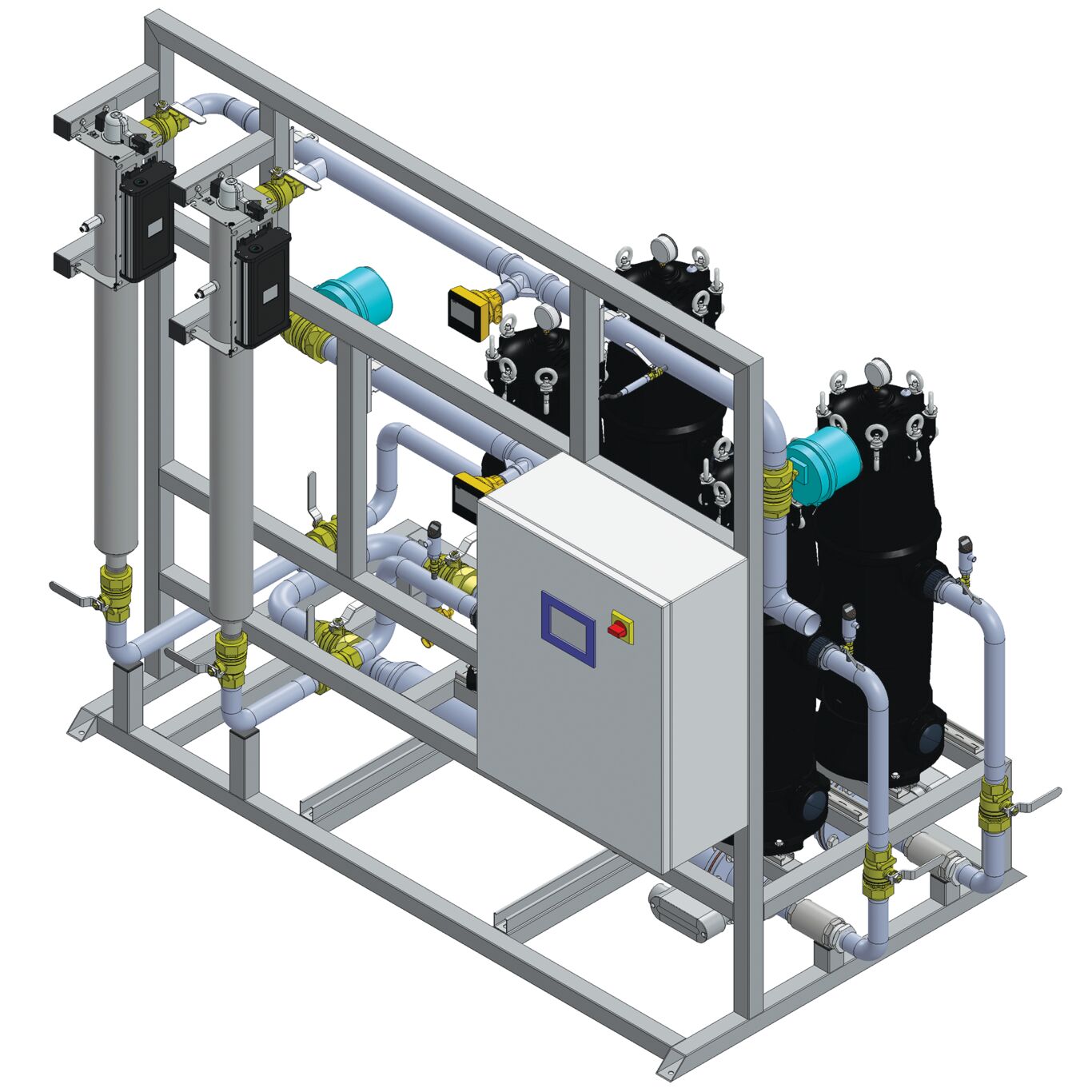

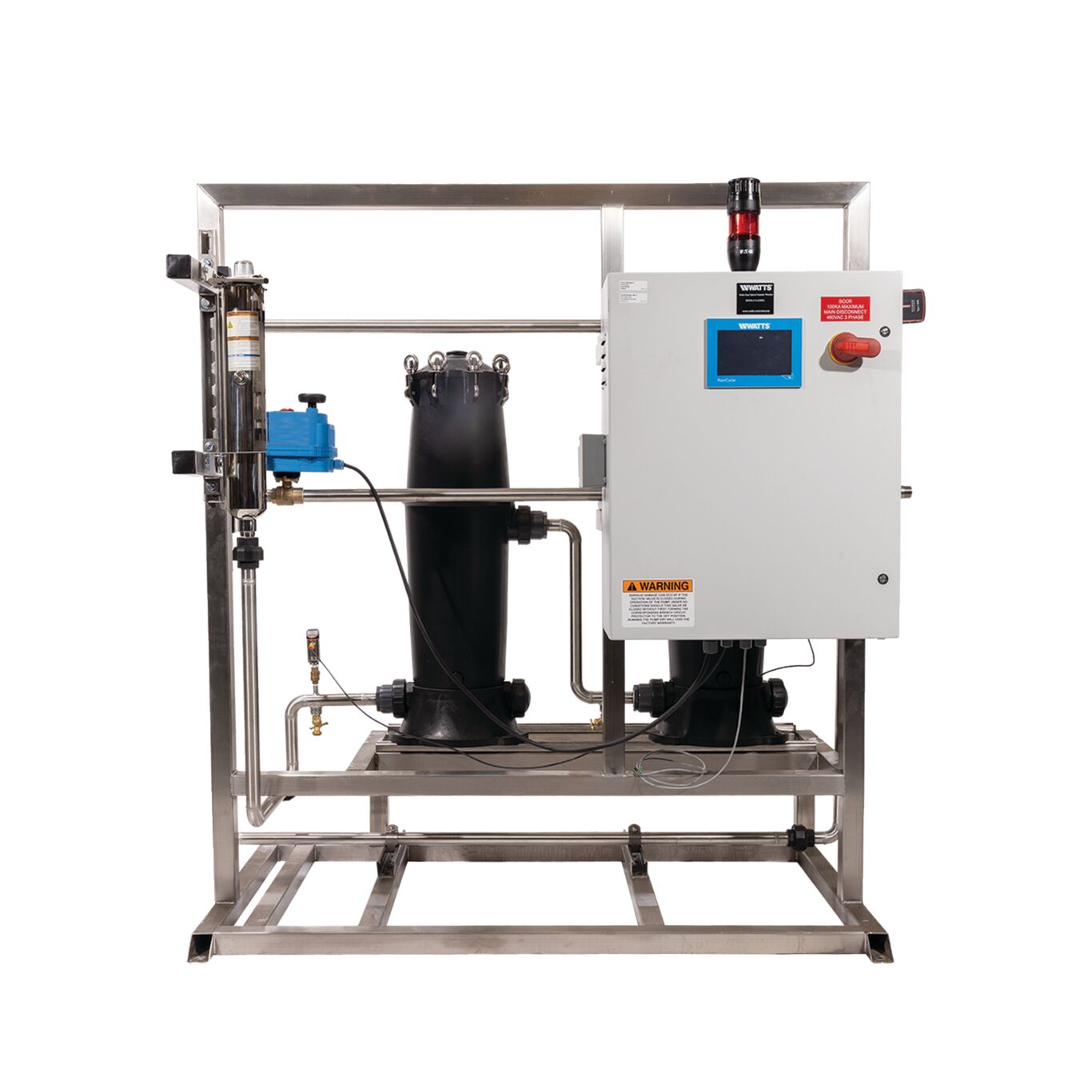

The RCS-7300 series captures, stores, filters, treats, and distrib­utes roof-collected rainwater. Rainwater flowing from a clean roof surface is routed to an inlet pre-filter and then to an above grade cistern. The pre-filter mitigates the intrusion of larger coarser material such as leaves and twigs. A submersible trans­fer pump, located in the cistern, transfers the rainwater through a filtration skid where it is temporarily stored in a buffer tank. A separate pump skid, located downstream of the buffer tank, boosts the filtered/treated water to the end use. In the event of low water levels in the cistern or a mechanical failure, a skid mounted pre-installed motorized makeup valve allows domestic water to flow into the buffer tank, making it available for distri­bution.

Exclusive Features:

1. A proprietary control algorithm allows the booster pumps to function without a hydropneumatic tank
2. Field adjustable pipe break detection technology is included in the controller to shutdown pumps during unusually high flow conditions which are indicative of a pipe break
3. Factory changes require rolling passwords. This allows only authorized users to make factory setting changes
