PWPL40M50

Part of the PWPL Series

Ordering Code: 7100406

UPC: 098268566260

Lead Free: YES

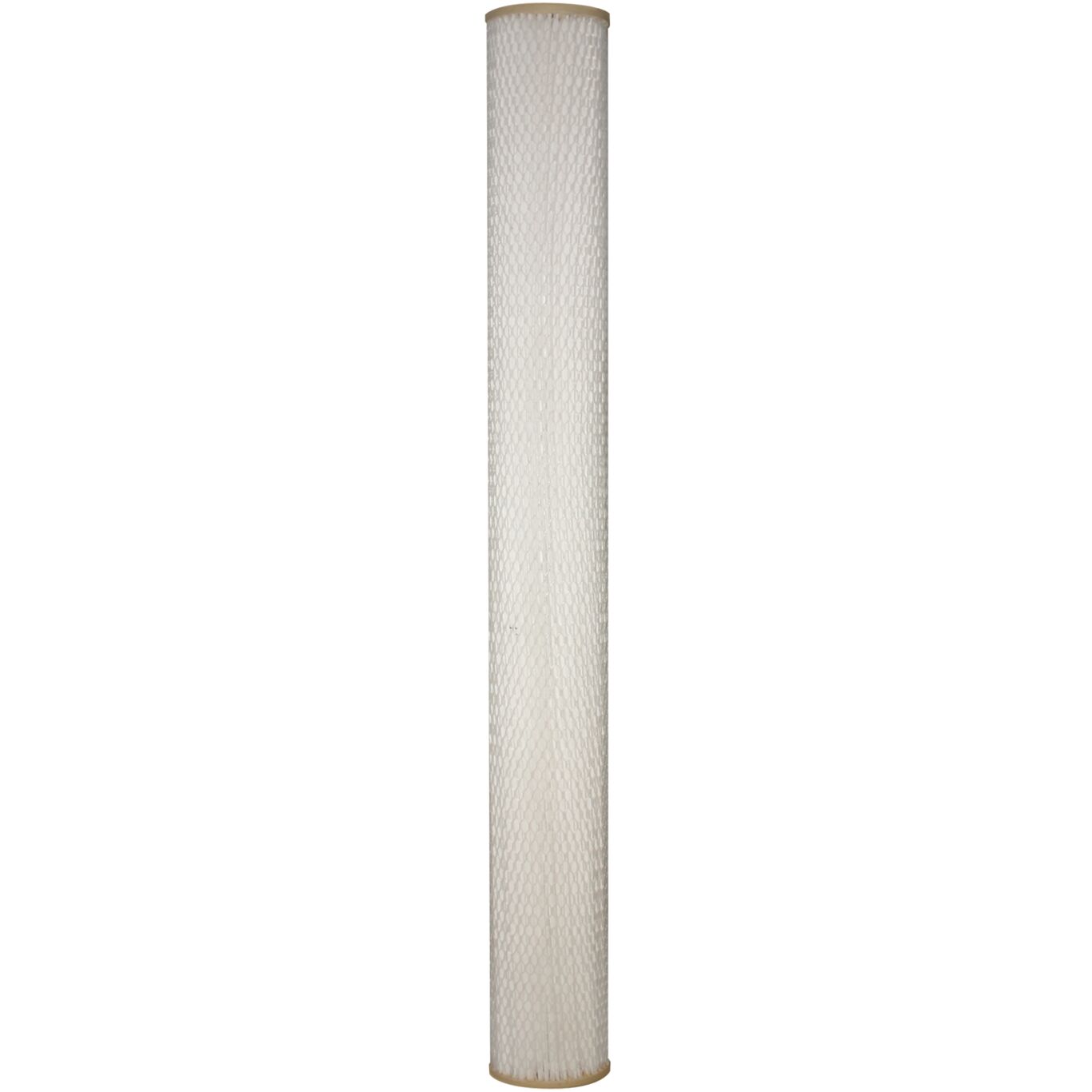

40 In 50 Micron Pleated Sediment Filter

This 40 inch 50 micron pleated sediment filter features a greater surface area than a wound, spun or melt blown filter. Its lower pressure drop allows for increased flow rates and the use of a smaller filter housings to reduce capital equipment costs. The synthetic filter media is cellulose-free and contains no additives or binders which may cause foaming. The increased dirt holding capacity with longer life and fewer cartridge replacements reduces the filtration costs compared to other pleated cartridge suppliers. The thicker filter media has a greater capacity to capture and retain the particles compared to thin, more rigid media types which have less void space for particle retention. The temperature range is from 40 F to 140 F (4.4 C to 60 C) and the maximum water pressure is 40 PSI.

Product Features

  • Cellulose-free synthetic filter media
  • 50 Microns filtration rating
  • Rated for temperatures up to 140 degrees F
  • Collects particles throughout the entire thickness of the filter
Specifications
BrandName Watts
Chlorine Reduction No
End Cap Style DOE
Filter Size 2.75 IN x 40 IN
Filter Type Pleated
LeadFree YES
Maximum Capacity-Gallons 0.00
Maximum Flow Rate-GPM 40.00
Maximum Temperature-Fahrenheit 140
Micron Rating-Nominal 50.00
Minimum Temperature-Fahrenheit 40
ModelNumber PWPL40M50
Part Number 7100406
Series PWPL
