PWHIB10FF

Part of the PWHIB Series

Ordering Code: 7100268

UPC: 098268564396

Lead Free: YES

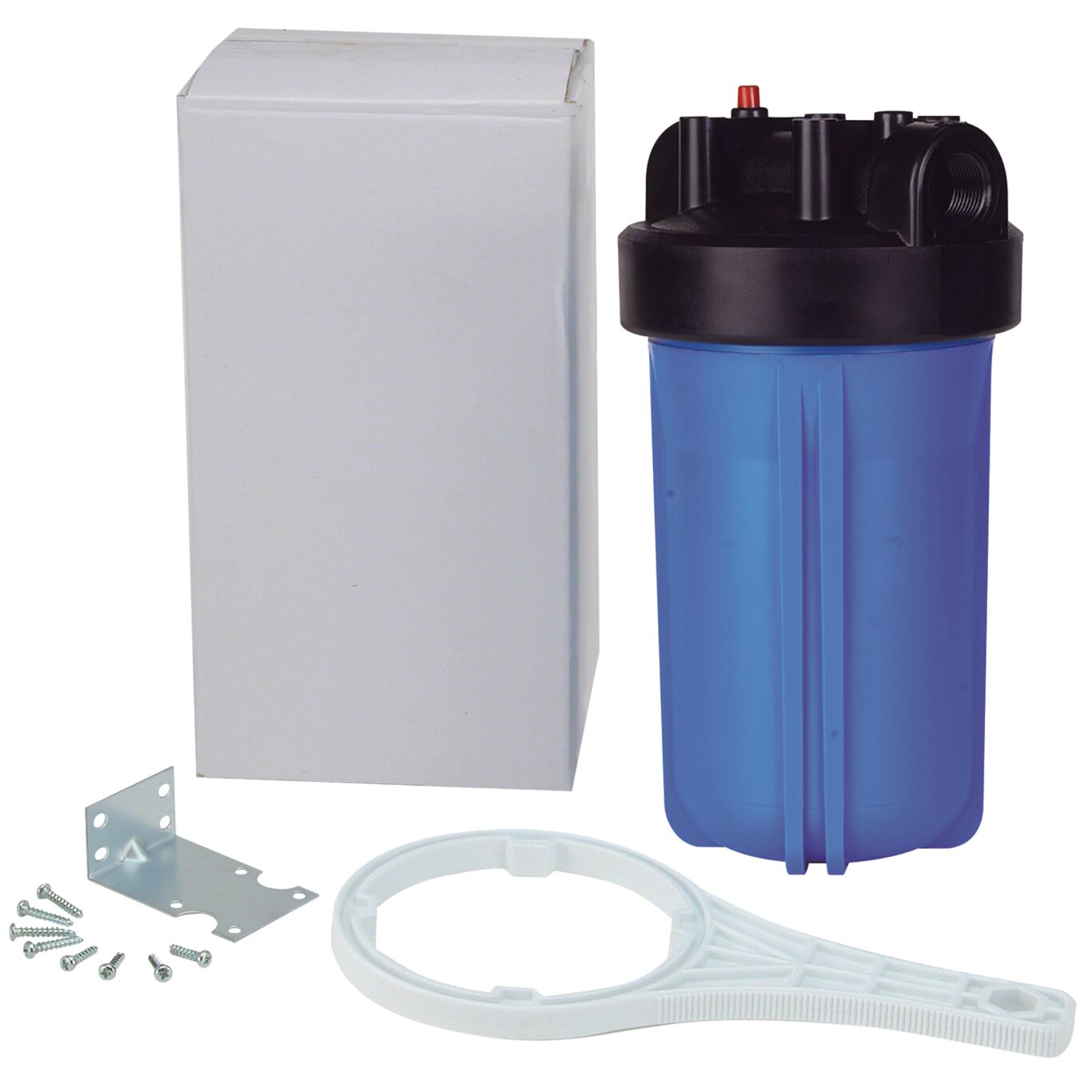

10 In Full Flow Housing Kit With Pressure Relief

This 10 inch complete filter housing kit is designed for the Full Flow housing. It includes the housing with a pressure relief lid, wrench, single mounting bracket and all the mounting screws.

Product Features

  • Includes pressure relief valve
  • 1 IN Port connection
  • Blue housing with black lid
  • 10 Inches long
Specifications
BrandName Watts
Cap Color Black
High Temperature No
Housing Finish Smooth Plastic
Housing Material Polypropylene
Inlet Connection Size 1 IN
Inlet Connection Thread Type NPT
Inlet Connection Type Female Threaded
LeadFree YES
Lid Closure Type Screw-twist
Maximum Temperature-Fahrenheit 100
Minimum Temperature-Fahrenheit 40
ModelNumber PWHIB10FF
O-ring Material EPDM
Outlet Connection Size 1 IN
Outlet Connection Thread Type NPT
Outlet Connection Type Female Threaded
Part Number 7100268
Pressure Drop 0.6 to 1 PSI based on the micron
Pressure Rating-BAR 6.21
Pressure Rating-PSI 90
Pressure Relief Yes
Series PWHIB
Sump Color Blue
