PWHIB20FF
×
![]()
Part of the PWHIB Series
Sales Channel: Wholesale
Ordering Code: 7100269
UPC: 098268564402
Lead Free: YES

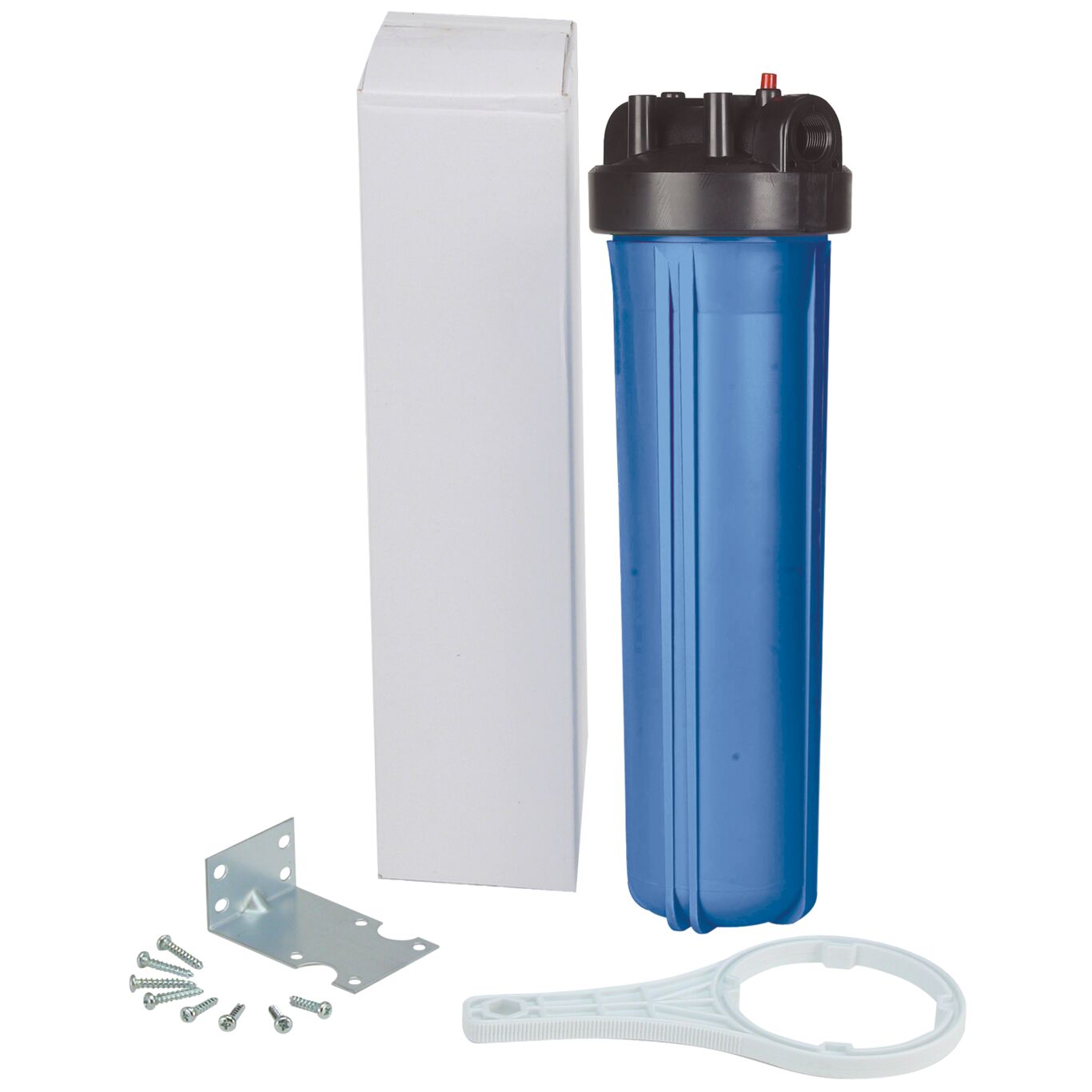

20 In Full Flow Housing Kit With Pressure Relief
This 20 inch complete filter housing kit is designed for the Full Flow housing. It includes the housing with a pressure relief lid, wrench, single mounting bracket and all the mounting screws.
Features
- 20 Inches long
- Blue housing with black lid
- Includes pressure relief valve
- 1 IN Port connection
| Specifications | |
|---|---|
| Brand | Watts |
| Buy American Act Compliant | NO |
| Cap Color | Black |
| CAProp65-DevelopRiskSubstance | n-Hexane |
| CAProp65-InScope | Yes |
| EAN | 098268564402 |
| GDS Status | Registered |
| High Temperature | No |
| Housing Finish | Smooth Plastic |
| Housing Material | Polypropylene |
| Inlet Connection Size | 1 IN |
| Inlet Connection Thread Type | NPT |
| Inlet Connection Type | Female Threaded |
| Lead Free | YES |
| Lid Closure Type | Screw-twist |
| Maximum Temperature-Fahrenheit | 100 |
| Minimum Temperature-Fahrenheit | 40 |
| O-ring Material | EPDM |
| Outlet Connection Size | 1 IN |
| Outlet Connection Thread Type | NPT |
| Outlet Connection Type | Female Threaded |
| Part Number | 7100269 |
| Pressure Drop | 0.6 to 1 PSI based on the micron |
| Pressure Rating-BAR | 6.21 |
| Pressure Rating-PSI | 90 |
| Pressure Relief | Yes |
| Series | PWHIB |
| Sump Color | Blue |
