PWHPHT1034
×
![]()
Part of the PWHP HIGH TEMP Series
Sales Channel: Wholesale
Ordering Code: 7100296
UPC: 098268564822
Lead Free: YES

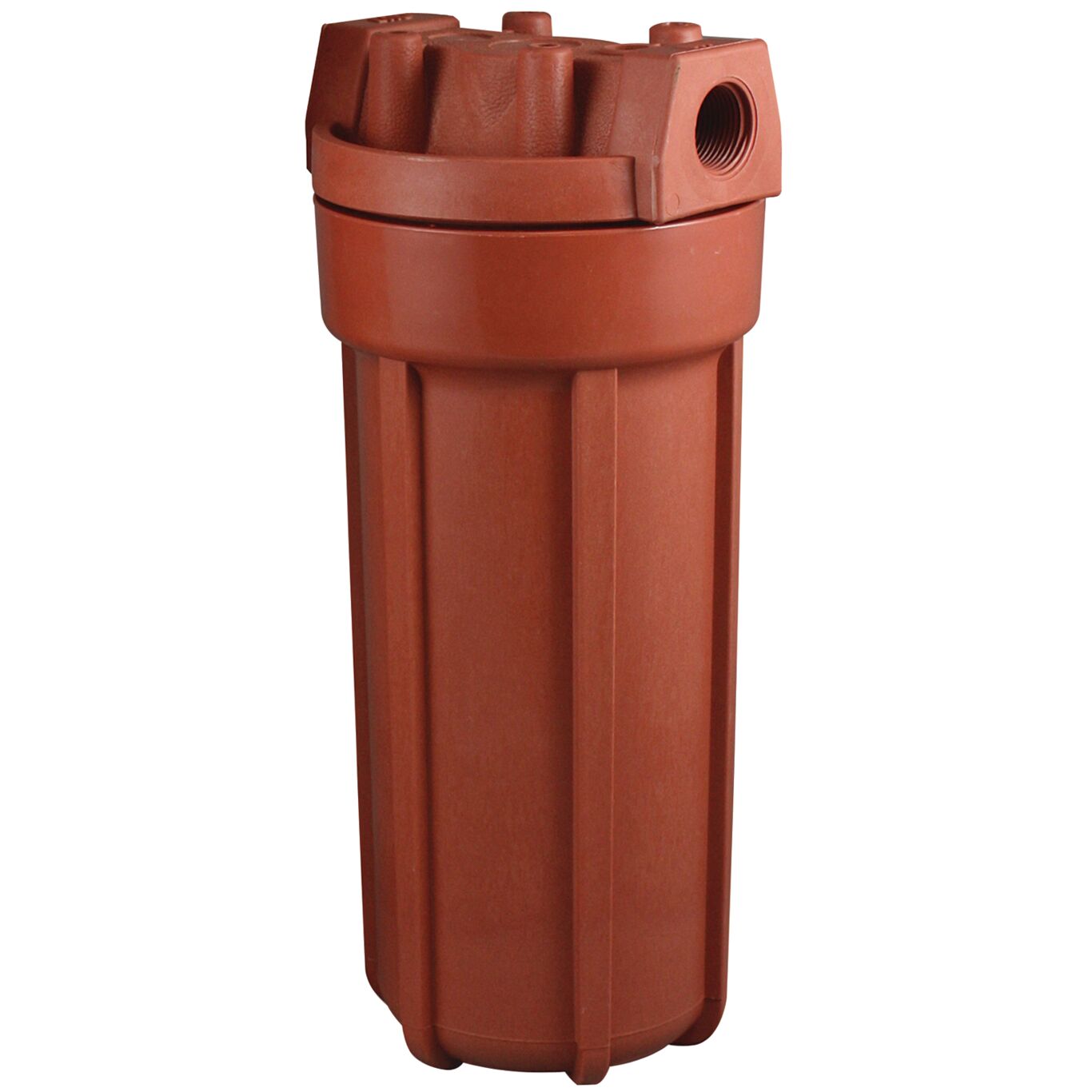

10 In Hi-Temp Red Housing
This 10 inch hi-temp red housing with a red cap accepts slim-line filters. The housing cap features a 3/4 inch NPT pipe size connection. A leak-proof sealing is accomplished by compression against a top seated EPDM O-ring located in the housing's sump. The heavy duty construction is made using high quality FDA grade polypropylene. It has a superior chemical resistance from many aggressive chemicals. The thick side walls and buttress thread design allows for superior sealing and security. It is rated at temperatures up to 200 F (93 C). The water pressure is rated up to 125 psi (8.75 bar).
- 10 Inches long
- Designed for hi-temp applications up to 200 degrees Fahrenheit
- Superior resistance from many aggressive chemicals
- 3/4 IN Port connection
| Specifications | |
|---|---|
| Brand | Watts |
| Buy American Act Compliant | NO |
| Cap Color | Red |
| CAProp65-InScope | No |
| EAN | 098268564822 |
| High Temperature | Yes |
| Housing Finish | Smooth Plastic |
| Housing Material | Polypropylene |
| Inlet Connection Size | 3/4 IN |
| Inlet Connection Thread Type | FPT |
| Lead Free | YES |
| Lid Closure Type | Screw-twist |
| Maximum Temperature-Fahrenheit | 200 |
| Minimum Temperature-Fahrenheit | 40 |
| O-ring Material | EPDM |
| Outlet Connection Size | 3/4 IN |
| Outlet Connection Thread Type | FPT |
| Part Number | 7100296 |
| Pressure Drop | 0.6 to 1 PSI based on the micron |
| Pressure Rating-BAR | 6.90 |
| Pressure Rating-PSI | 100 |
| Pressure Relief | No |
| Series | PWHP HIGH TEMP |
| Sump Color | Red |
