PWHP512W
Part of the PWHP Series
Sales Channel: Wholesale
Ordering Code: 7100589
UPC: 098268085310
Lead Free: YES

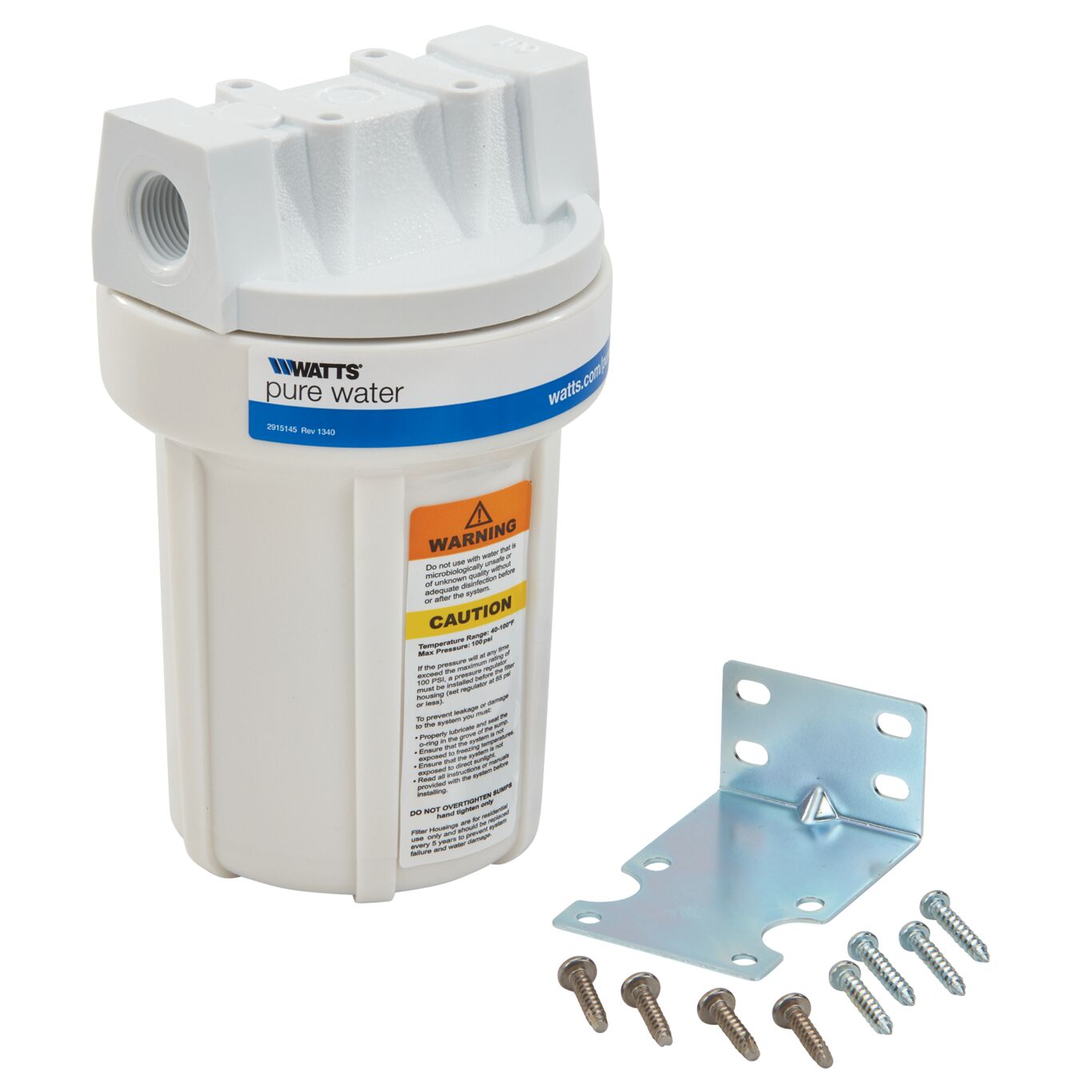

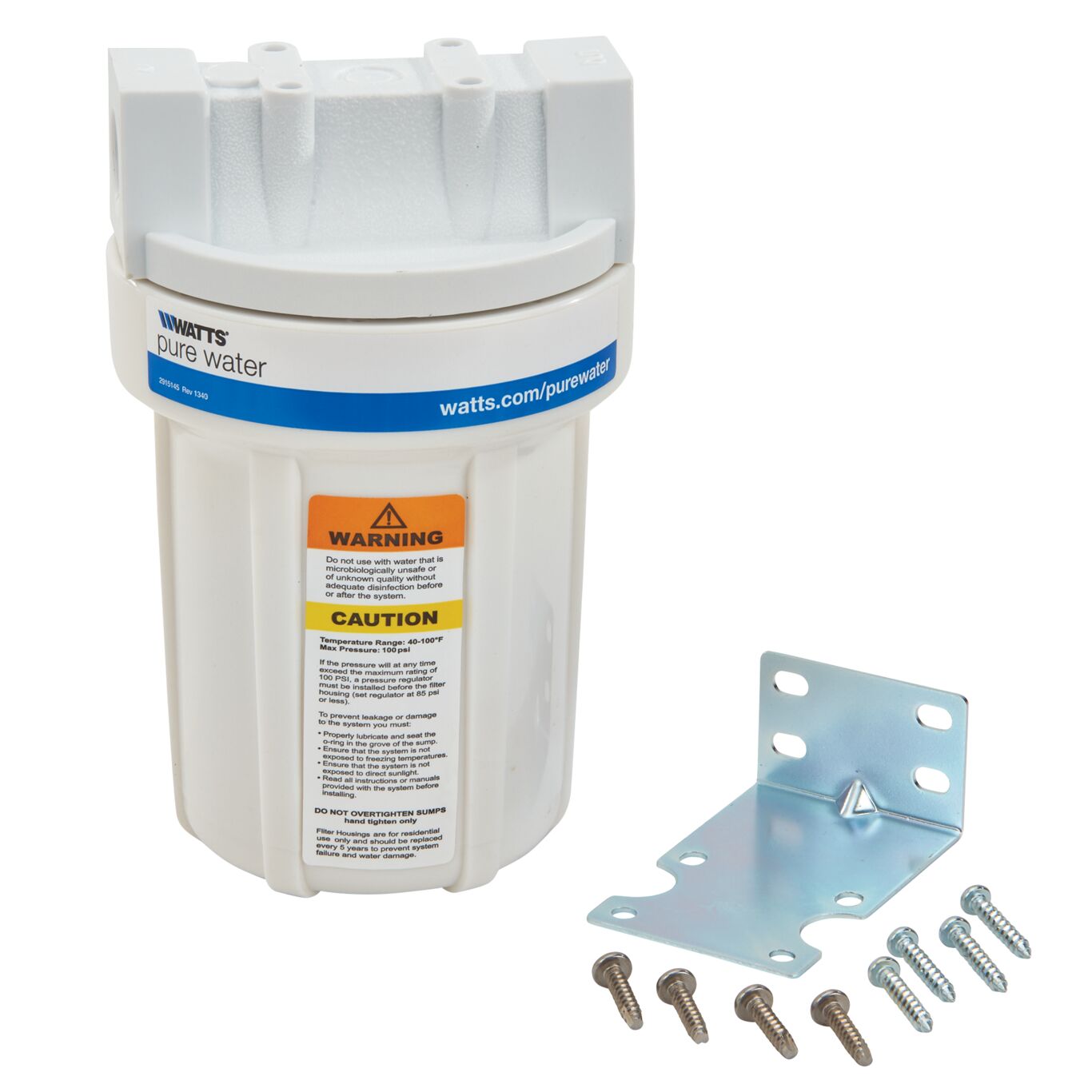

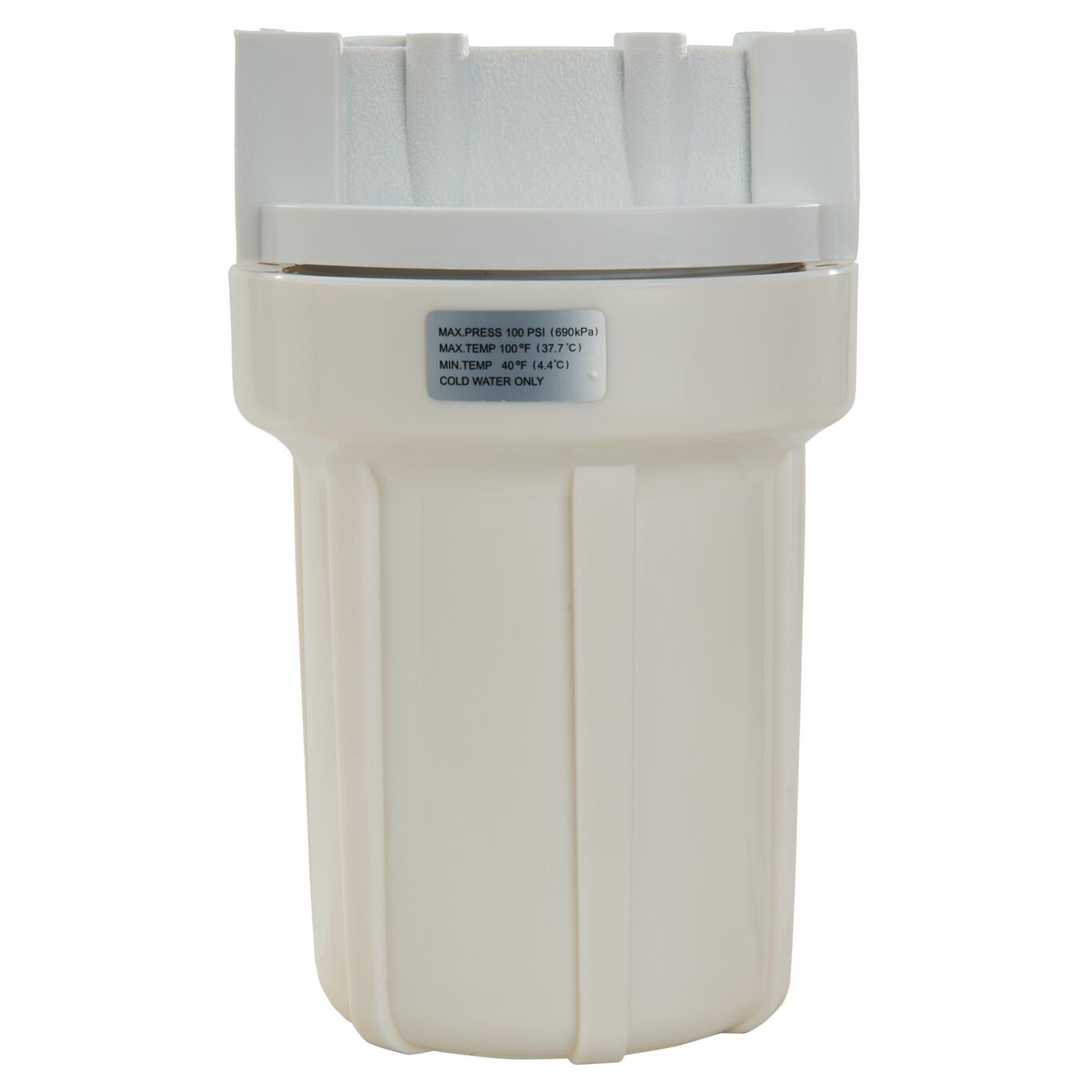

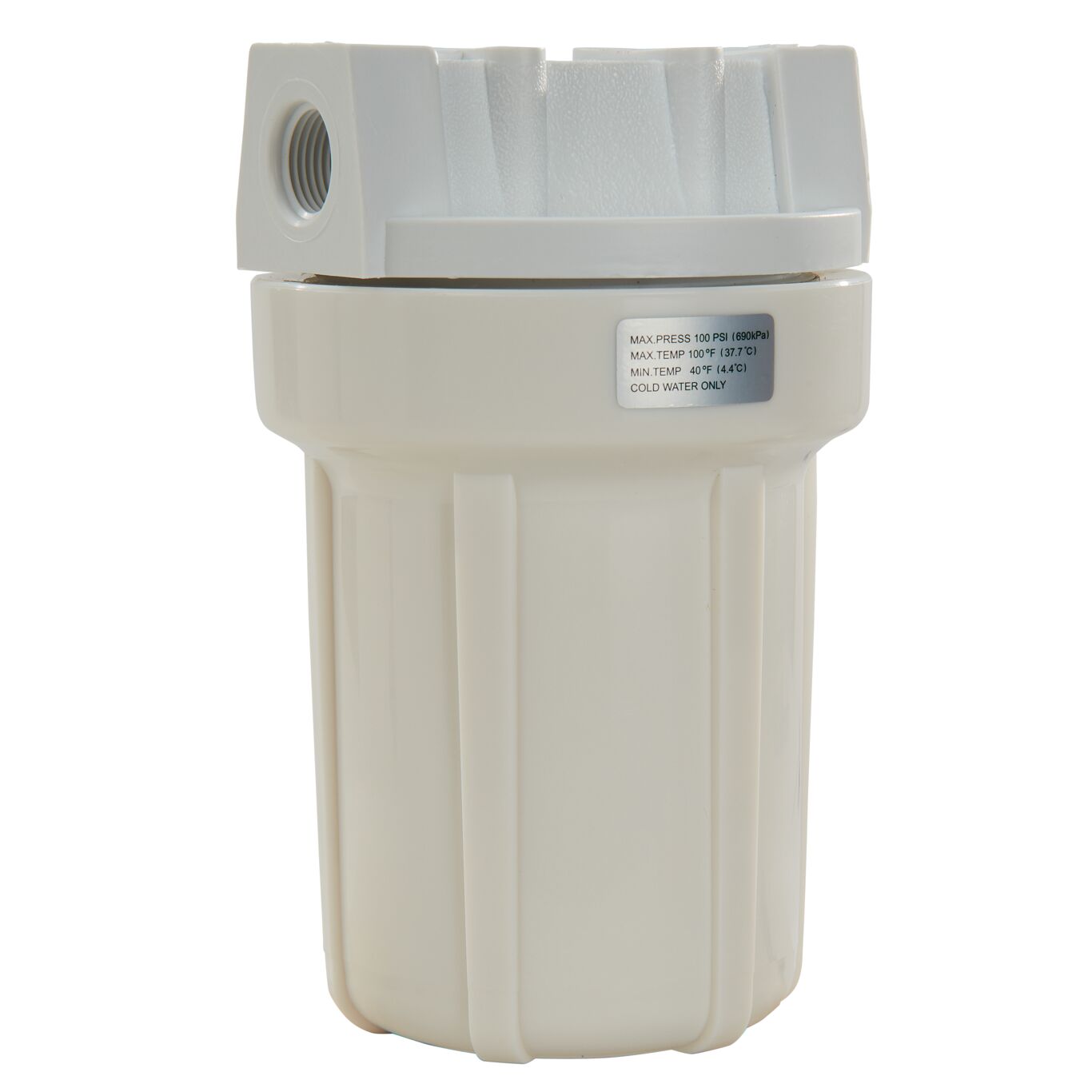

5 IN White Housing and White Cap with 1/2 IN Port
This 5 inch white housing with a white cap accepts slim-line filters. The housing cap features a 1/2 inch NPT pipe size and is made of a heavy duty construction using high quality FDA grade polypropylene. It has superior chemical resistance from many aggressive chemicals. The housing lid features a buttress thread design for superior sealing and security. The thick side walls are made with heavy-duty ribs to provide greater strength. It is rated at temperatures up to 125 degrees F (52 degrees C) and the water pressure is rated up to 125 psi (8.75 bar). The cap, sump and top-seated O-rings are compressed to provide leak proof sealing.
Features
- 7.5 Inches long
- Thick side walls
- Superior resistance from many aggressive chemicals
- 1/2 IN Port connection
| Specifications | |
|---|---|
| Brand | Watts |
| Buy American Act Compliant | NO |
| Cap Color | White |
| CAProp65-InScope | No |
| EAN | 098268085310 |
| High Temperature | No |
| Housing Finish | Smooth Plastic |
| Housing Material | Polypropylene |
| Inlet Connection Size | 1/2 IN |
| Inlet Connection Thread Type | FPT |
| Inlet Connection Type | Female Threaded |
| Lead Free | YES |
| Lid Closure Type | Screw-twist |
| Maximum Pressure-PSI | 125 |
| Maximum Temperature-Fahrenheit | 100 |
| Minimum Temperature-Fahrenheit | 40 |
| O-ring Material | EPDM |
| Outlet Connection Size | 1/2 IN |
| Outlet Connection Thread Type | FPT |
| Outlet Connection Type | Female Threaded |
| Part Number | 7100589 |
| Pressure Drop | 0.6 to 1 PSI based on the micron |
| Pressure Rating-BAR | 6.90 |
| Pressure Rating-PSI | 100 |
| Pressure Relief | No |
| Series | PWHP |
| Sump Color | White |
