Part of the PWHS Series

Sales Channel: Wholesale

Ordering Code: 7100318

UPC: 098268565140

Lead Free: YES

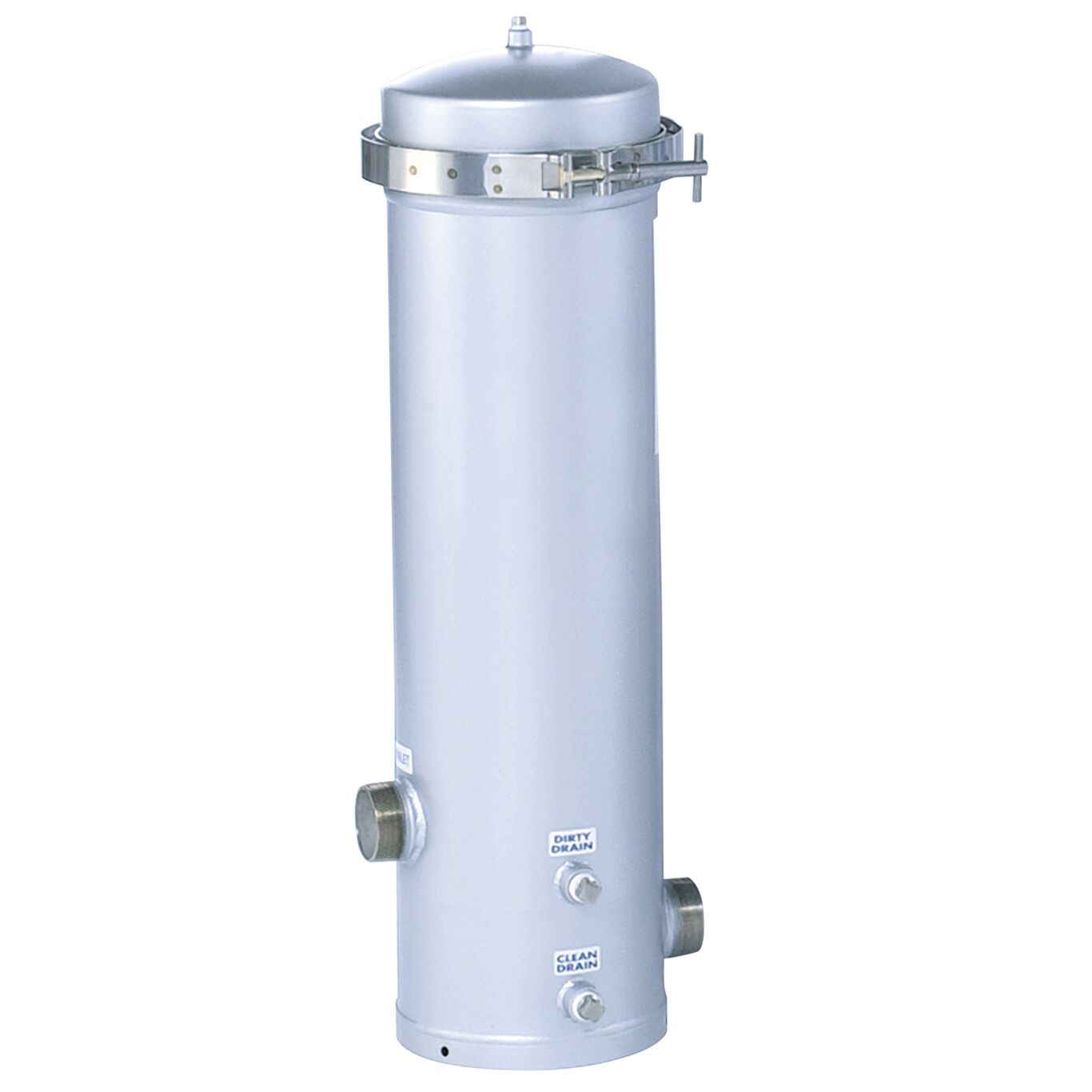

40 In 5 Multi-Cartridge Housing

This 40 inch commercial and industrial 5 multi-cartridge housing is made of 100 percent stainless steel. The convenient band clamp lid closure is standard for an easy cartridge replacement. The pipe fittings are readily accessible for easy installation. The adjustable top plate accepts variable length cartridges for more options. The two drains are provided for clean and dirty fluids. The knife edge seals are provided at both ends of all DOE cartridges for superior performance. The protective poly-coat over stainless steel is the standard finish. It is rated for temperatures up to 250 F (no plastic holding rods) and the water pressure rating is up to 150 psi.

Product Features

  • Adjustable top plate
  • 5 Cartridge capacity
  • Band clamp lid closure
  • Stainless steel construction
Brand Name Watts
Cap Color Does Not Apply To Product
EANUCCCode 098268565140
Housing Material 316 Stainless Steel
Inlet Connection Size 2 IN
Inlet Connection Thread Type NPT
Lead Free YES
Lid Closure Type Band-clamp
Maximum Flow Rate-GPM 150.00
Maximum Pressure-PSI 150
Maximum Temperature-Fahrenheit 140
Minimum Temperature-Fahrenheit 40
Number Of Cartridges 5
Outlet Connection Size 2 IN
Outlet Connection Thread Type NPT
Part Number 7100318
Pressure Relief Yes
Series PWHS
