PWHSPS5X3

Part of the PWHS Series

Ordering Code: 7100324

UPC: 098268565201

Lead Free: YES

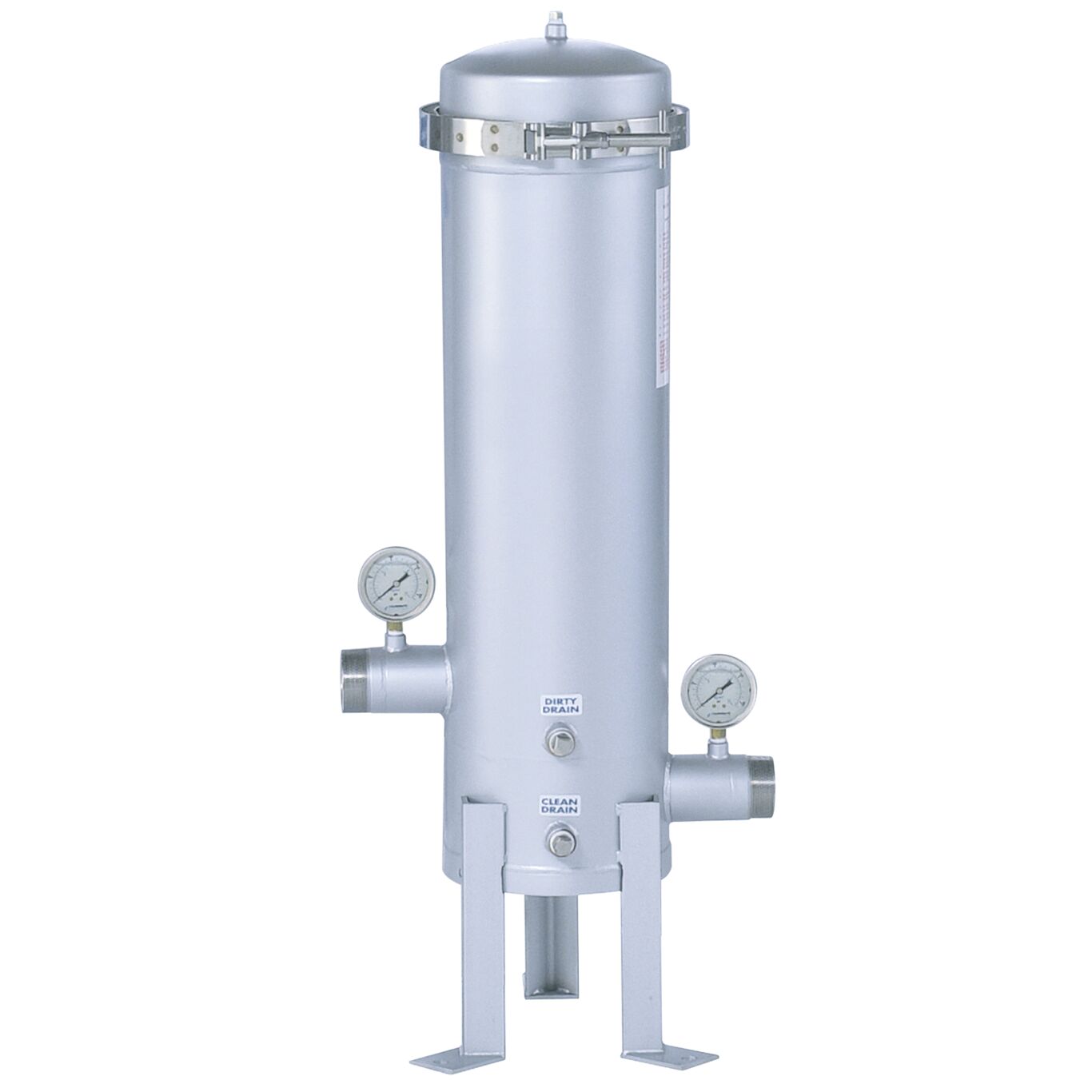

30 In 5 Multi-Cartridge Premium Housing

This premium 30 inch commercial and industrial 5 multi-cartridge housing is made of 100 percent stainless steel. The convenient band clamp lid closure is standard for an easy cartridge replacement. The pipe fittings are readily accessible for easy installation. The adjustable top plate accepts variable length cartridges for more options. The two drains are provided for clean and dirty fluids. The knife edge seals are provided at both ends of all DOE cartridges for superior performance. It is rated for temperatures up to 250 F (no plastic holding rods) and the pressure rating is up to 150 PSI. The protective poly-coat over stainless steel is the standard finish. This premium model includes a high quality pressure gauge that helps determine the efficiency of the unit when the pressure drops.

Product Features

  • Band clamp lid closure
  • Stainless steel construction
  • 5 Cartridge capacity
  • High quality built-in pressure gauges
Specifications
BrandName Watts
Cap Color Does Not Apply To Product
Housing Material 316 Stainless Steel
Inlet Connection Size 2 IN
Inlet Connection Thread Type NPT
LeadFree YES
Lid Closure Type Band-clamp
Maximum Pressure-PSI 150
Maximum Temperature-Fahrenheit 140
Minimum Temperature-Fahrenheit 40
ModelNumber PWHSPS5X3
Outlet Connection Size 2 IN
Outlet Connection Thread Type NPT
Part Number 7100324
Pressure Relief Yes
Series PWHS
