RD-204-K

Part of the RD-200 Series

Ordering Code: RD-204-K

UPC: 098268047516

Lead Free: Not In Scope

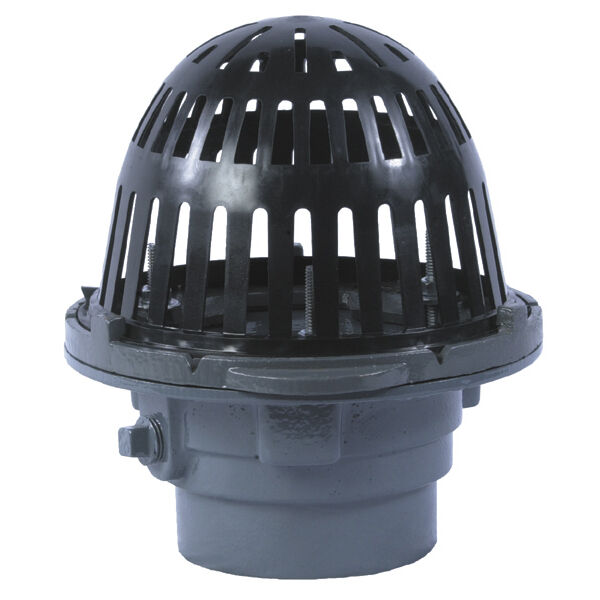

Small Area Roof Drain, Epoxy Coated Cast Iron, Flashing Clamp, Integral Gravel Stop, Self-Locking Ductile iron Dome, NH 4 IN Out

This 8 inch round, epoxy-coated cast iron, small area roof drain features a flashing clamp with integral gravel stop, a self-locking ductile iron dome, a 4 inch no hub outlet, 35 square inch free area and can be purchased BAA compliant. Galvanized body, flow restrictor, sump receiver, underdeck clamp, deck flange with adjustable extension, and various dome materials are among the other options available.

Product Features

  • Cast iron
  • Flashing clamp
  • Self-locking dome
  • 4 inch no hub
Specifications
Body Material Cast Iron
Brand Name Watts
DomeType Ductile Iron
FreeArea 35 IN
Lead Free Not In Scope
Outlet Connection Size 4 IN
Outlet Connection Type No Hub
OverflowDome No
OverflowDrain Does Not Apply To Product
