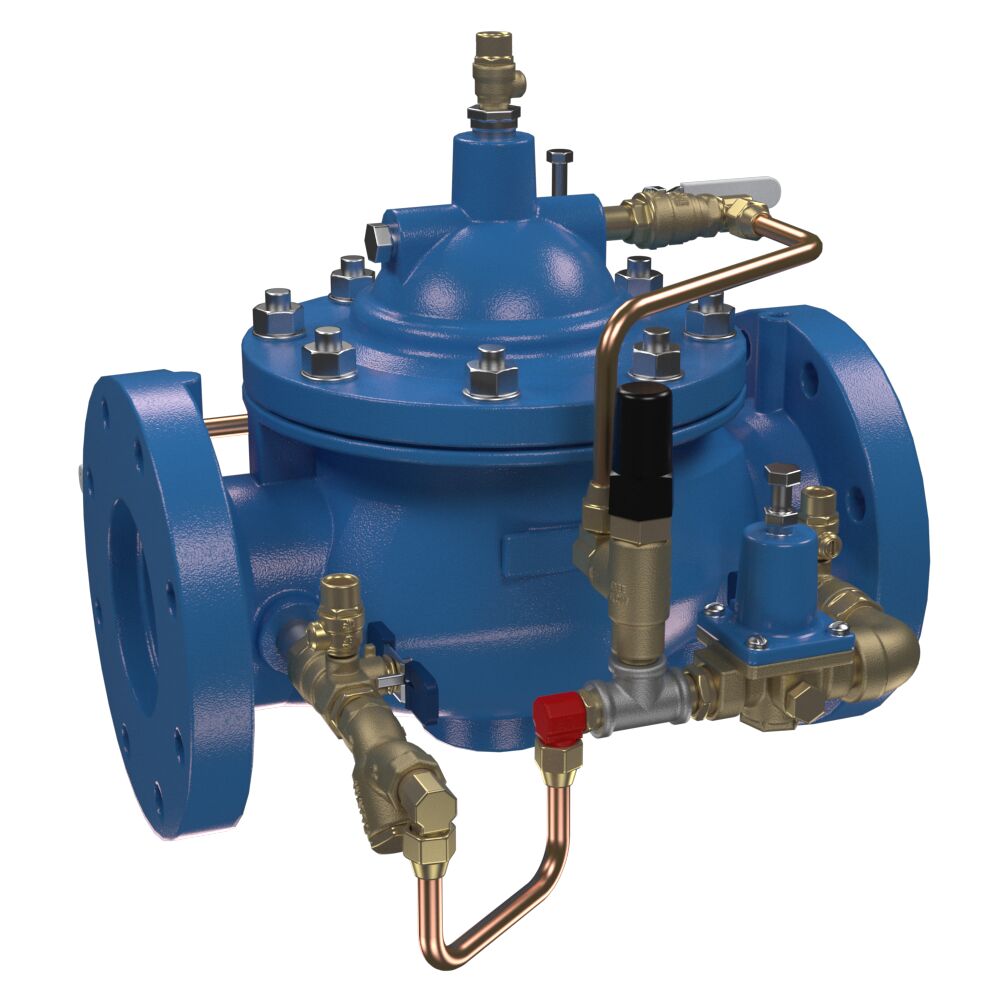

LFF115-74

Pressure Reducing Control Valve with Low Flow By-Pass

LFF115-74

Pressure Reducing Control Valve with Low Flow By-Pass

Features

Body construction with patented 3-part ArmorTek epoxy coating for advanced corrosion resistance
Reduces a fluctuating higher upstream pressure to a constant lower downstream pressure
Low flow by-pass pressure reducing valve handles flow requirements below the normal range of the main line
Body and cover are constructed of strong and durable ductile iron (ASTM A536)
Simplified and efficient design is easy and economical to maintain
Integrates with the Sensor Control Monitor to deliver maintenance alerts to BAS via RS-485 Modbus or the Nexa platform by Wi-Fi connectivity

View More

Nexa pairs integrated sensing hardware with free, upgradable software to empower facilities with unprecedented visibility and control over their water systems, helping teams protect assets, deliver consistent performance, and drive measurable ROI.
Learn more about Nexa

Jump to Section

Detail
Resources
Videos
Models
Kits & Accessories
CAD Files

View Warranty

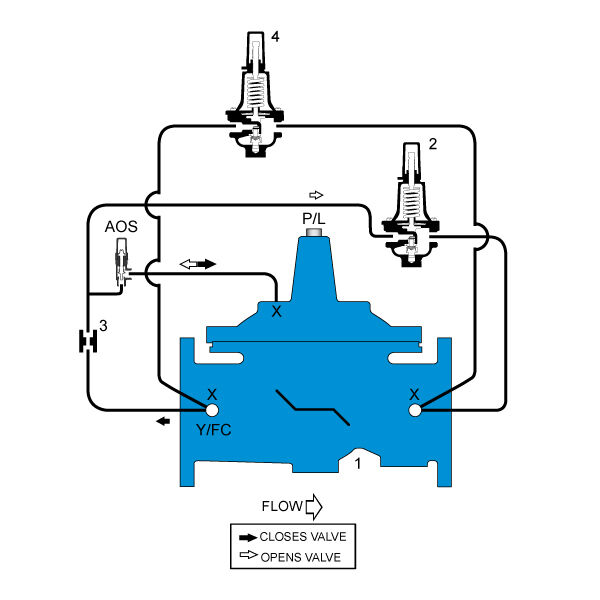

Series LFF115‑74 and LFF1115‑74 pressure reducing control valves with low‑flow by‑pass are designed to automatically reduce a fluctuating high upstream pressure to a constant lower downstream pressure, regardless of varying flow rates. Flow demands below the normal operating range of the main valve are managed by a separate, valve‑mounted, direct‑acting low‑flow by‑pass pressure reducing valve.

SentryPlus Alert® technology adds intelligent pressure monitoring and notification, using integrated sensors to track pressure fluctuations at up to three points and assess valve performance in real time.

When paired with an ACV, the Sensor Control Monitor kit issues maintenance alerts (such as when differential pressure rises above a preset limit) and communicates either through BAS integration via RS‑485 Modbus or through the Nexa® platform over Wi‑Fi.

The valve’s internals are protected by ArmorTek®, a multilayer corrosion‑resistant coating engineered to extend service life in demanding environments.

To learn more visit: https://www.watts.com/armortek

Approval/Certification Information

For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.

Literature

- Installation Instructions - Sensor Control Monitor

Select a Model

Select options below to identify the UPC, Order Code, and Repair Kit for a specific LFF115-74

Model

Description

No results found

Model	Used On - Series or Model	Kit Contents
ACV-SCM-Class 150 Activation Kit	</br></br>	Sensor Control Monitor, 2 Sensors, 2 Sensor Cables, Power Adapter, Mounting Feet, and Quick Start Guide</br>
SCM-ACV-Class 150 Activation Kit	</br></br>	Sensor Control Monitor, 2 Sensor Cables, Power Adapter, Mounting Feet, and Quick Start Guide</br>
