DERINGER 50 KIT GPM 2
Part of the Deringer 50/50G Series
Ordering Code: D-2050K-GPM
UPC: 737733034223
Lead Free: Yes
2 IN SS Reduced Pressure Detector Assy, GPM, Deringer, Integral Butterfly Valves, GRV Ends, Dual-Action Ck Mods, Adapter Kit with 2 1/2 IN GRV Couplings and Adapters

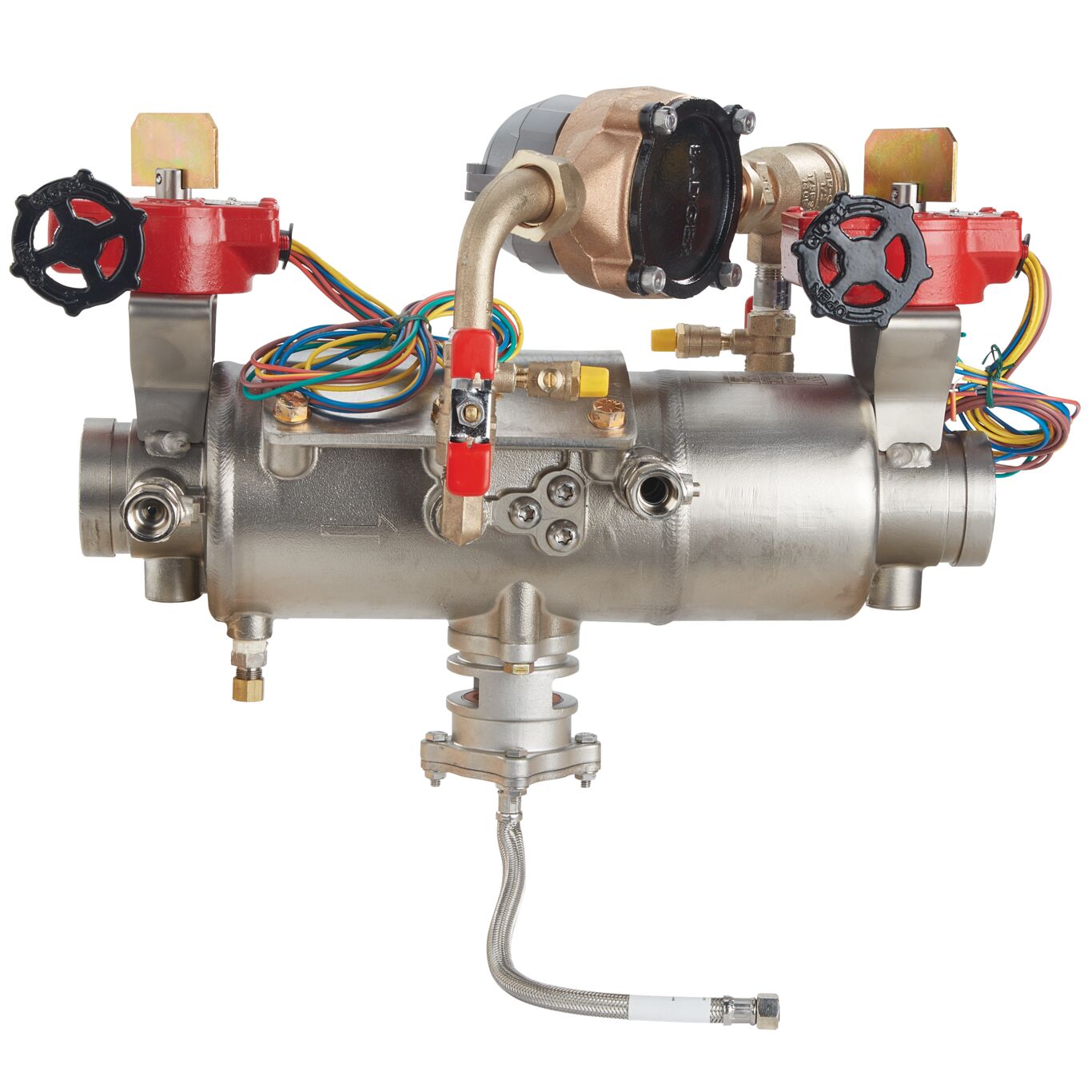

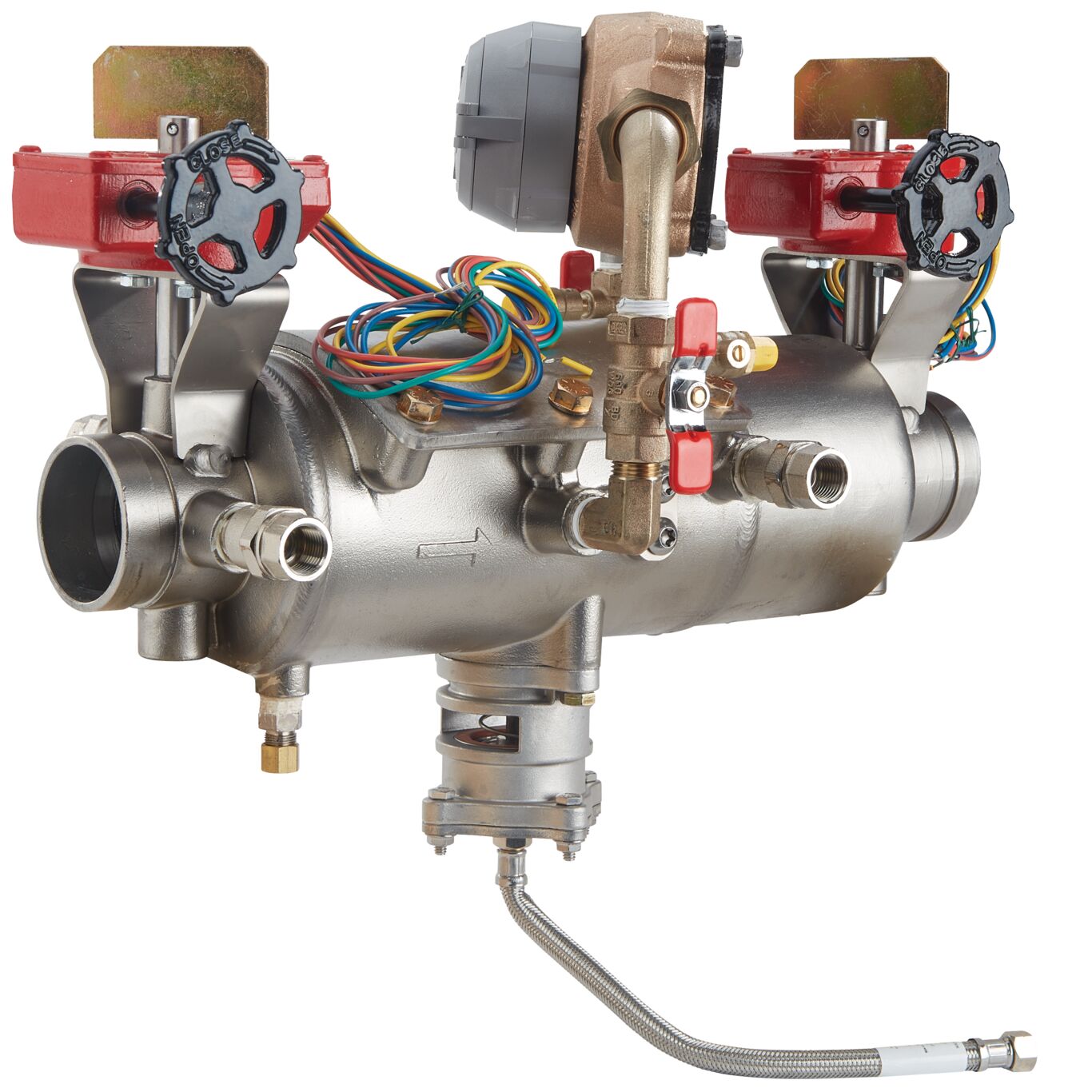

This 2 inch Ames Deringer(TM) 50 Reduced Pressure Detector Type II Assembly is designed to prevent hazardous contaminants and non-health hazard pollutants from entering the potable water supply system caused by backpressure and/or backsiphonage conditions. Deringer 50 features integral Eccentric-Seal(TM) butterfly shutoff valves for a short lay length, integrated tamper switches, and True-Seal(TM) and Dual-Action(TM) checks for high performance at low-and high-flow rates. This valve comes with kit to adapt valve from 2 inch to 2 1/2 inch valve. The kit includes two 2 1/2 inch grooved couplings and two 2 inch NPT x 2 1/2 inch groove adapters. End connections are union type stainless steel 2 inch female NPT threads for ease of installation. The Type II bypass is used to monitor unauthorized water usage, is primarily required on fire sprinkler systems, comes with a GPM meter. Maximum working pressure is 175psi (12 bar).
Features
- Comes with kit to adapt valve from 2 inch to 2 1/2 inch size
- Kit includes (2) 2 1/2 inch groove couplings
- Includes (2) 2 IN NPT x 2 ½ inch groove adapter
- Integral shutoffs for shorter lay length and lightweight construction
| Specifications | |
|---|---|
| ArmorTek Technology | No |
| Backflow Preventer Type | Reduced Pressure Detector Assembly |
| Body Finish | Stainless Steel |
| Body Material | 304 Stainless Steel |
| Body Pattern | Inline |
| Brand | Ames Fire & Waterworks |
| Buy American Act Compliant | NO |
| Bypass | No |
| Bypass Size | Does Not Apply To Product |
| Cap And Tether | No |
| Disc Material | Silicone |
| EAN | 737733034223 |
| Elbow Fitting | No |
| Hazard Protection Level | Non Health Hazard |
| Hot And Harsh Water | No |
| Hydrant Connection | No |
| Inlet Connection Size | 2 1/2 IN |
| Inlet Connection Size-Metric | 64 MM |
| Inlet Connection Type | Grooved Joint |
| Inlet Shutoff Valve Type | Gear Operated Butterfly Valve |
| Inlet Thread Type | Does Not Apply To Product |
| Lead Free | Yes |
| Maximum Temperature-Fahrenheit | 140 |
| Maximum Working Pressure-BAR | 12.10 |
| Maximum Working Pressure-PSI | 175 |
| Meter Type | GPM |
| Minimum Temperature - Celsius | 1.00 |
| Minimum Temperature-Fahrenheit | 33 |
| Outlet Connection Size | 2 1/2 IN |
| Outlet Connection Type | Grooved Joint |
| Outlet Shutoff Valve Type | Gear Operated Butterfly Valve |
| Outlet Thread Type | Does Not Apply To Product |
| Part Number | D-2050K-GPM |
| Polymer Coating | No |
| Pressure Operation | Continuous |
| Protection Type | Backpressure and Backsiphonage |
| Seat Material | Noryl Polymer |
| Series | Deringer 50/50G |
| Strainer | No |
| Technologies | Does Not Apply To Product |
| Tradename | Deringer |
