007DCDA-DOSY-CFM 3

Part of the 007DCDA Series

Ordering Code: 0389403

UPC: 098268061307

Lead Free: NO

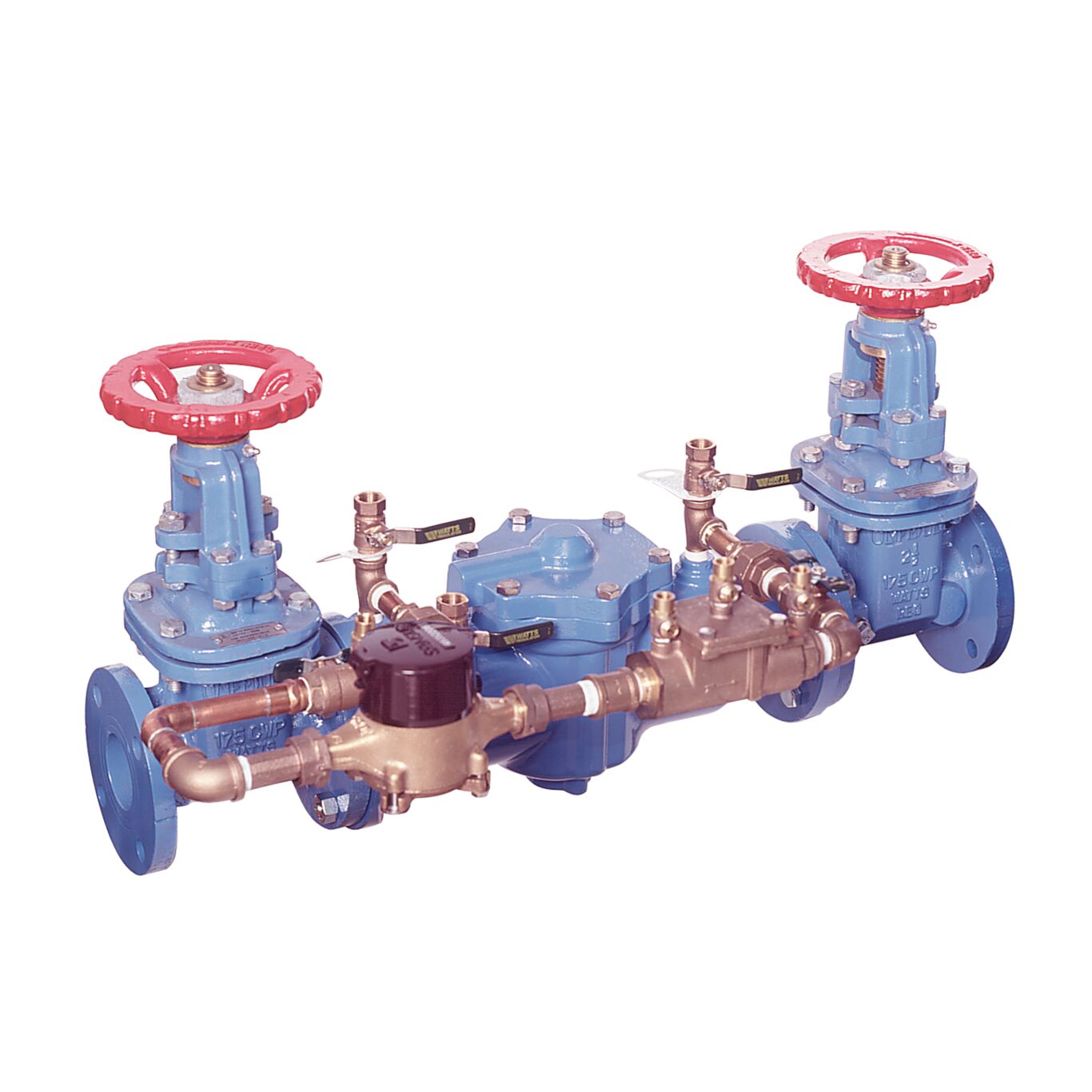

3 In Cast Iron Double Check Detector Assembly, Domestic Osy Shutoffs, Cubic Feet Meter

This 3 inch double check detector assembly is designed to prevent the reverse flow of fire protection substances and water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. It is ideal for protection at cross-connections identified as non-health hazards such as on fire protection systems and from other contaminants found at the service line entrance. This compact modular design with a single access cover for easy maintenance is approved for horizontal installation. It consists of a fused epoxy coated body, domestic outside stem and yoke resilient seated gate valves, captured spring check valves, a cubic feet per minute metered bypass to detect underground leaks and unauthorized water use, and four test cocks.

Product Features

  • No special tools required for servicing
  • Bronze body
  • Cubic feet per minute meter
  • Non-health hazard application
Specifications
Backflow Preventer Type Double Check Detector Assembly
Body Finish Epoxy Coated
Body Material Cast Iron
BrandName Watts
Bypass Yes
Cap And Tether No
Disc Material Silicone
Elbow Fitting No
Hazard Protection Level Non Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 3 IN
Inlet Connection Type Flanged Joint
Inlet Shutoff Valve Type Outside Stem And Yoke Gate Valve
LeadFree NO
Maximum Temperature-Fahrenheit 110
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type CFM
Minimum Temperature-Fahrenheit 33
ModelNumber 007DCDA-DOSY-CFM 3
Outlet Connection Size 3 IN
Outlet Shutoff Valve Type Outside Stem And Yoke Gate Valve
Part Number 0389403
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Series 007DCDA
Strainer No
