Part of the 007DCDA Series

Ordering Code: 0062513

UPC: 098268316803

Lead Free: NO

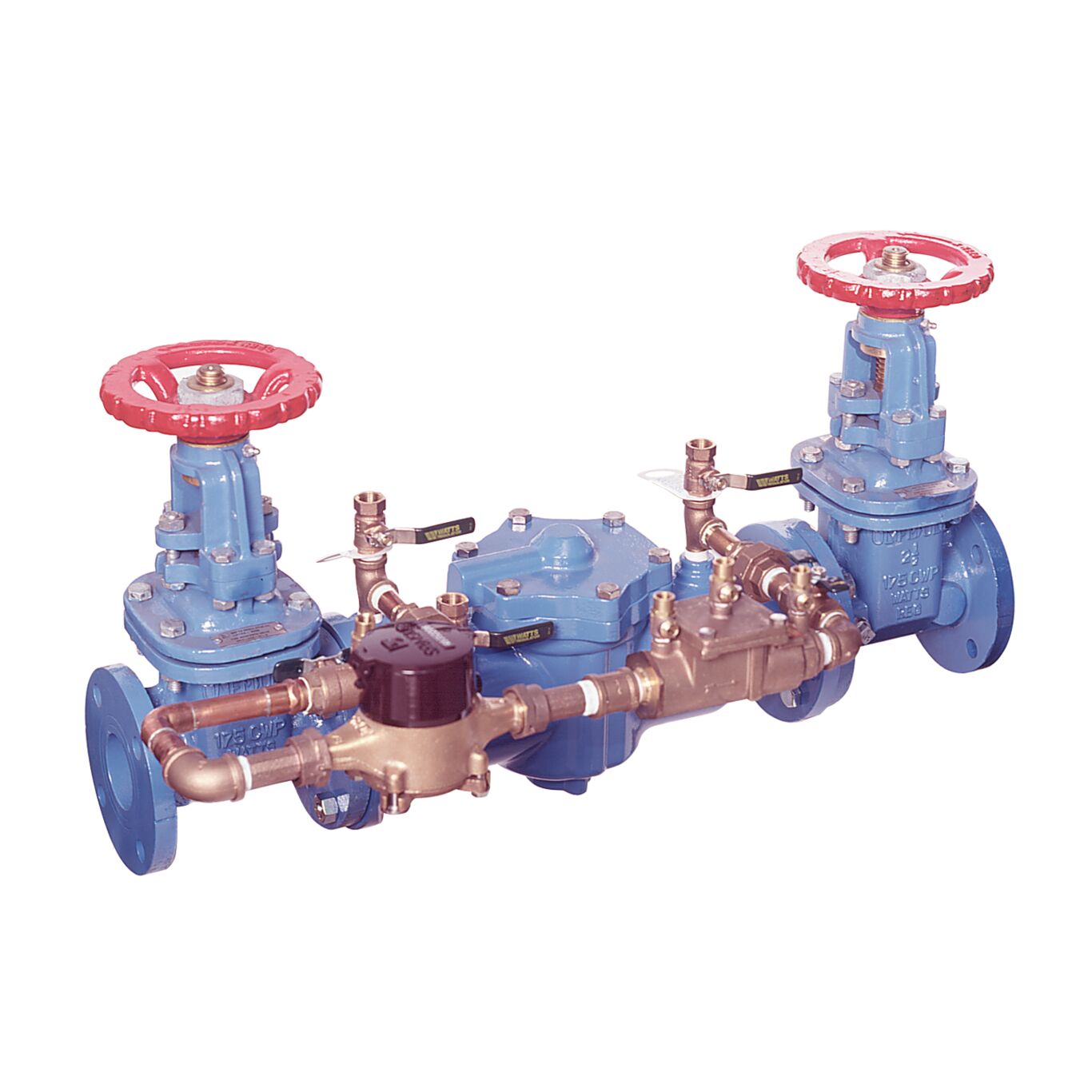

3 In Cast Iron Double Check Detector Assembly, Osy Shutoff, Cubic Feet Meter, Single Top Entry

This 3 inch double check detector assembly prevents the backflow of non-health hazard fire protection system substances from being pumped or siphoned into the potable water supply. It incorporates a cubic meter to detect ground leaks and unauthorized illegal taps, greatly reducing annual water expenses. Its compact epoxy coated cast iron single top entry unibody and modular check design facilitate simple and easy installation and maintenance. Maximum working pressure is 175 psi (12.06 bar).

Product Features

  • 150 pound ANSI/AWWA CL D flanged
  • Epoxy coated for longevity
  • Compact design
  • Outside screw and yoke shutoffs
Backflow Preventer Type Double Check Detector Assembly
Body Finish Epoxy Coated
Body Material Cast Iron
Brand Name Watts
Bypass Yes
Cap And Tether No
Disc Material Silicone
Elbow Fitting No
Hazard Protection Level Non Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 3 IN
Inlet Connection Size-Metric 80 MM
Inlet Connection Type Flanged Joint
Inlet Shutoff Valve Type Outside Stem And Yoke Gate Valve
Lead Free NO
Maximum Temperature-Fahrenheit 110
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type CFM
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Model Number 007DCDA-OSY-CFM 3
Outlet Connection Size 3 IN
Outlet Shutoff Valve Type Outside Stem And Yoke Gate Valve
Outlet Thread Type Does Not Apply To Product
Part Number 0062513
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Series 007DCDA
Strainer No
Type Kit
