D007M3-QT 3/4 Watts

Discontinued

Part of the 007 Series

Ordering Code: 0078001

UPC: 098268301236

Lead Free: NO

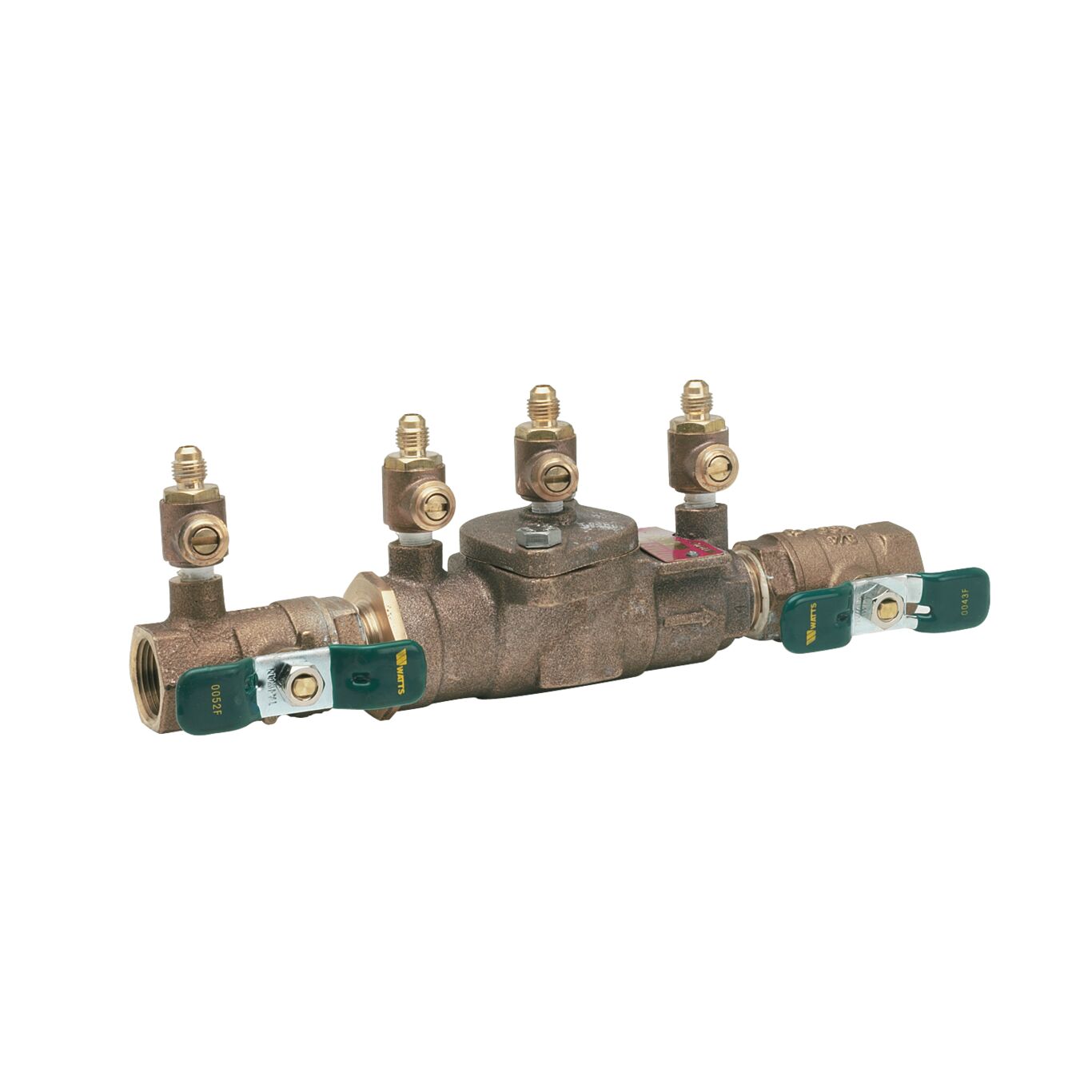

3/4 In Bronze Double Check Valve Assembly, Quarter Turn Shutoff, Single Top Entry, Domestic

This 3/4 inch double check valve assembly is designed to prevent the backflow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards and for contaminants at the service line entrance. This domestic assembly consists of a bronze body construction, NPT end connections, quarter turn ball valve shutoffs, top mounted test cocks, two in-line independent positive seating check modules, captured springs, and replaceable check discs and seats.

Product Features

  • Bronze body for durability
  • Modular compact design
  • Top entry
  • Replaceable seats and seat discs
Specifications
Backflow Preventer Type Double Check Valve Assembly
Body Finish Cast Bronze
Body Material Cast Bronze
BrandName Watts
Bypass No
Cap And Tether No
Elbow Fitting No
Hazard Protection Level Non Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 3/4 IN
Inlet Connection Type Female Threaded
Inlet Shutoff Valve Type Quarter Turn Ball Valve
Inlet Thread Type NPT
LeadFree NO
Maximum Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature-Fahrenheit 33
ModelNumber D007M3-QT 3/4
Outlet Connection Size 3/4 IN
Outlet Connection Type Female Threaded
Outlet Shutoff Valve Type Quarter Turn Ball Valve
Outlet Thread Type NPT
Part Number 0078001
Polymer Coating No
Protection Type Backpressure and Backsiphonage
Series 007
Strainer No
