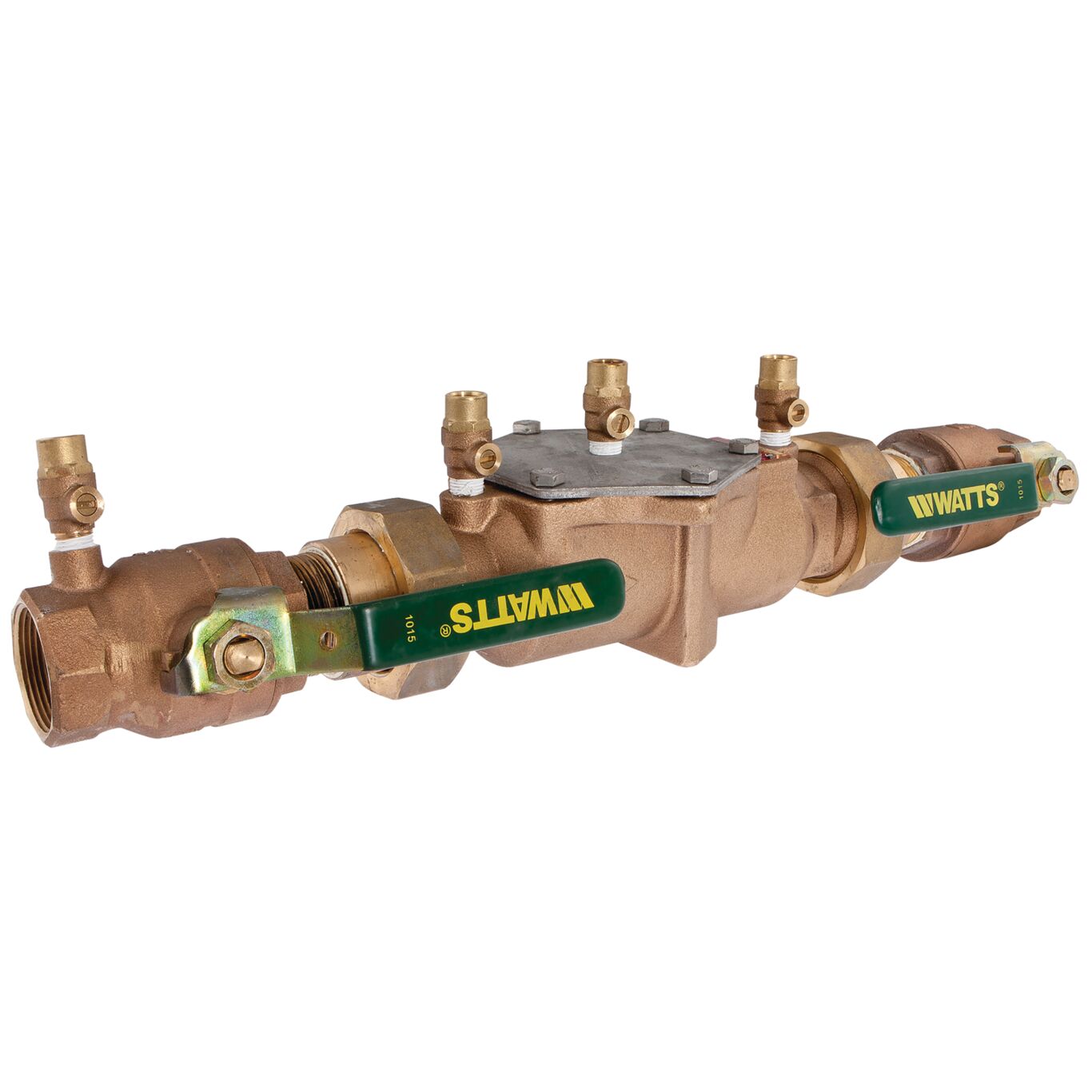

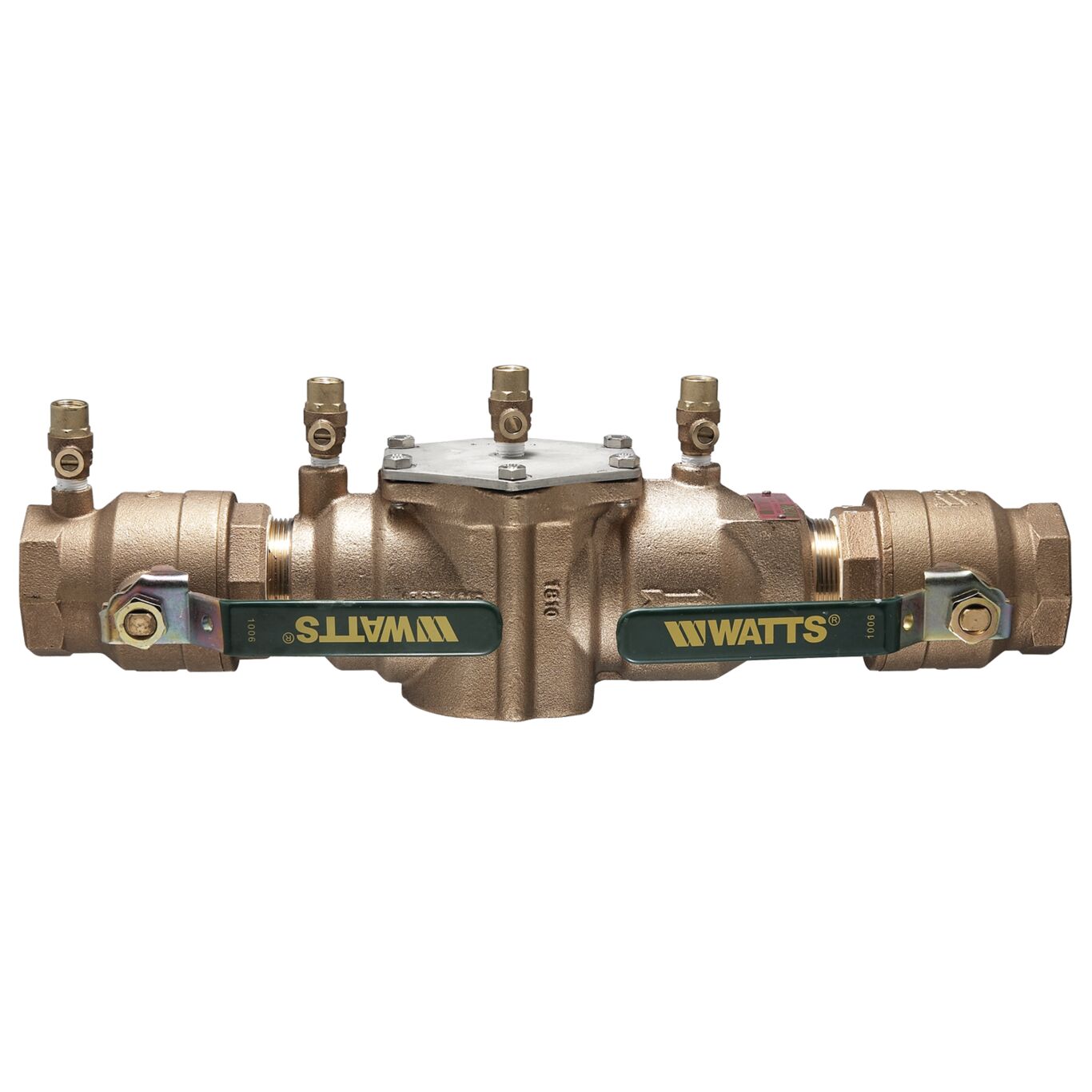

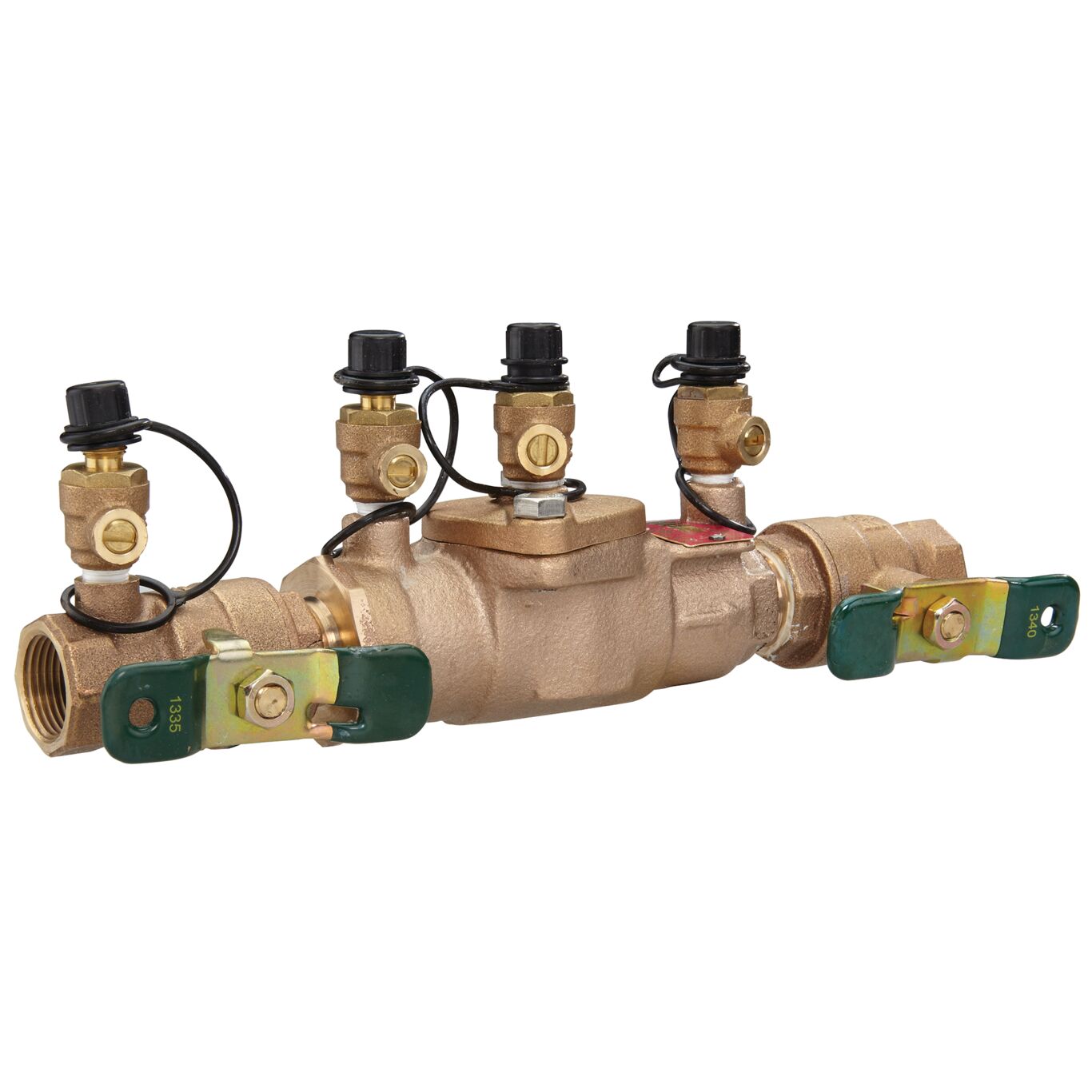

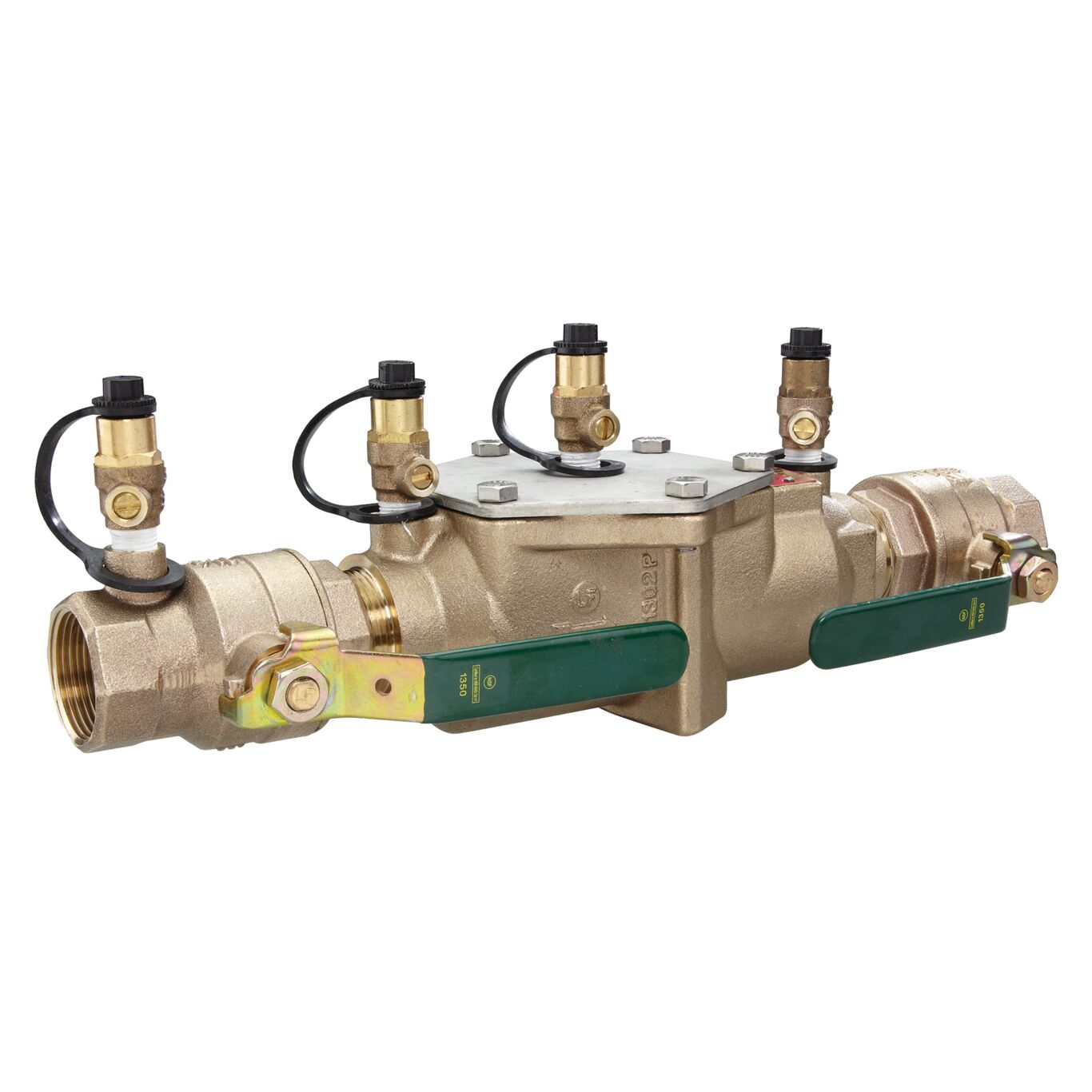

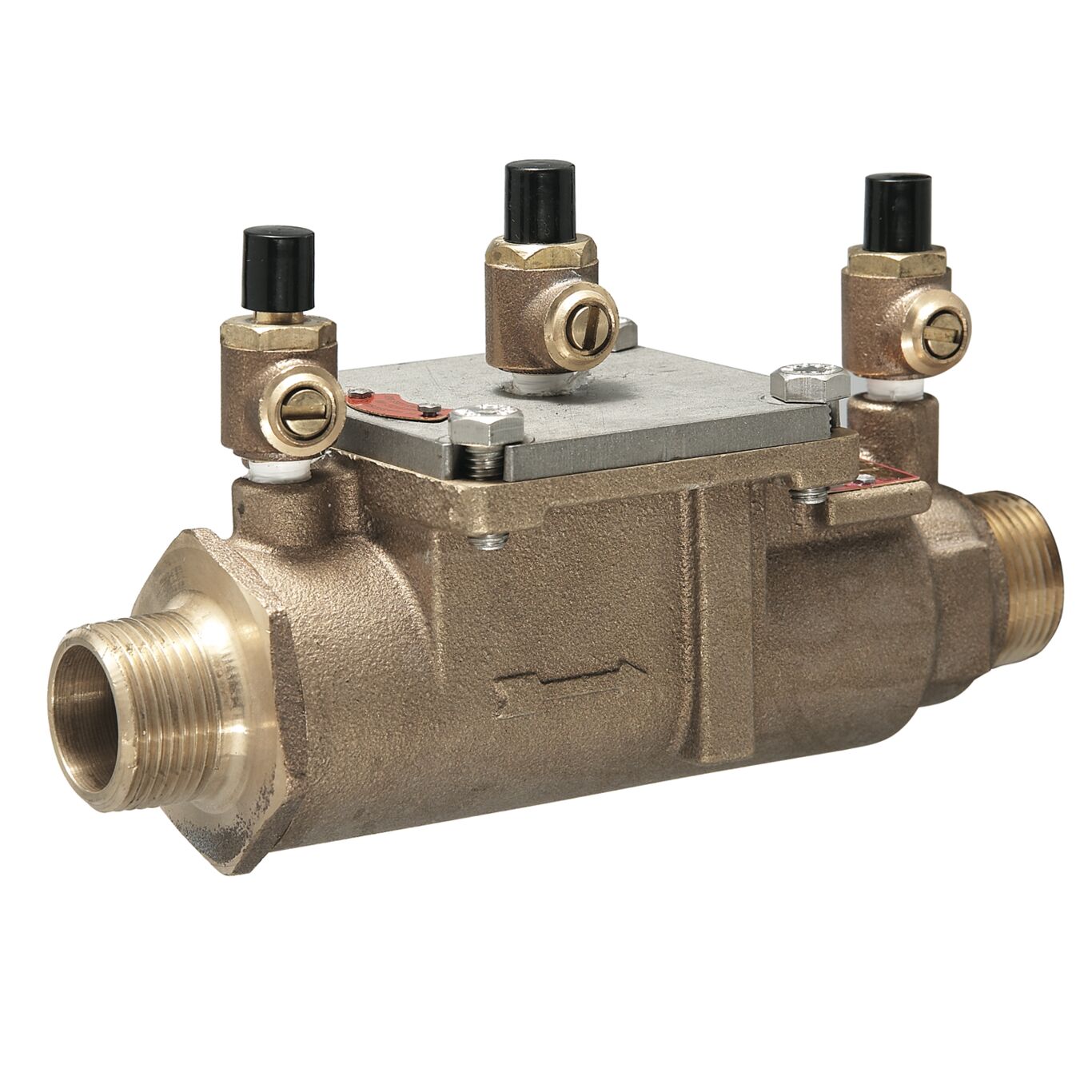

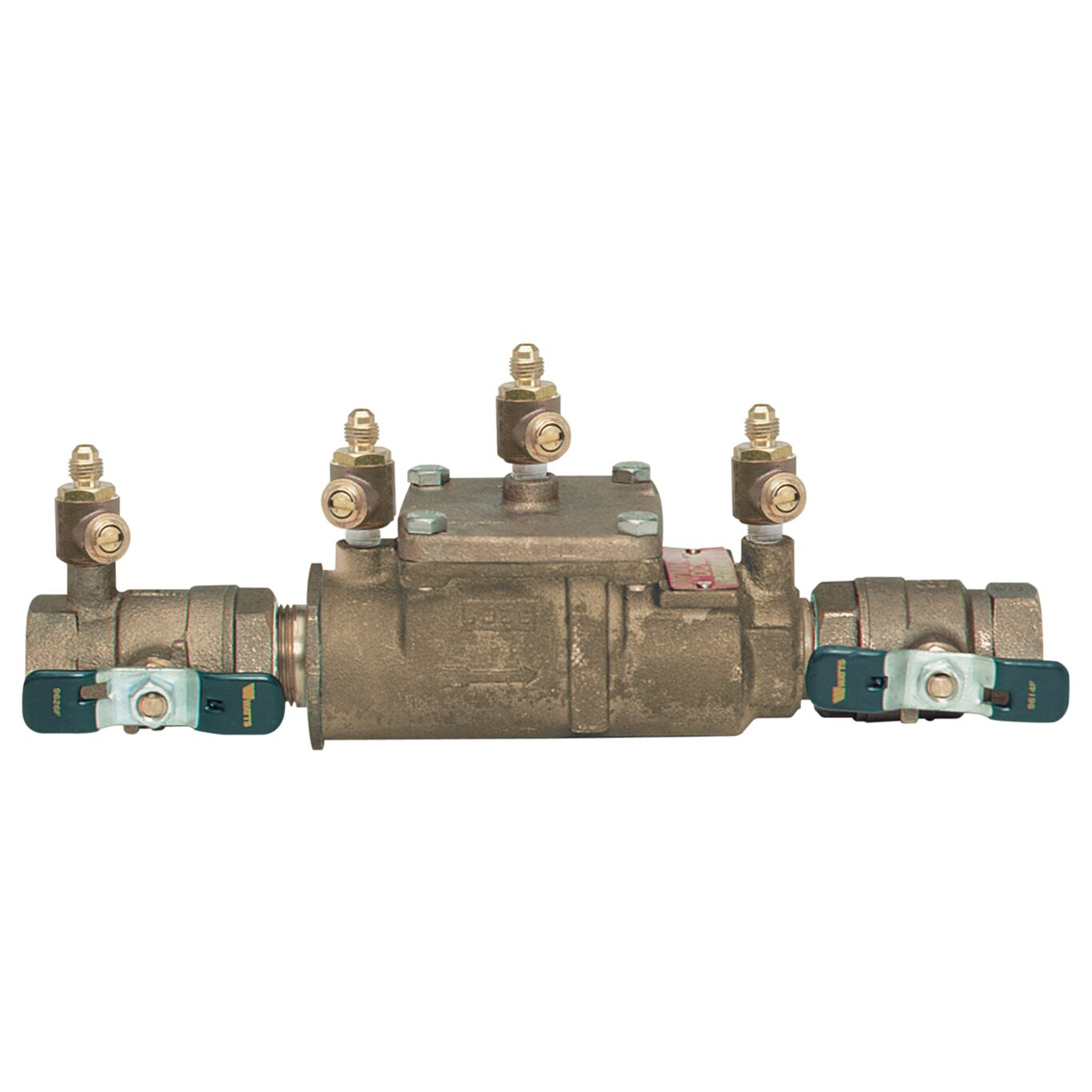

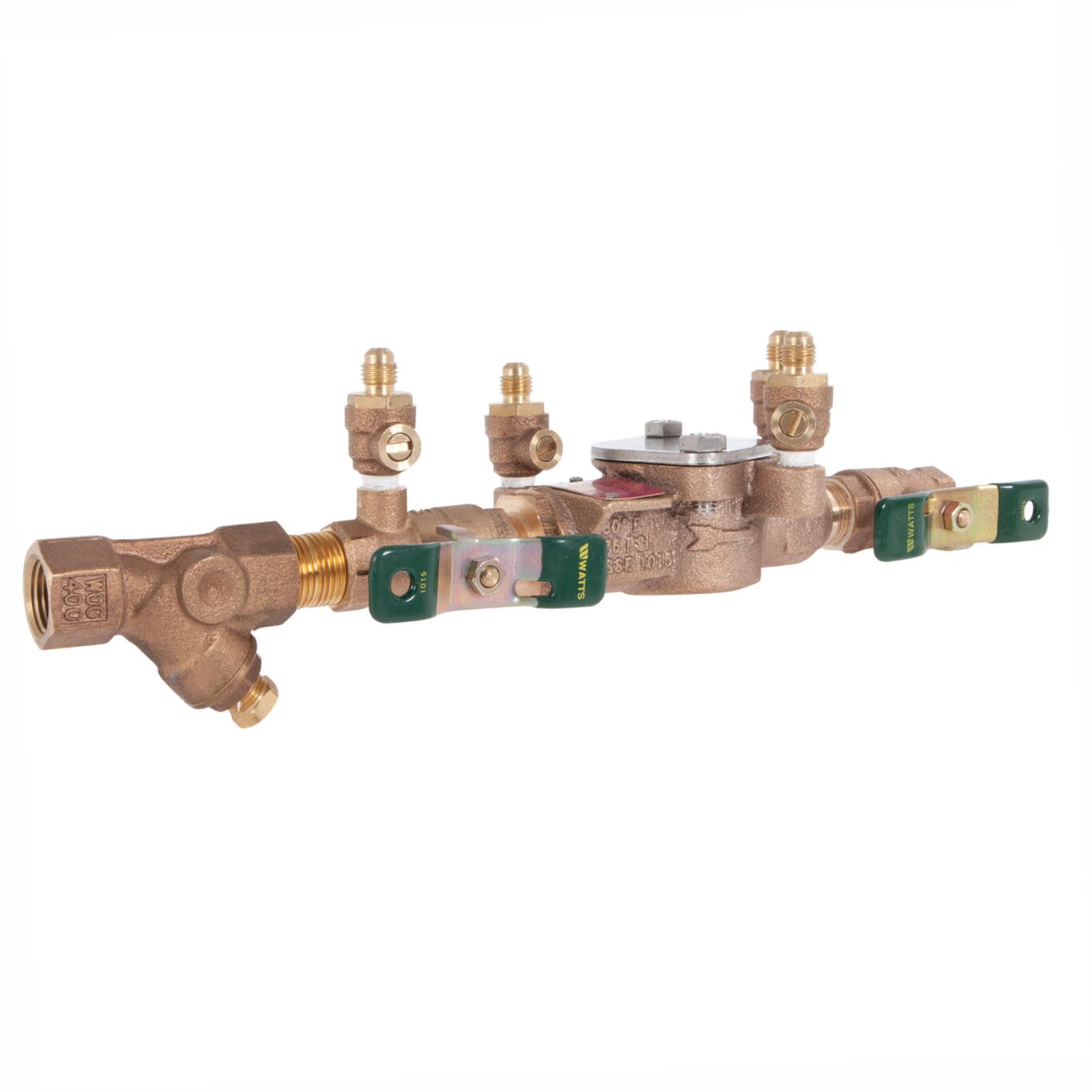

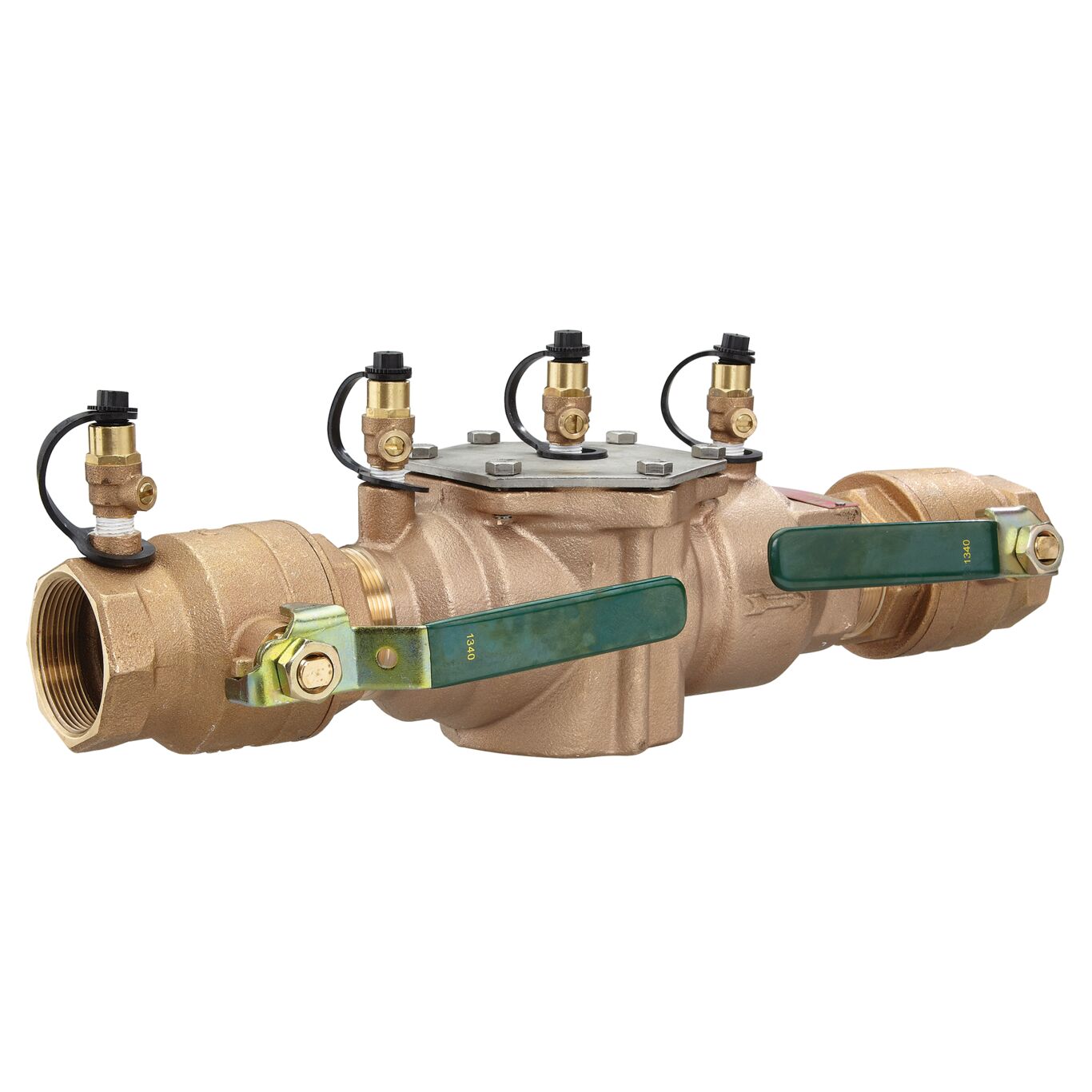

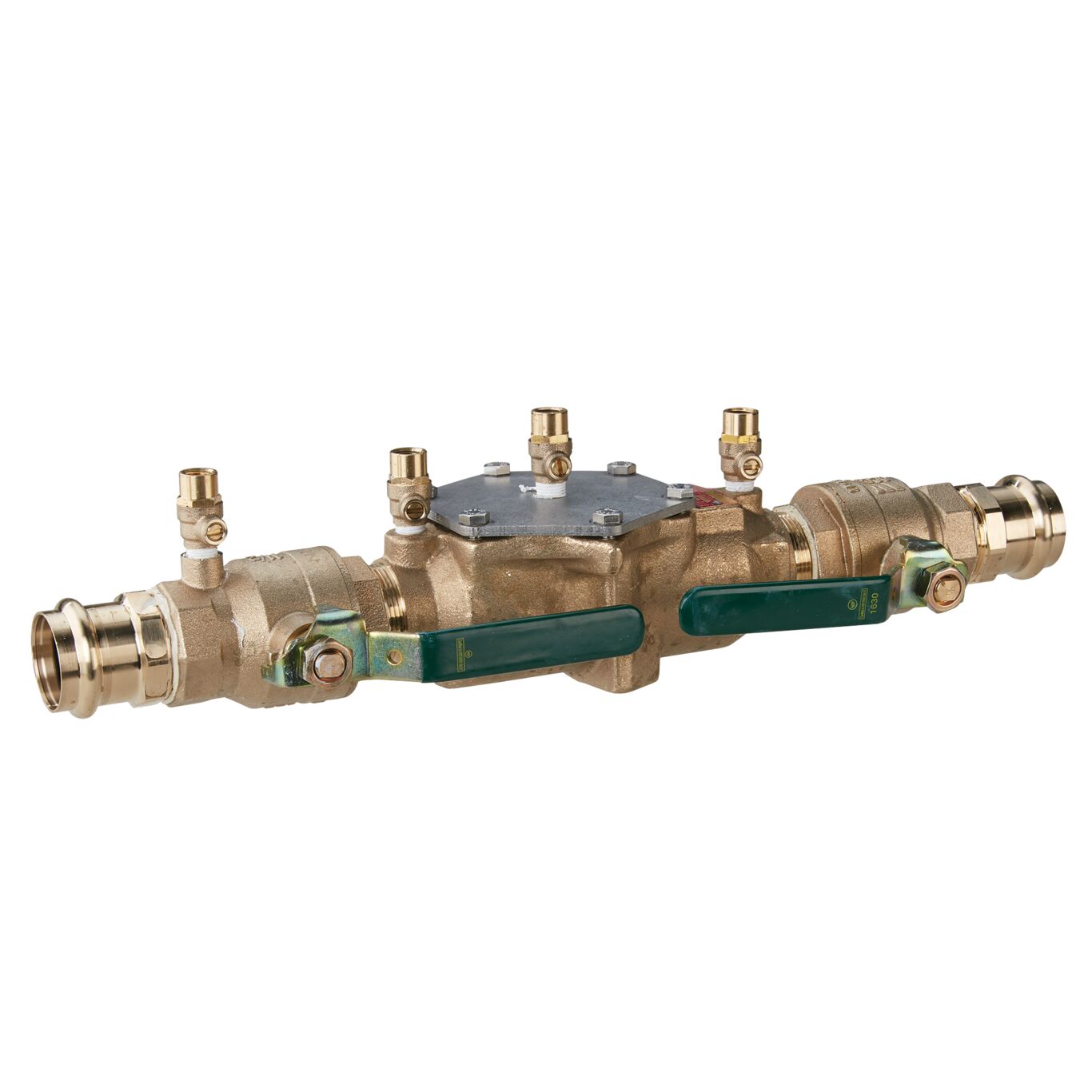

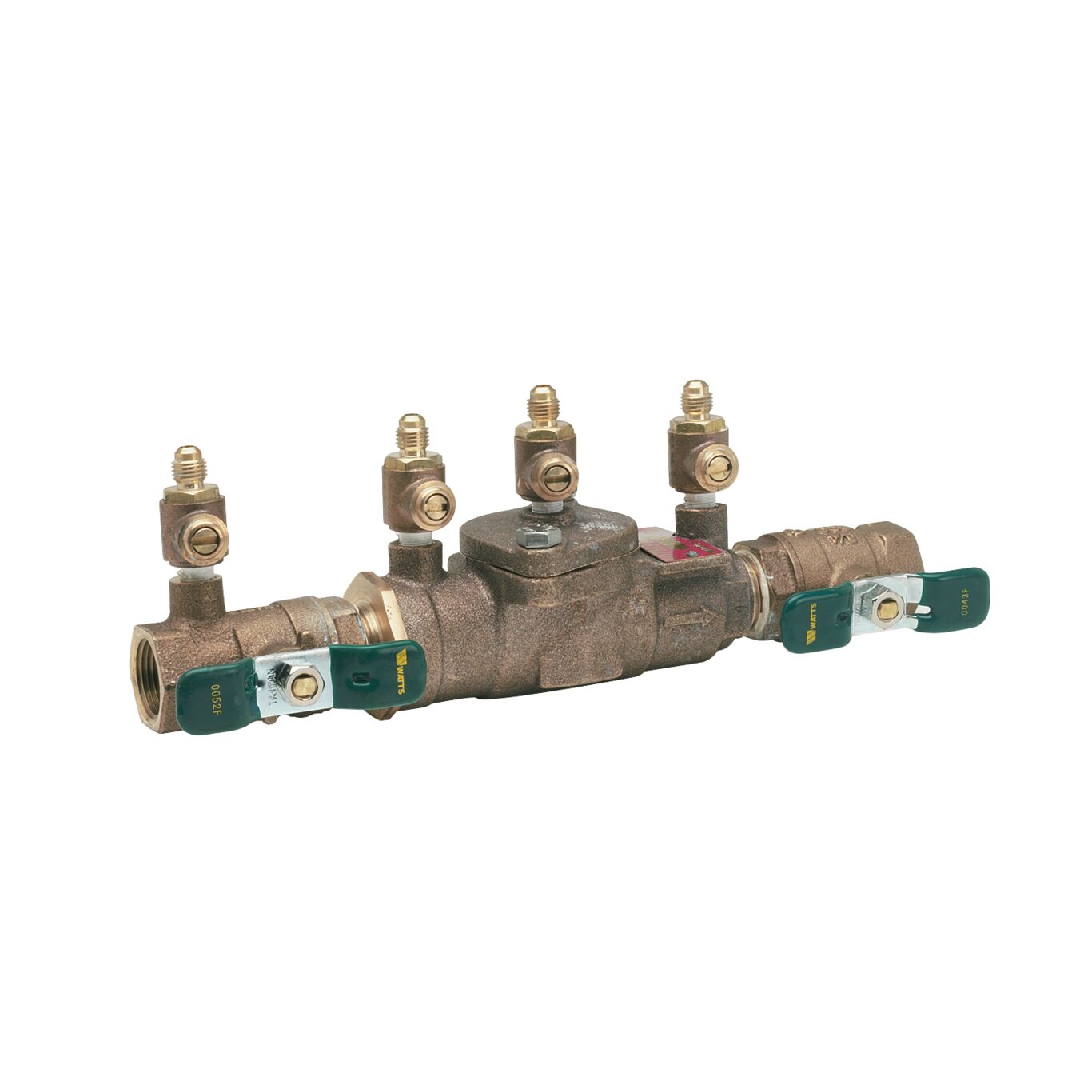

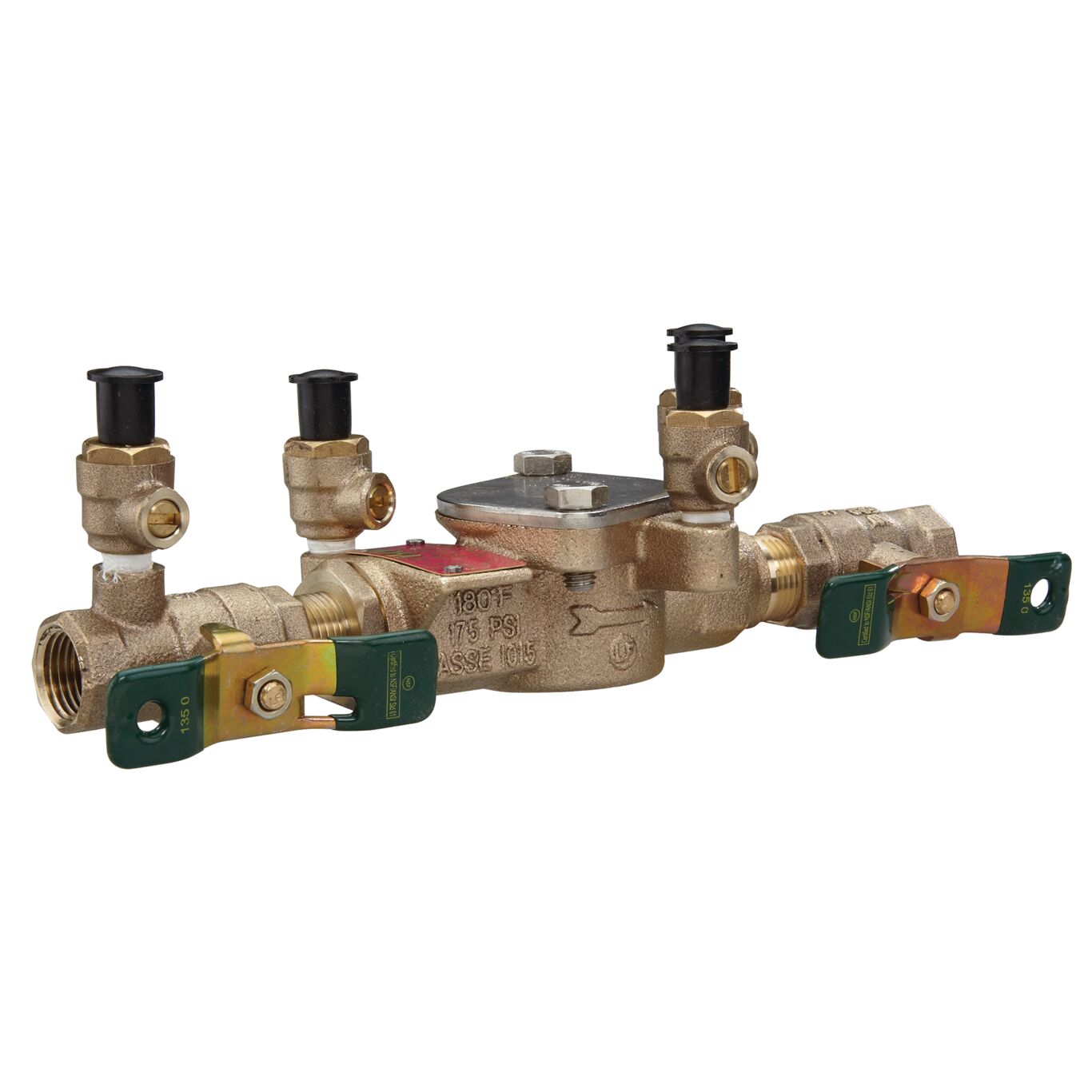

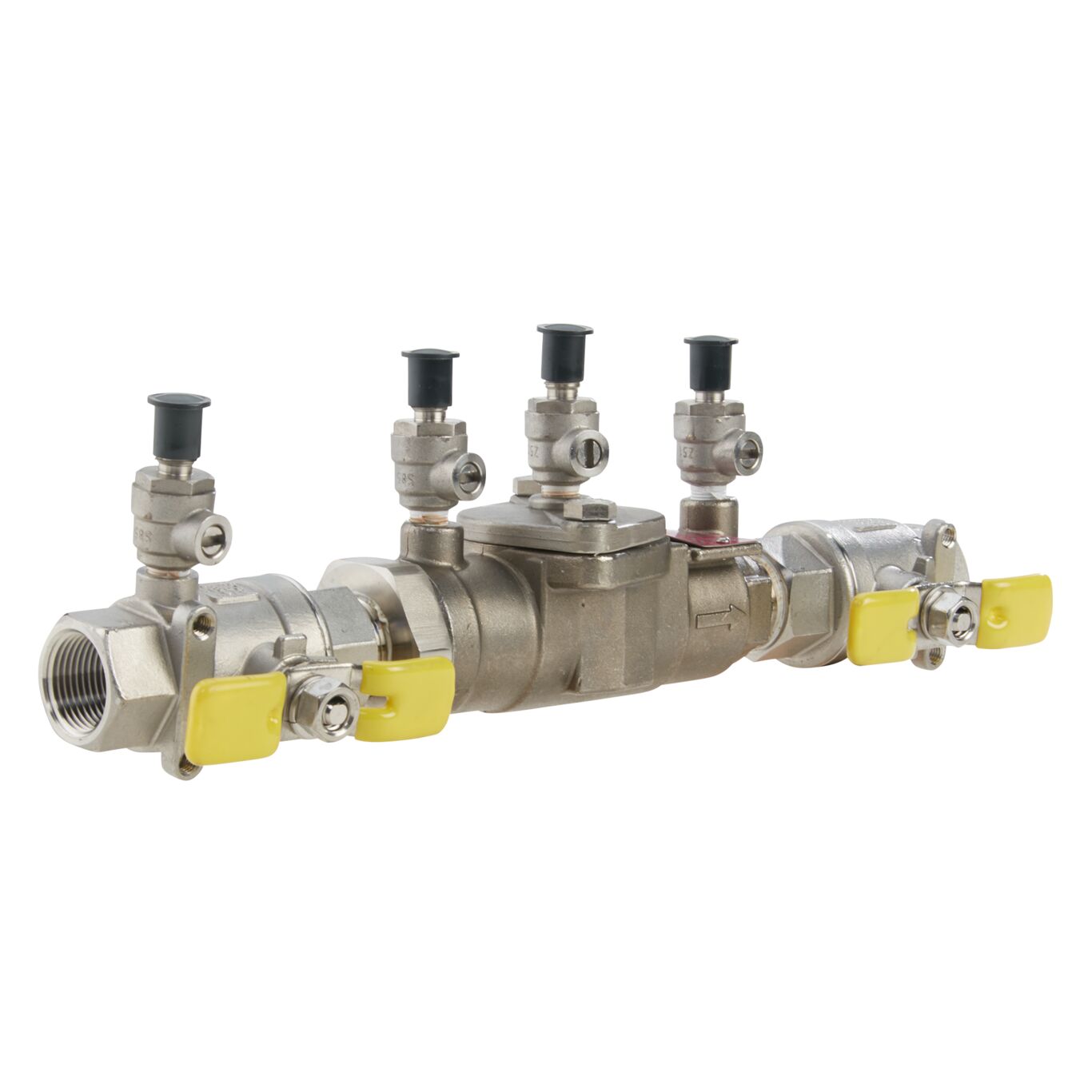

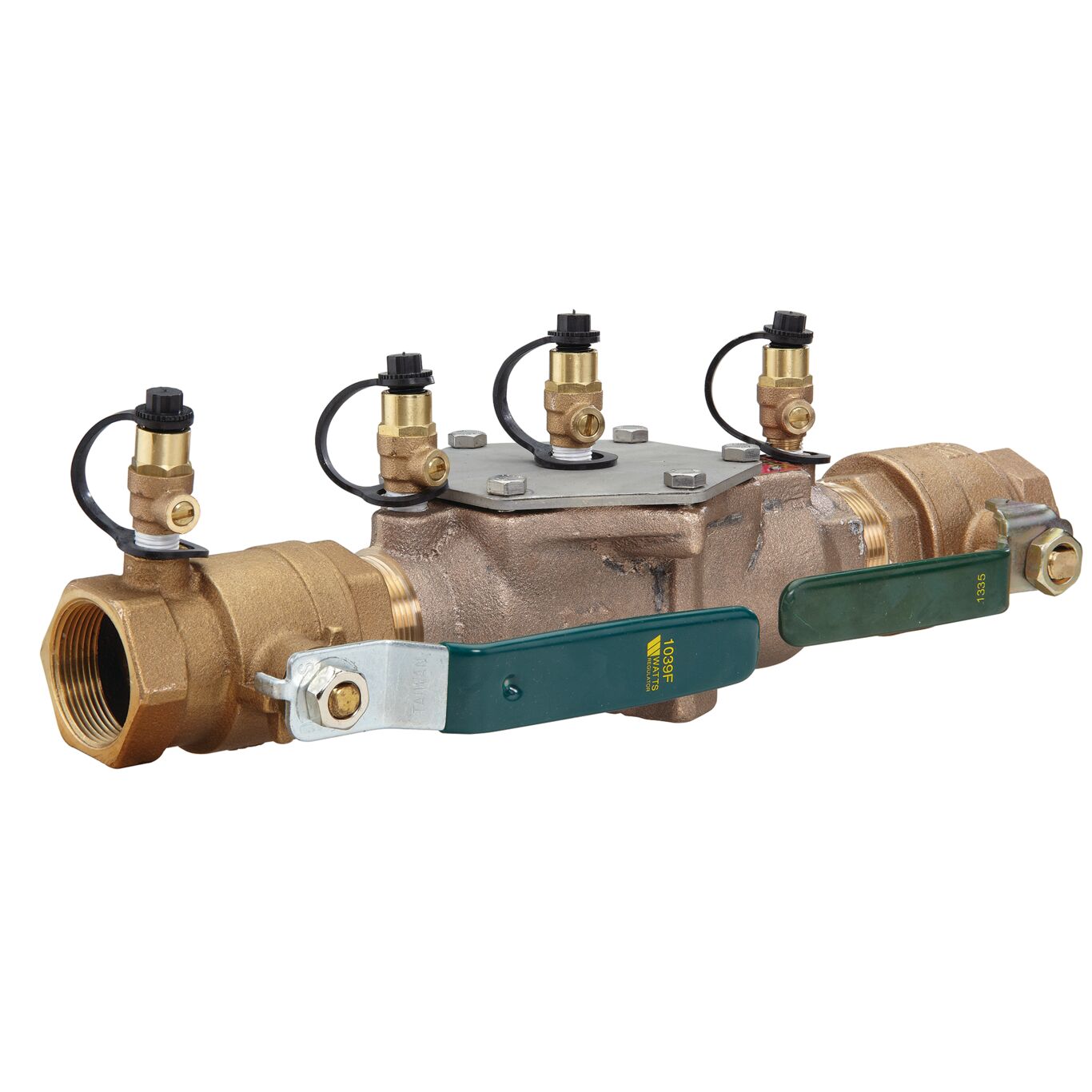

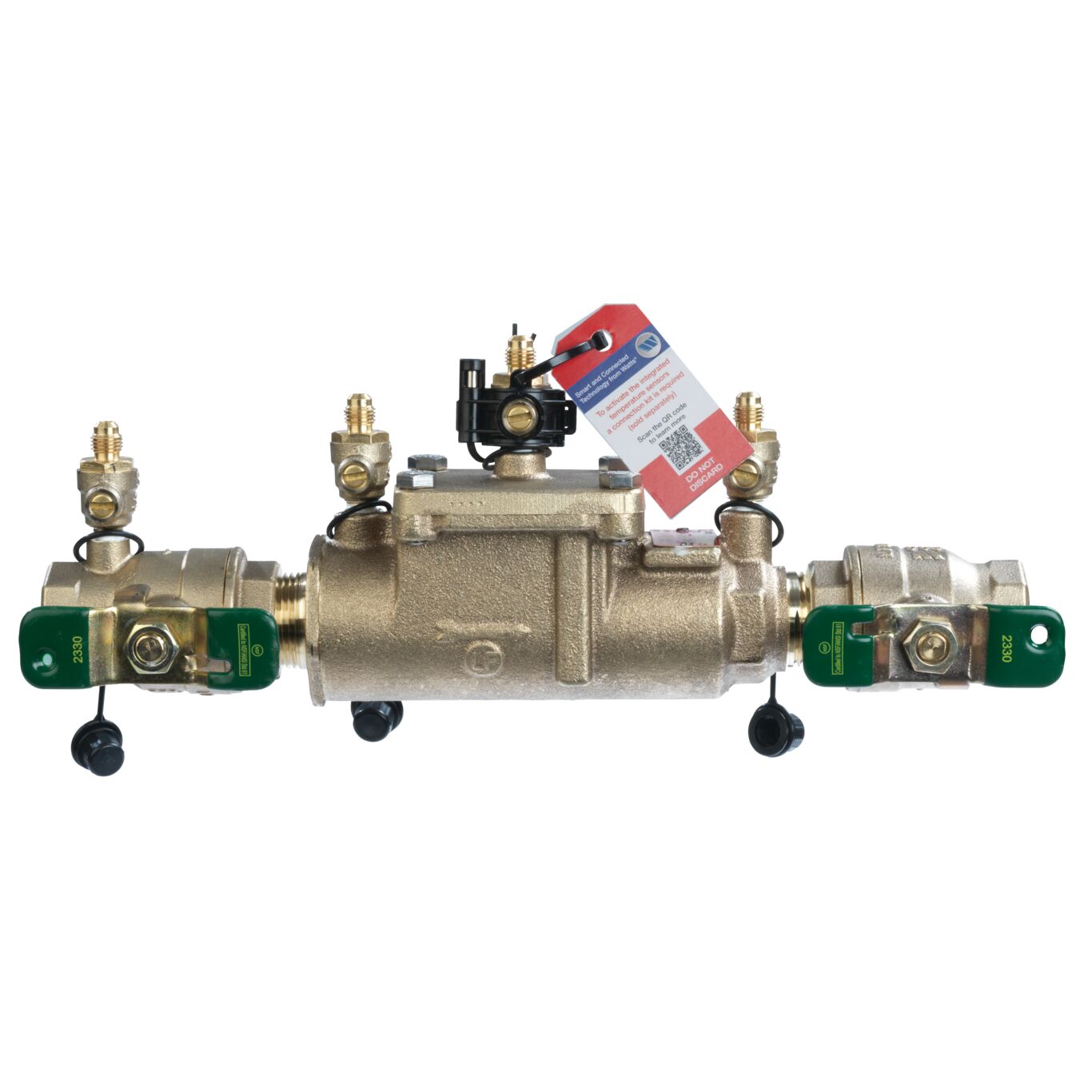

Double Check Valve Assembly Backflow Preventers with Freeze Sensor
Features
- Available freeze sensor connection kit to activate a monitoring system that trigger alerts for low and freezing temperatures
- Single cover, top-entry design to ease access for maintenance
- Top mounted ball valve test cocks
- Replaceable seats and seat discs
- No special tools required for servicing
- Freeze alerts feature available with add-on connection kit for Wi-Fi networks, building management systems (BMS), and irrigation management systems (IMS)

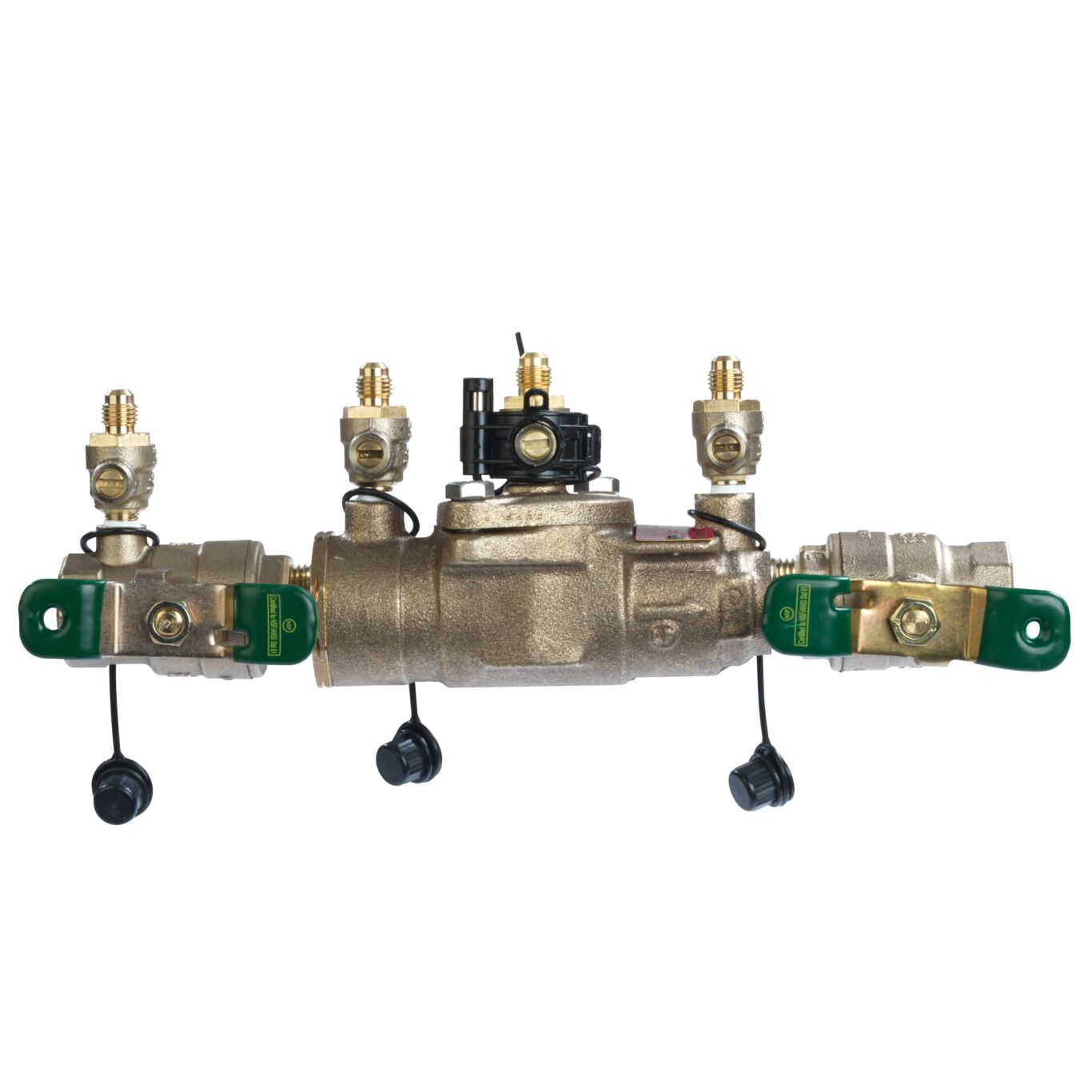

Series 007 double check valve assembly backflow preventers include a freeze sensor for use with SentryPlus Alert® technology to signal facility personnel when temperature nears and reaches the freezing point. Freeze alerts feature available with add-on connection kit for Wi-Fi networks, building management systems (BMS), and irrigation management systems (IMS).
This series is designed to prevent the backflow of contaminated water from entering the potable water supply. Bronze valve body (1/2 to 2 IN). Easy to maintain and service. Ideal at referenced cross-connections identified as non-health hazard applications. Check with local inspection authorities for installation requirements. Maximum Working Pressure: 175 psi (12.06 bar).
To learn more visit: https://www.watts.com/freeze-detection
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 007
No results found
| Model | Product Used On - Series or Model | Kit Contents |
|---|---|---|
|

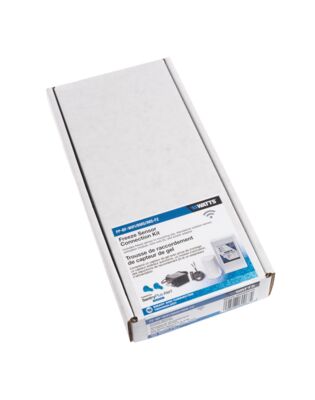

FP-BF-WiFi/BMS/IMS-FZ
Activation Kit |
</br>800M4FR, LF800M4FR, 800M4QT, LF800M4QT, 007, 007M1DCDA, LF007, SS007</br> |
Freeze Sensor in Mounting Clip, Standalone Sensor, Activation Module, 2 Wire Nuts, Mounting Hardware, Power Adapter, Quick Start Guide</br> |
|

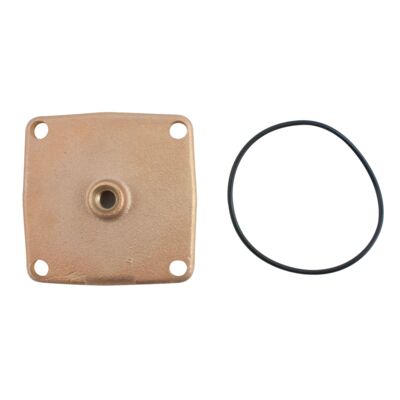

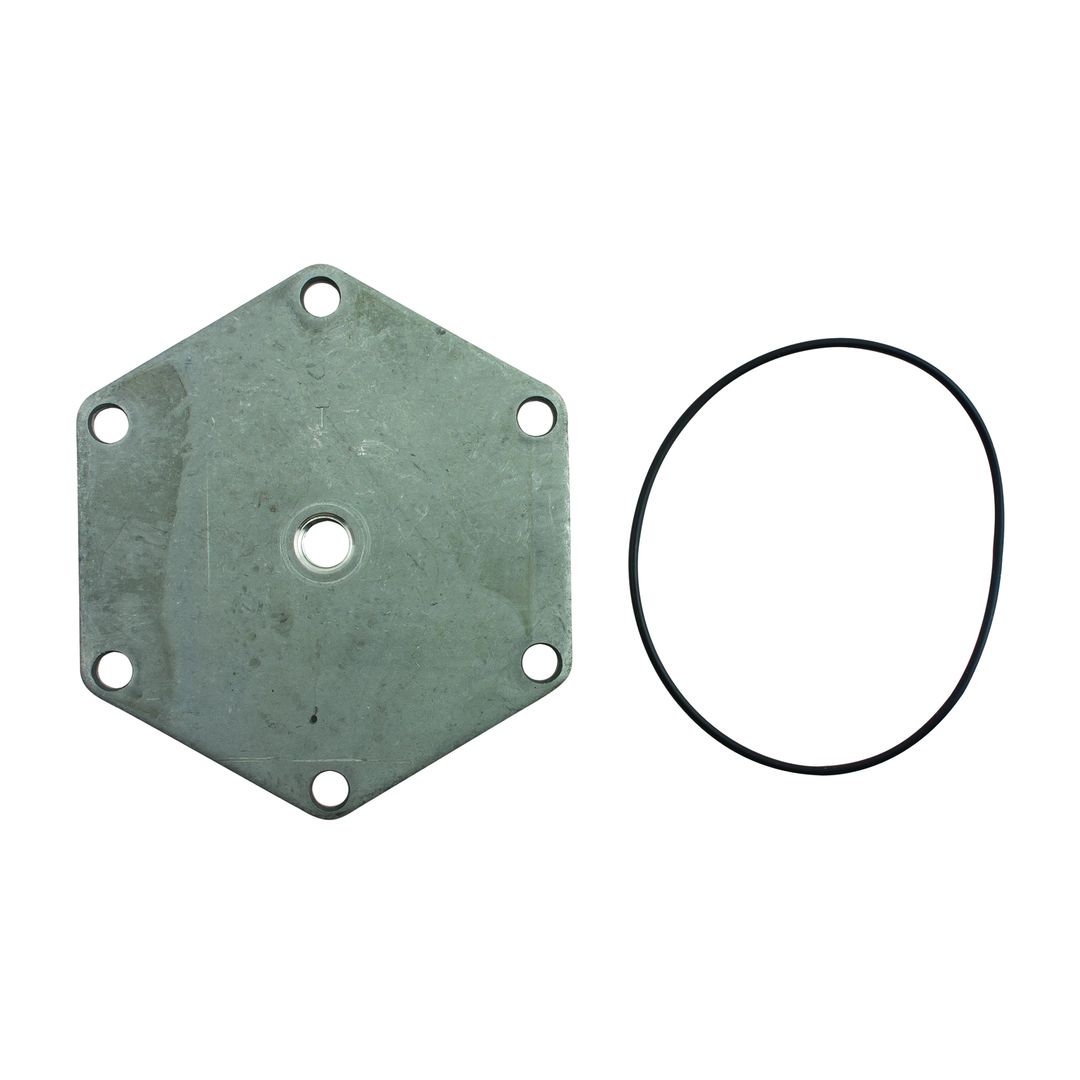

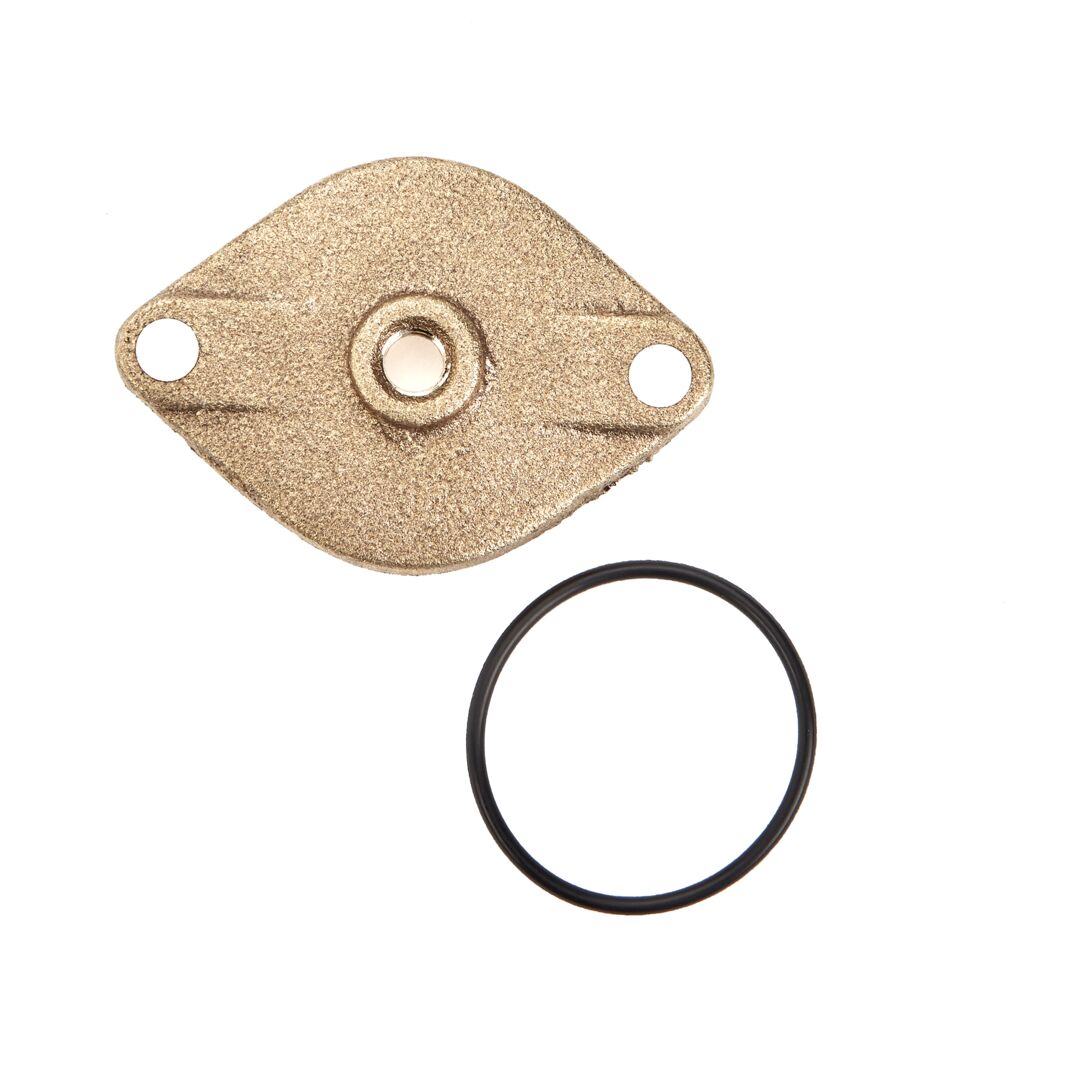

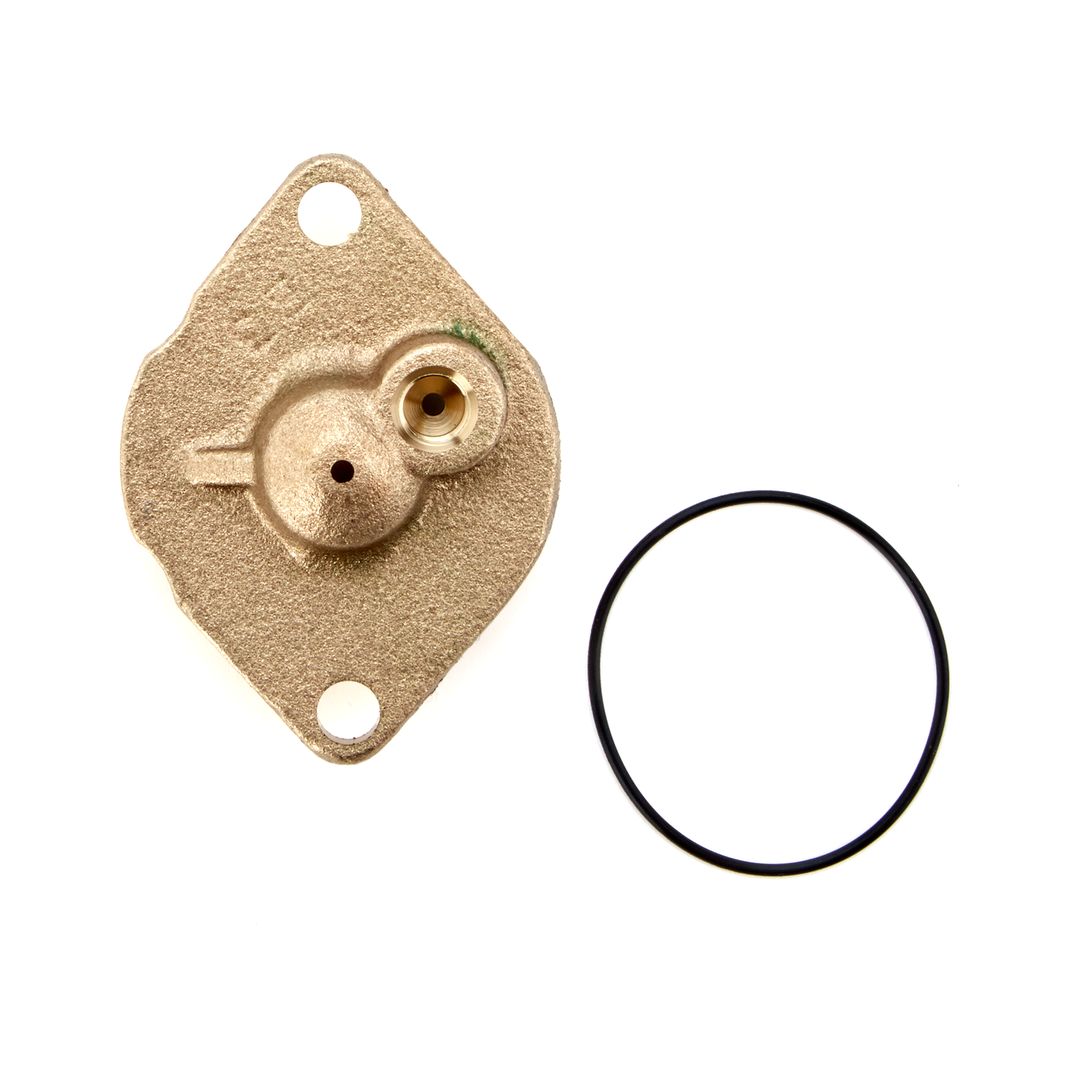

RK 007-C 1/2
Cover Kit |
</br>007</br> |
Cover, Cover O-ring</br> |
|

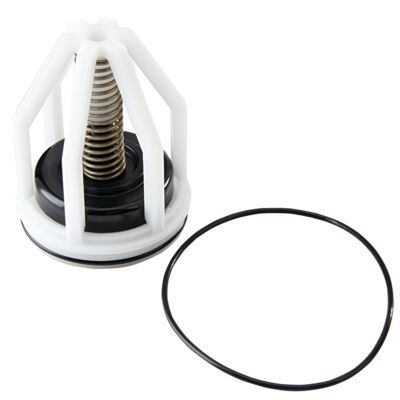

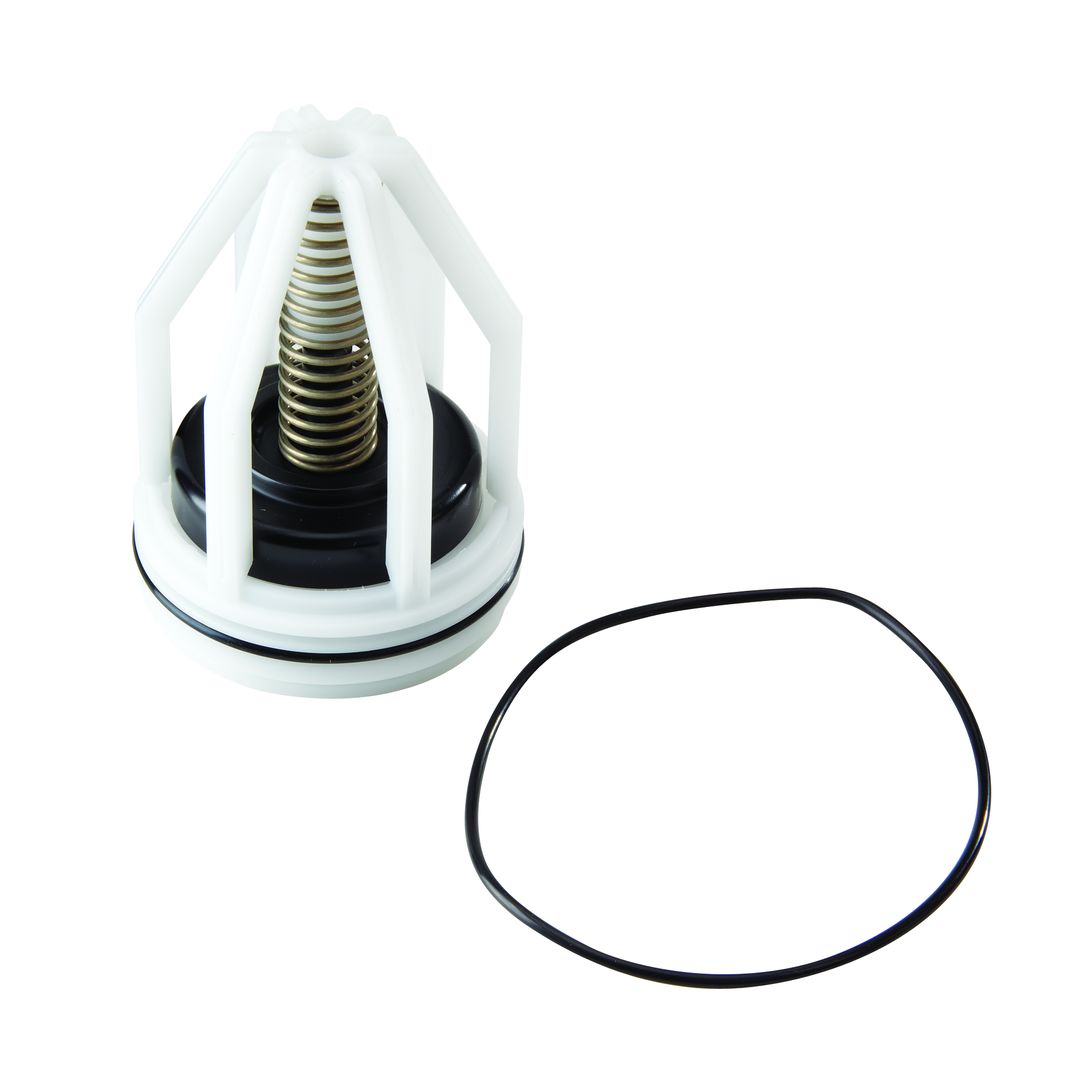

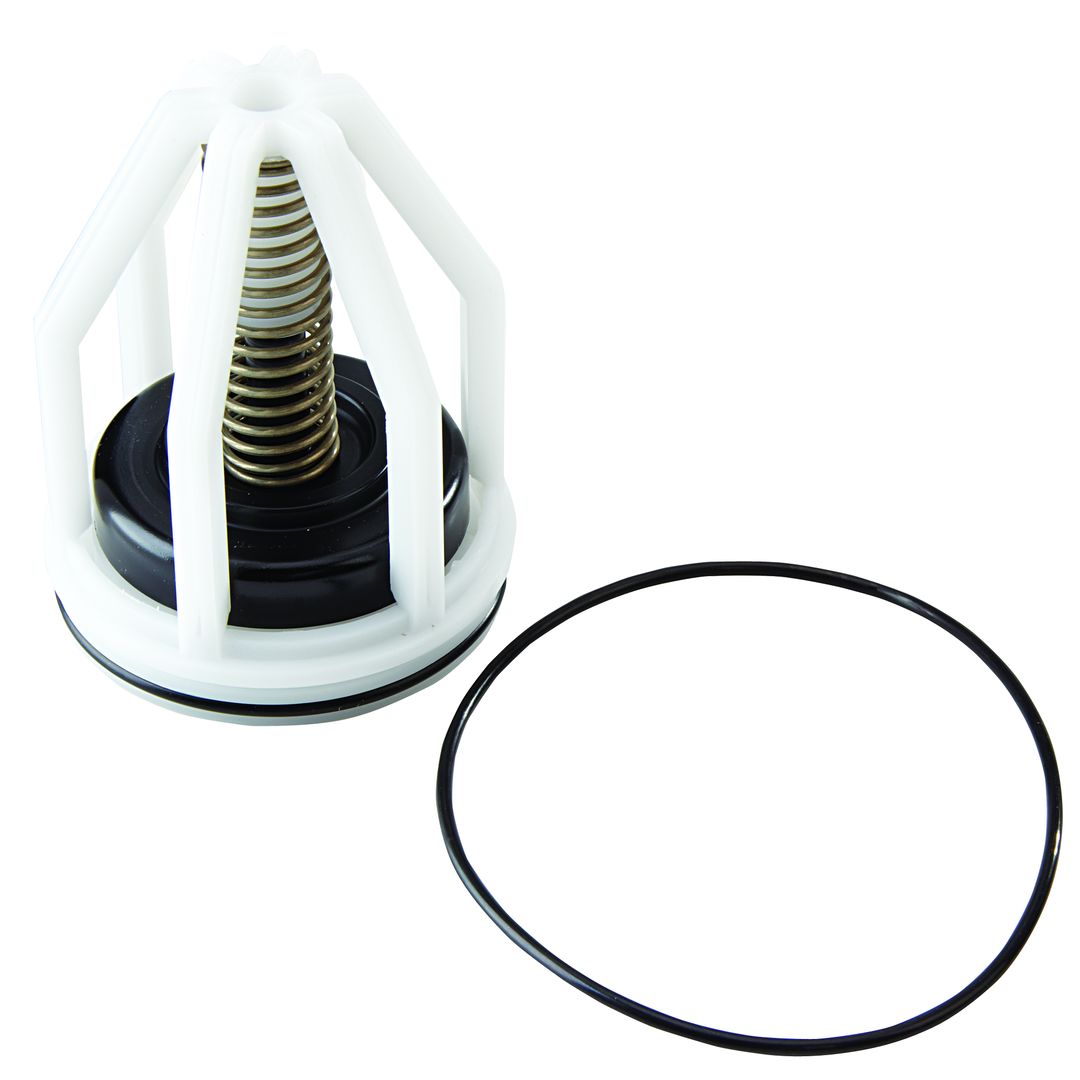

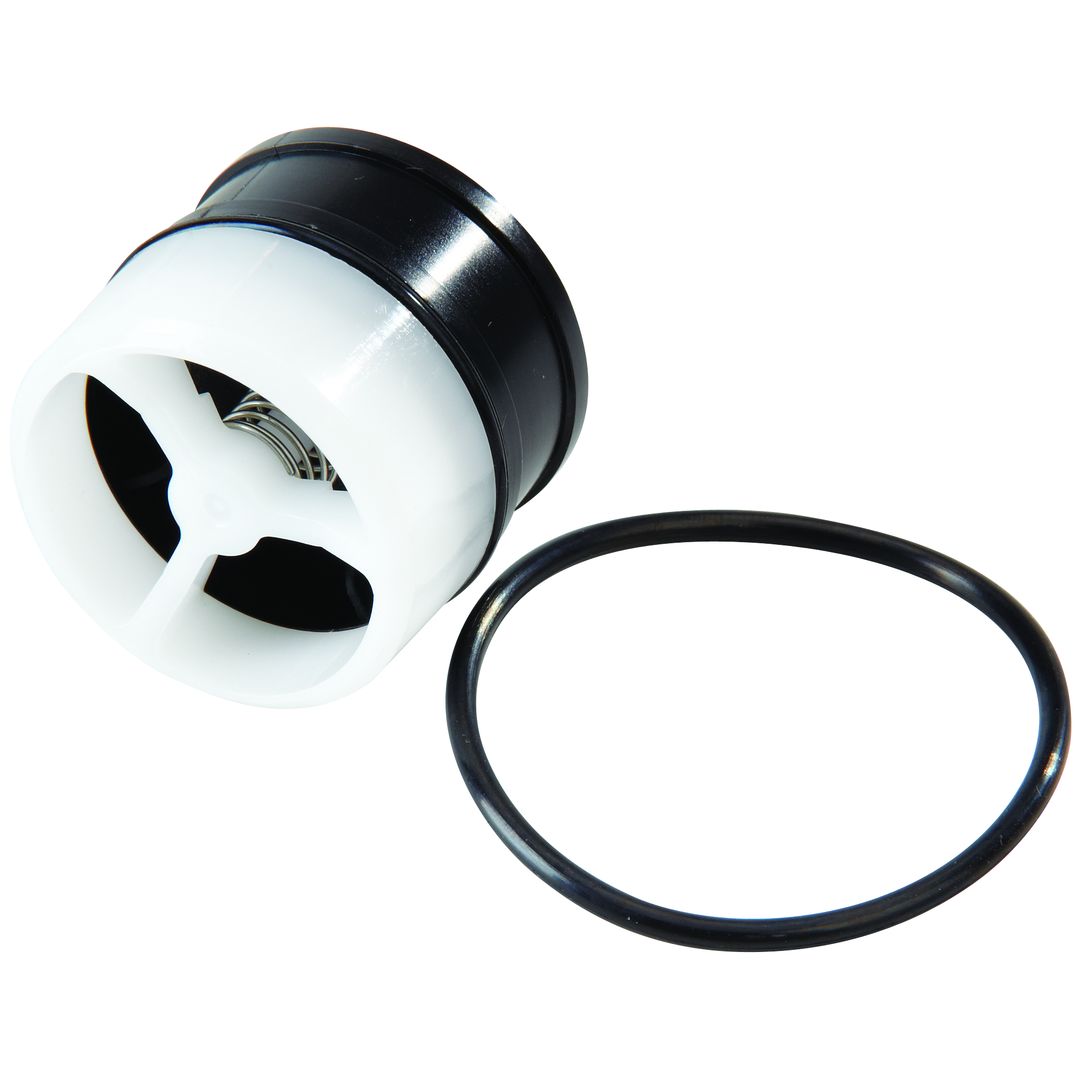

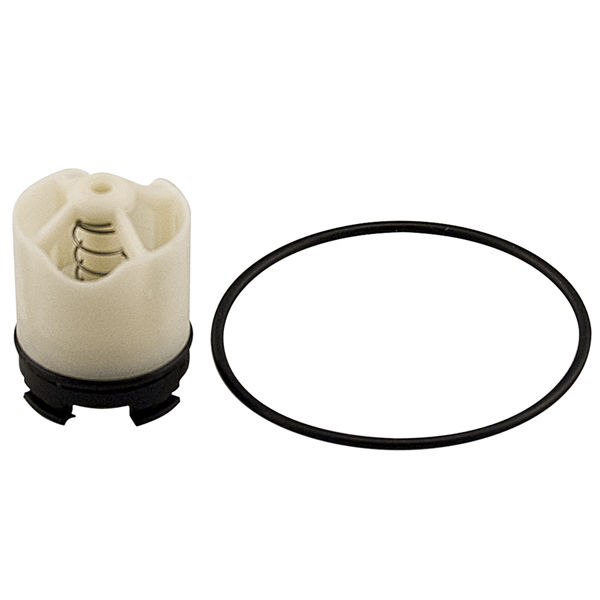

RK 007-CK4 1/2

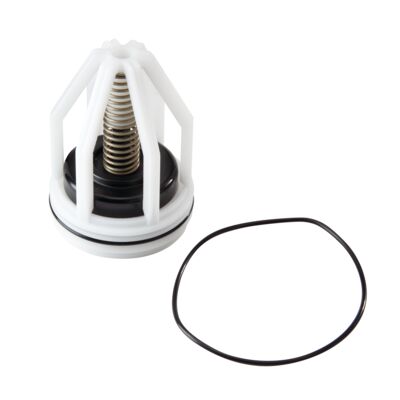

First or Second Check Kit |
</br>LF007, 007</br> |
Seat, Seat O-ring, Disc Assembly, Spring, Check Cage, Cover O-ring</br> |
|

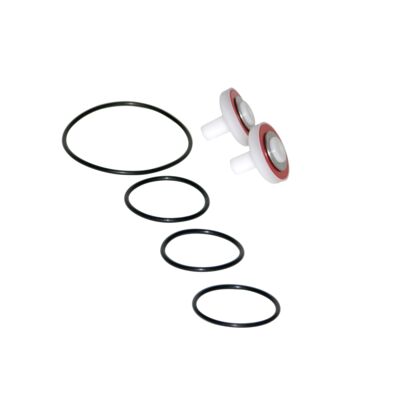

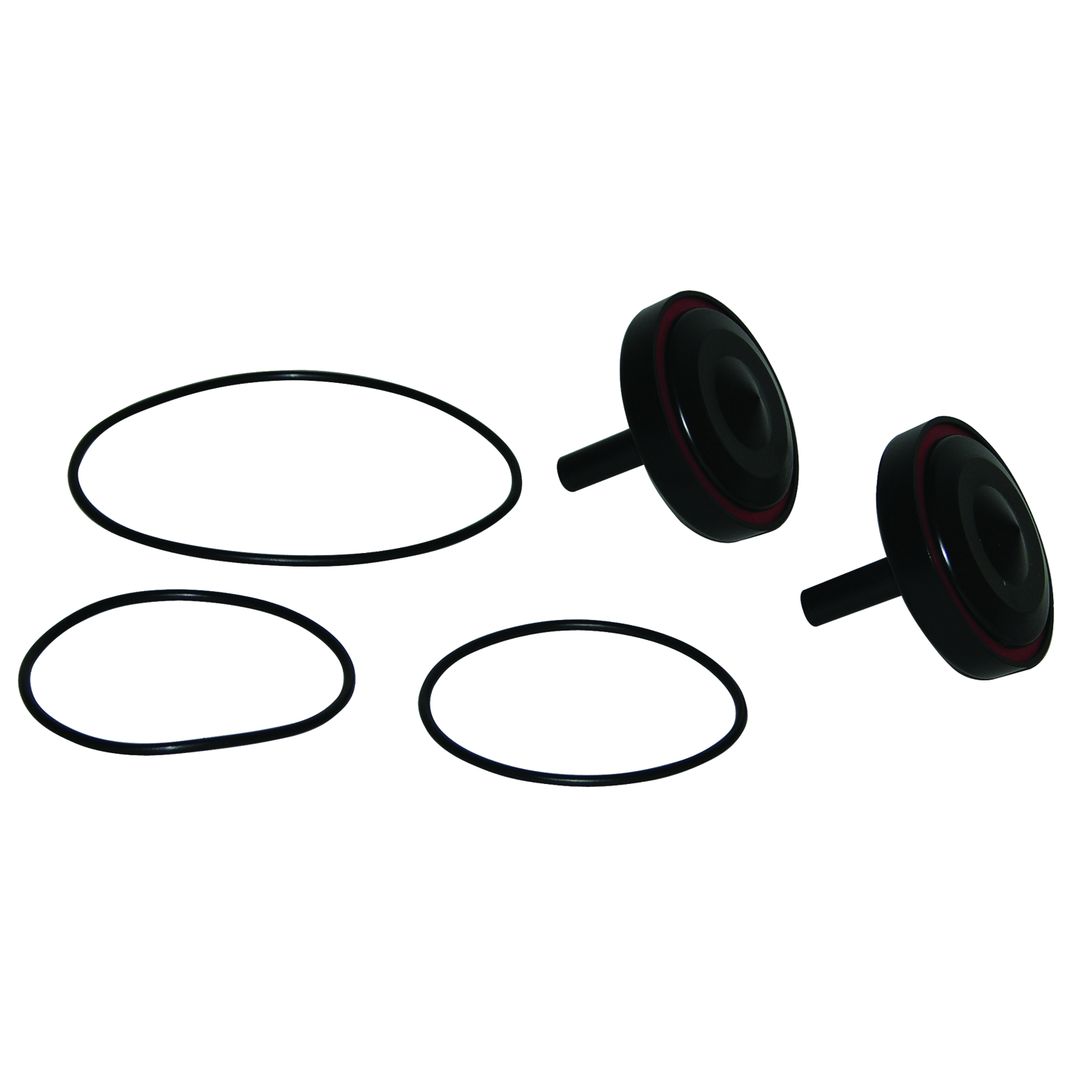

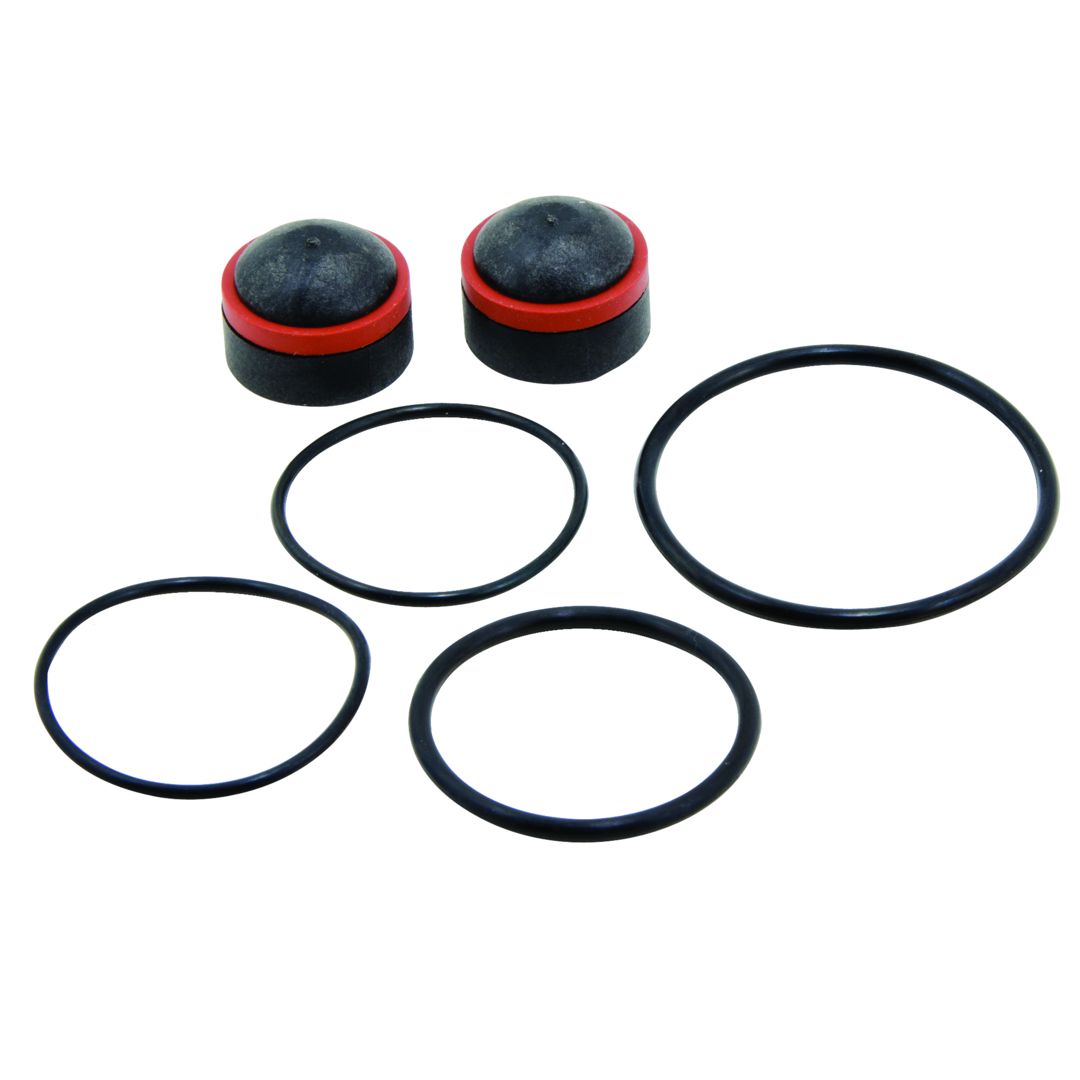

RK 007-RT 1/2
Complete Rubber Parts Kit |
</br>007</br> |
Cover O-ring, 2 Disc Assemblies, 2 Seat O-rings</br> |
|

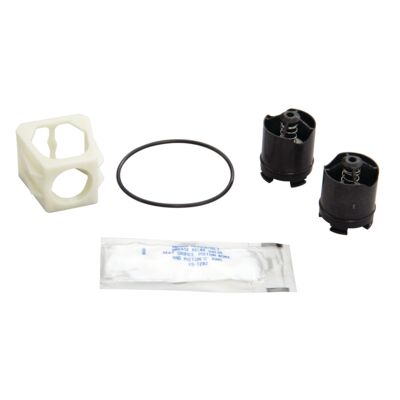

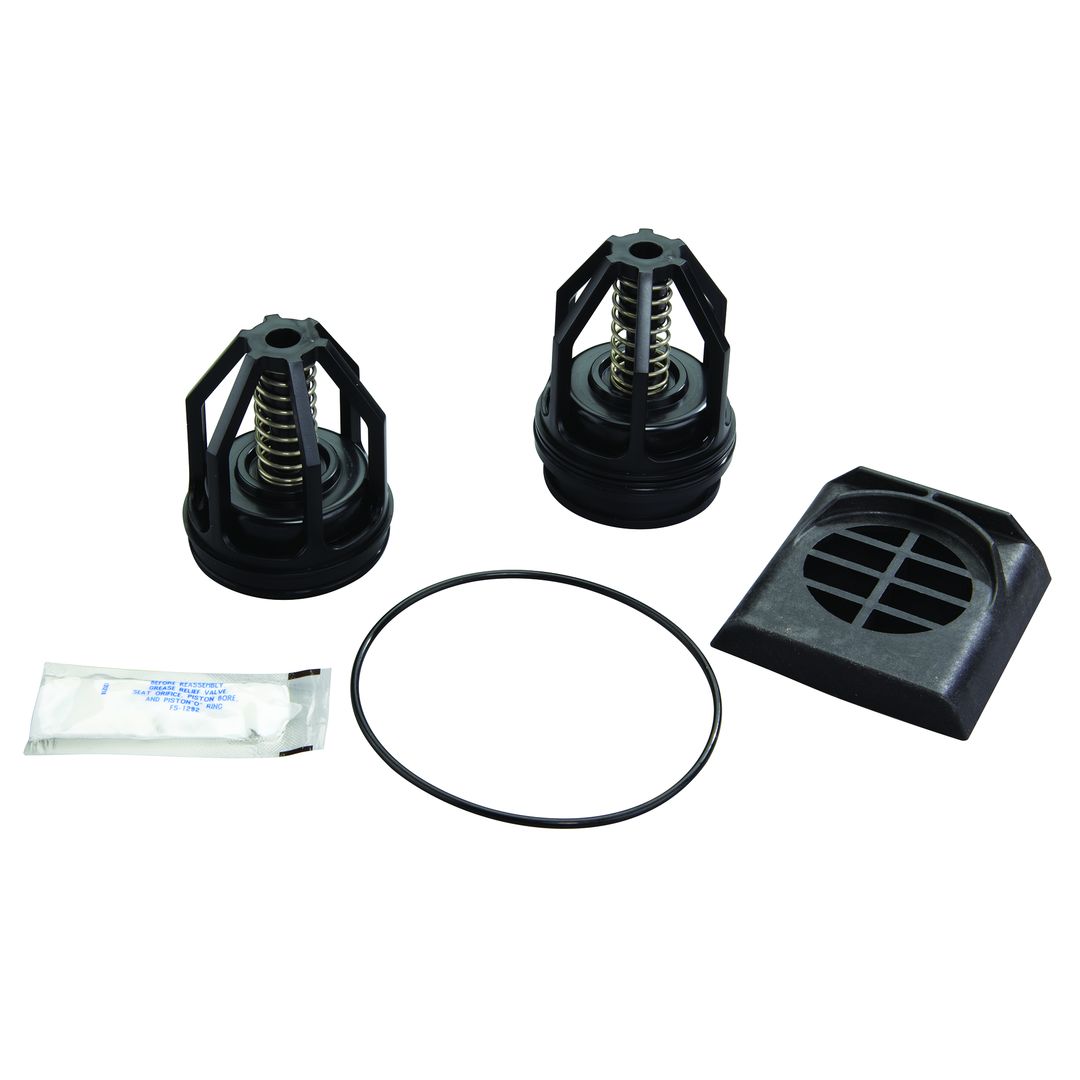

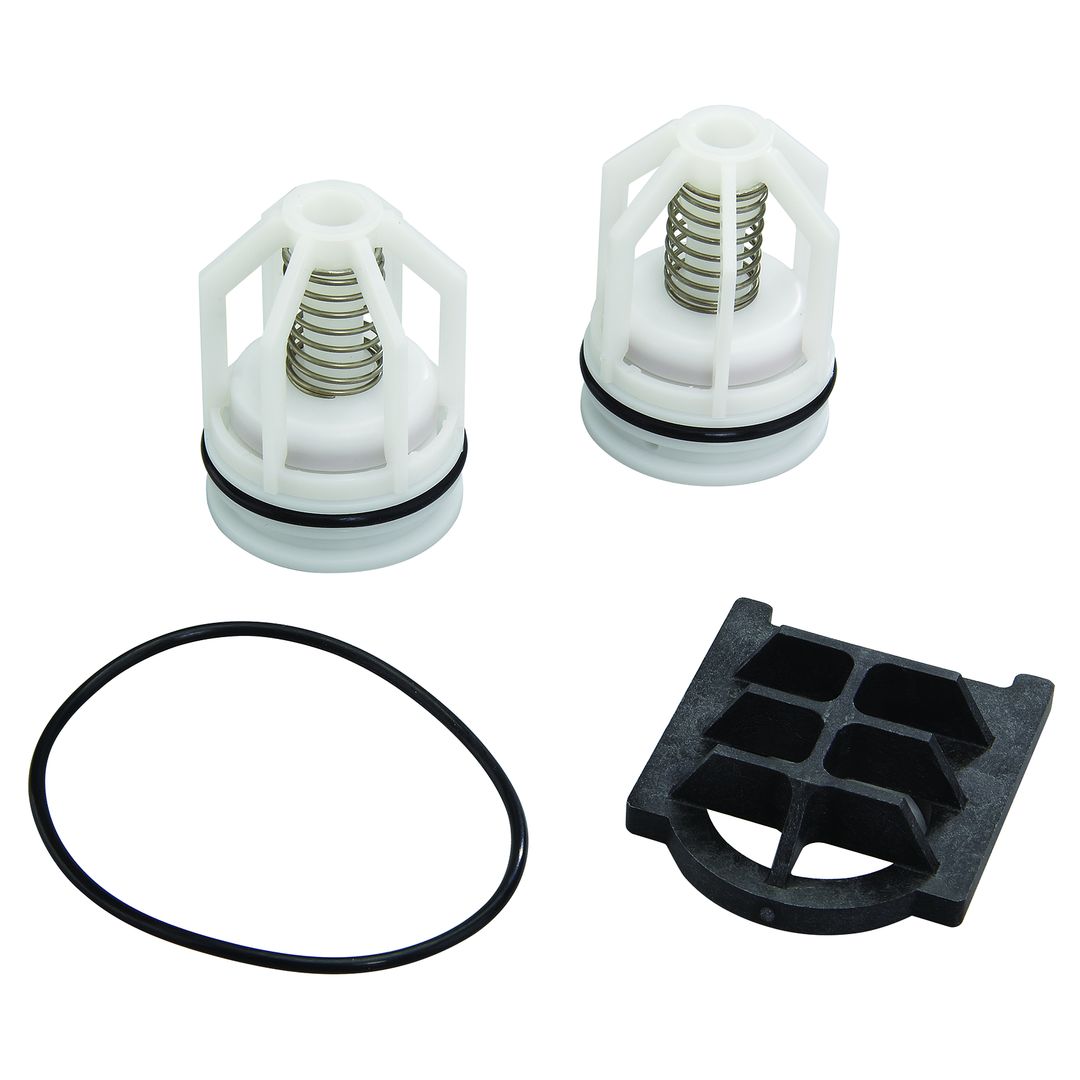

RK 007-T 1/2
Total Repair Kit |
</br>007</br> |
First Check Repair Kit, Second Check Repair Kit, Retainer, Cover O-ring</br> |
|
RK 007M1-C
Cover Kit |
</br>007M1</br> |
Cover, Cover O-ring</br> |
|
RK 007M1-CK1 1 1/2-2
First Check Kit |
</br>LF007M1, 007M1</br> |
Seat, Seat O-ring, Disc Assembly, Spring, Check Cage, Cover O-ring</br> |
|
RK 007M1-CK2 1 1/2-2
Second Check Kit |
</br>LF007M1, 007M1</br> |
Seat, Seat O-ring, Disc Assembly, Spring, Check Cage, Cover O-ring</br> |
|

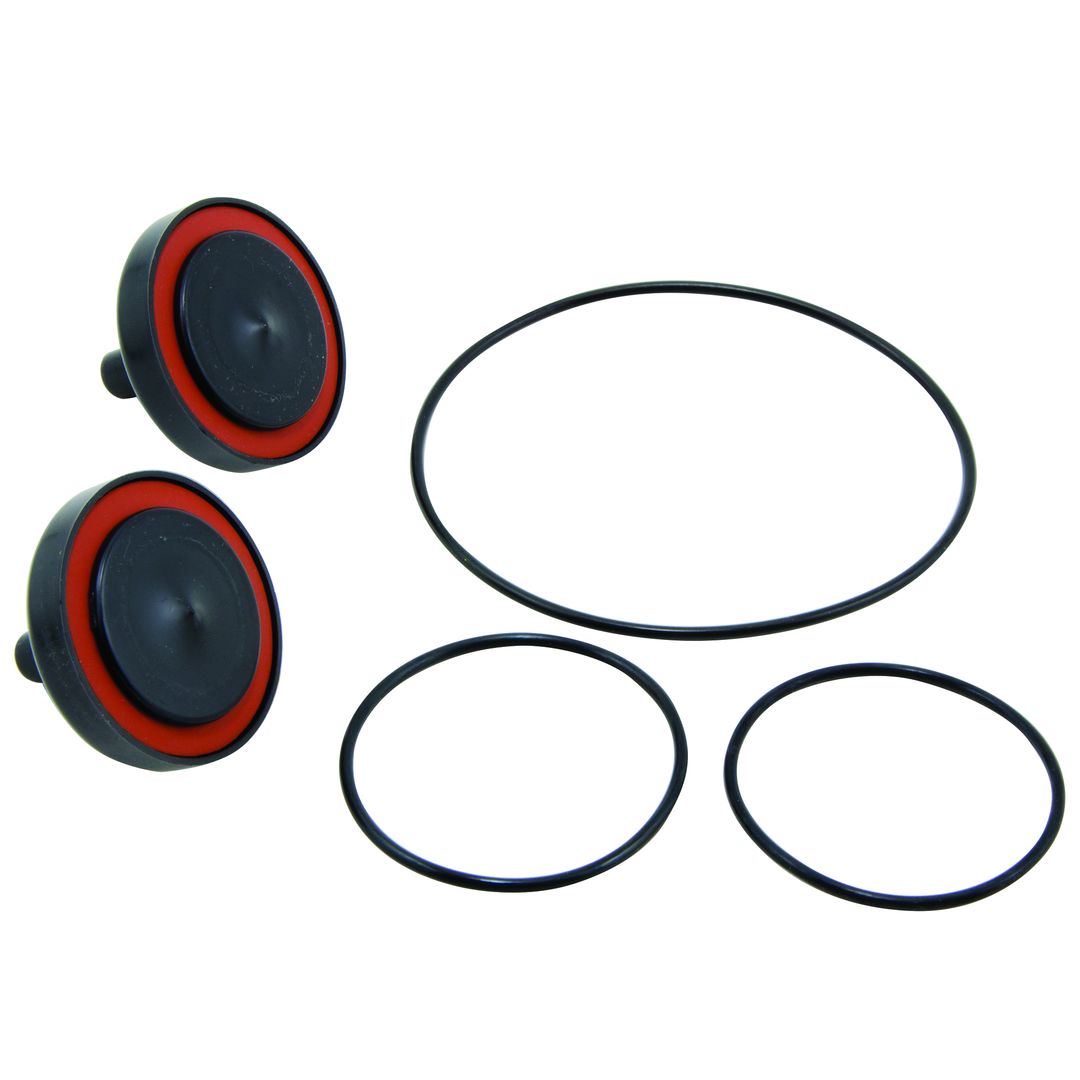

RK 007M1-RT 1 1/2-2
Complete Rubber Parts Kit |
</br>LF007M1, 007M1</br> |
Cover O-ring, 2 Disc Assemblies, 2 Seat O-rings</br> |
|

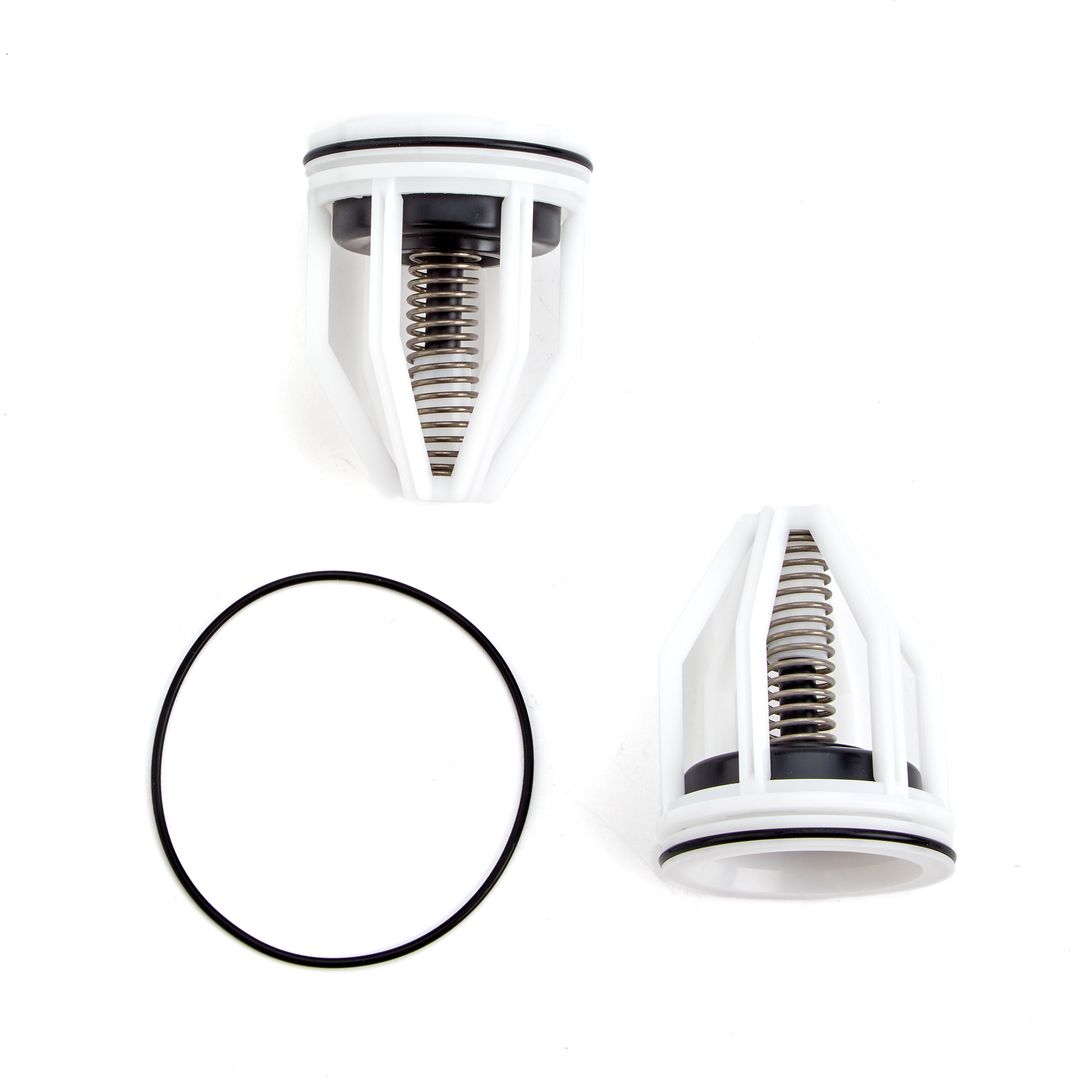

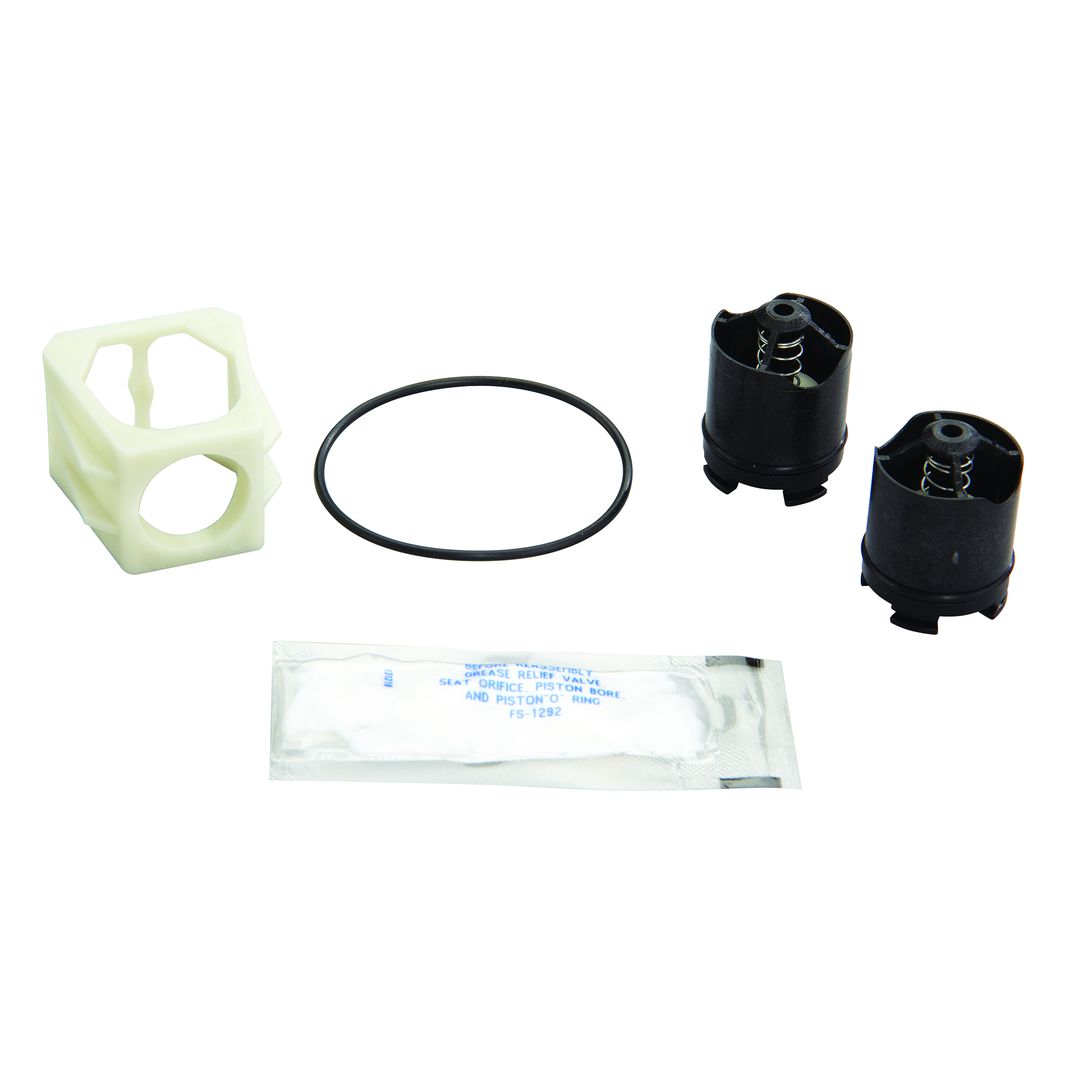

RK 007M1-T 1 1/2-2
Total Repair Kit |
</br>007M1</br> |
First Check Repair Kit, Second Check Repair Kit, Cover O-ring</br> |
|
LFRK 007M1-C 3/4-1
Cover Kit |
</br>007M1</br> |
Cover, Cover O-ring</br> |
|

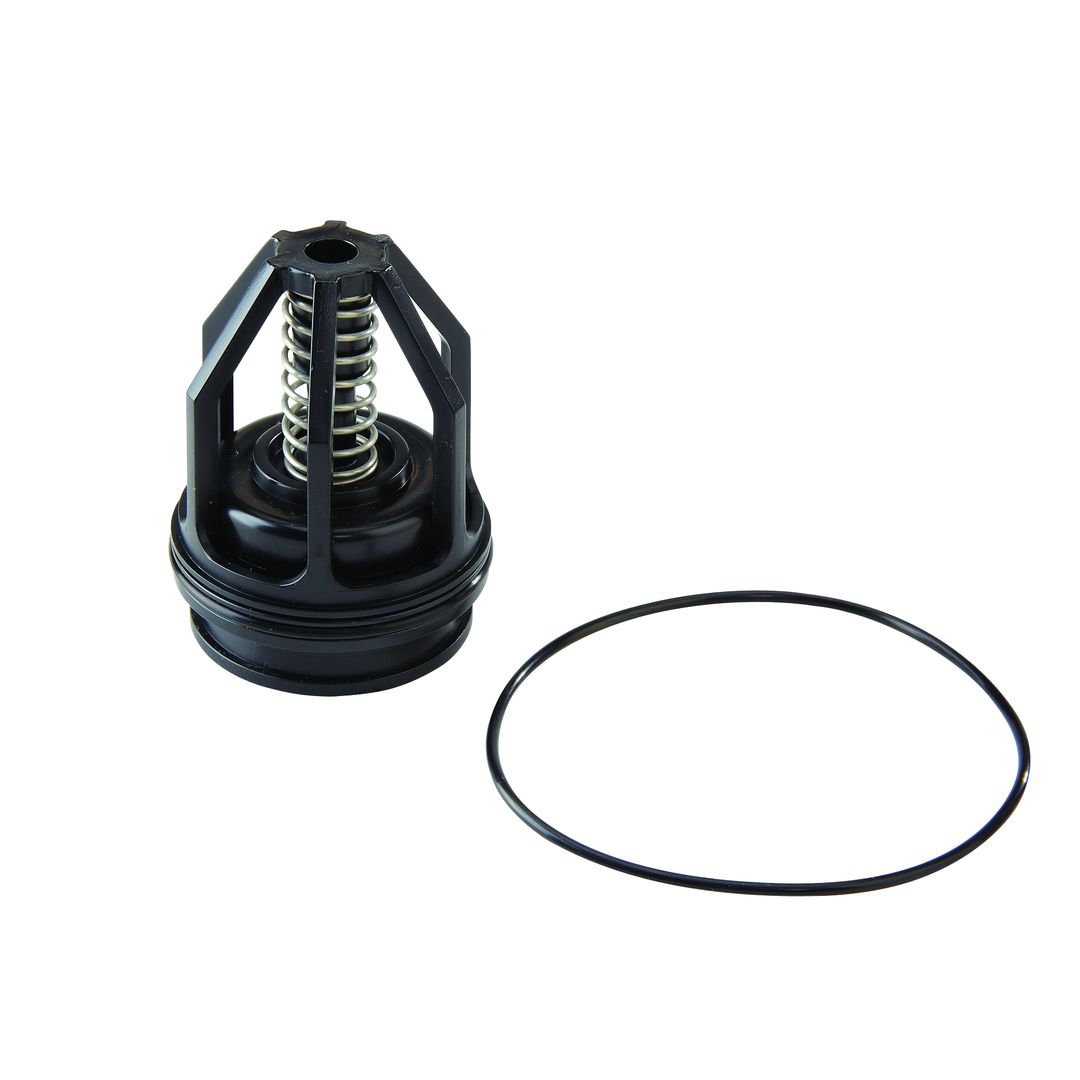

RK 007M1-CK4 3/4-1
First or Second Check Kit |
</br>LF007M1, 007M1</br> |
Seat, Seat O-ring, Disc Assembly, Spring, Check Cage, Cover O-ring</br> |
|
RK 007M1-RT 3/4-1
Complete Rubber Parts Kit |
</br>LF007M1, 007M1</br> |
Cover O-ring, 2 Disc Assemblies, 2 Seat O-rings</br> |
|

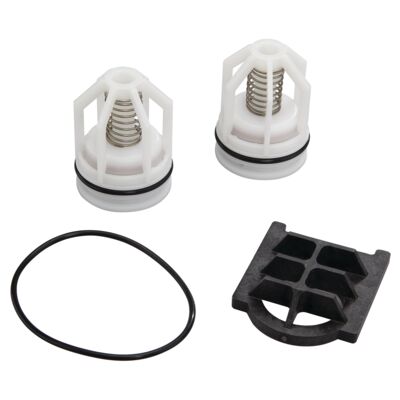

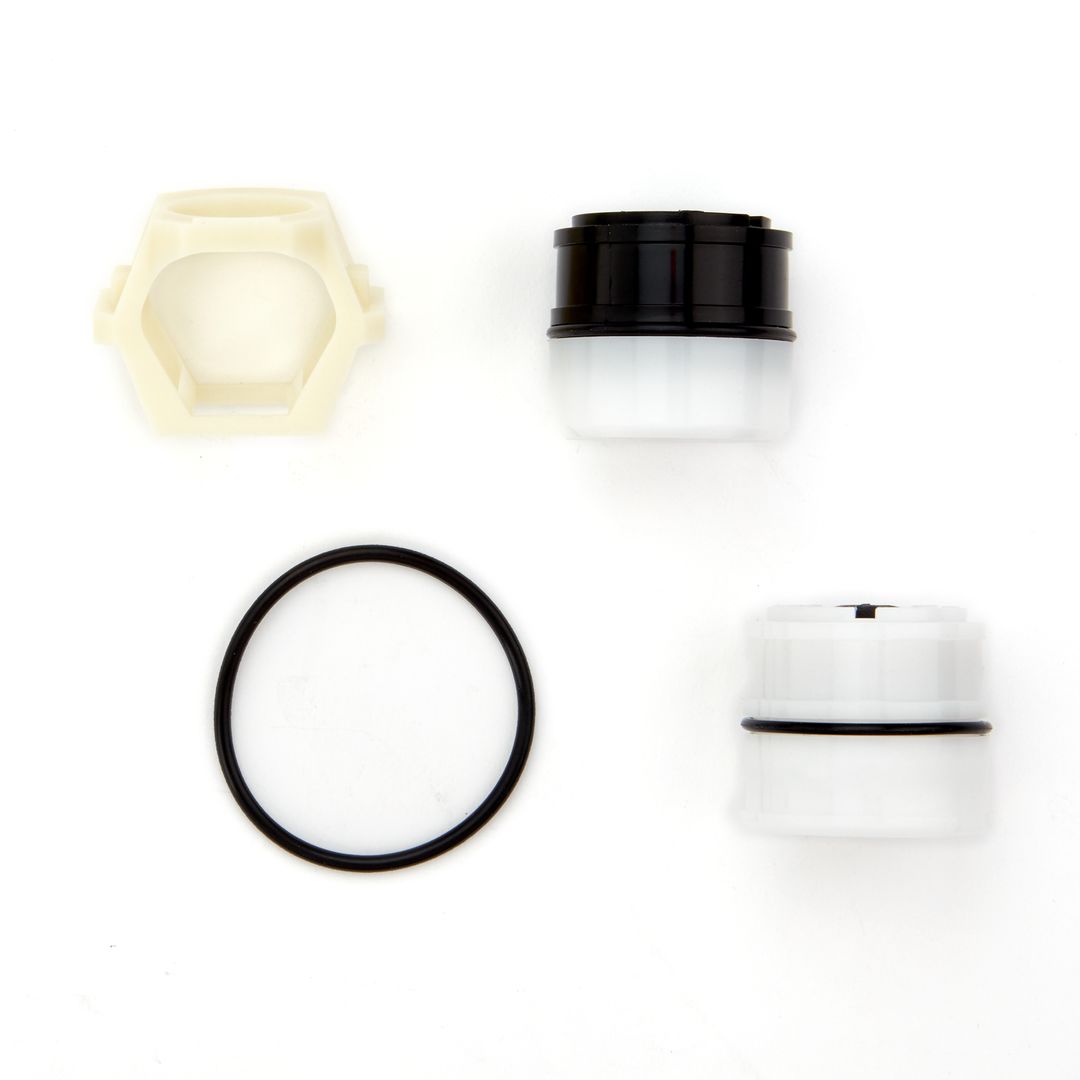

RK 007M1-T 3/4-1
Total Repair Kit |
</br>007M1</br> |
First Check Repair Kit, Second Check Repair Kit, Retainer, Cover O-ring</br> |
|

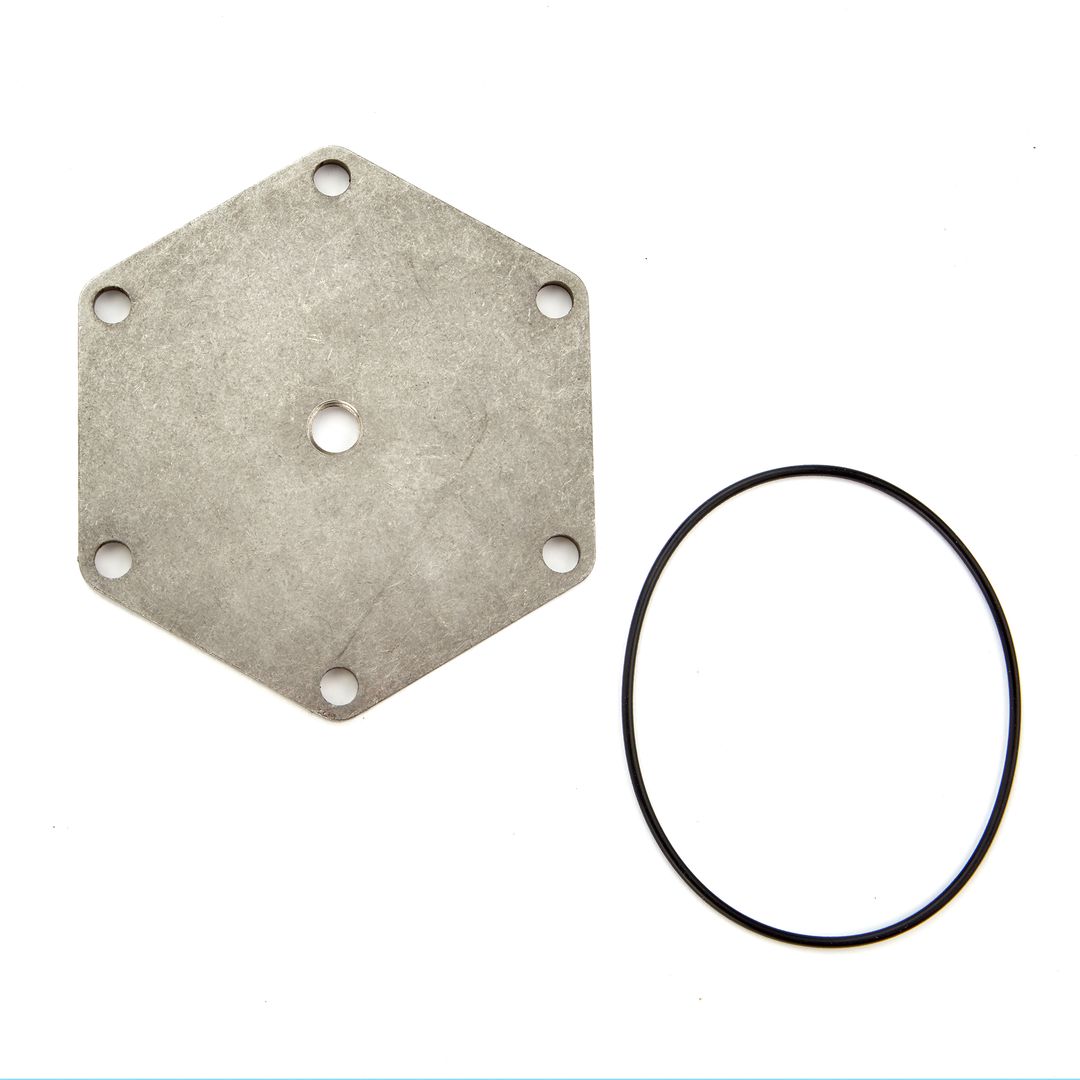

RK 007DCDA-C 2
Cover Kit |
</br>007DCDA</br> |
Cover, Cover O-ring</br> |
|

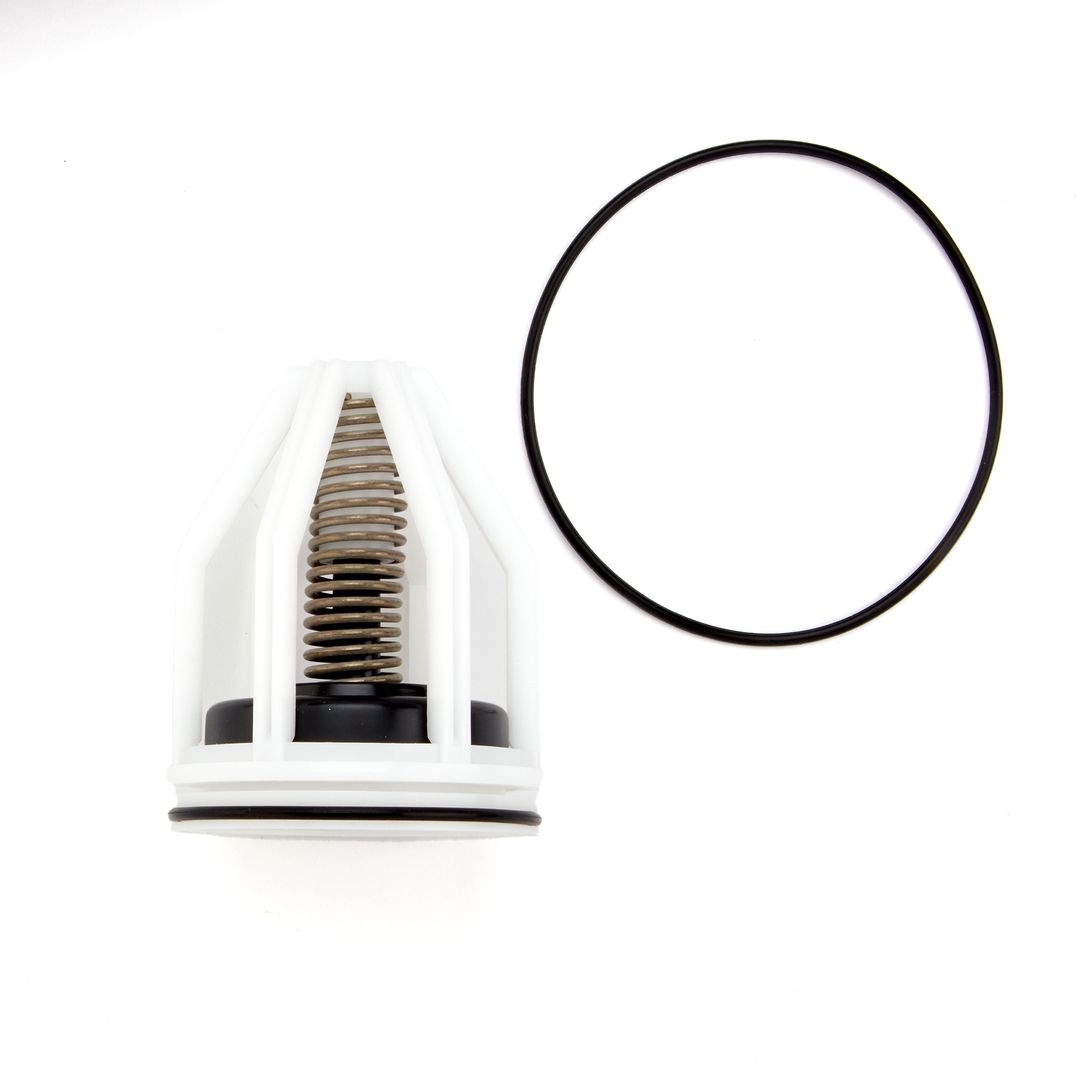

RK 007DCDA-CK1
First Check Kit |
</br>007DCDA</br> |
Seat, Seat O-ring, Disc Assembly, Spring, Spring Retainer, Check Cage, Cover O-ring</br> |
|

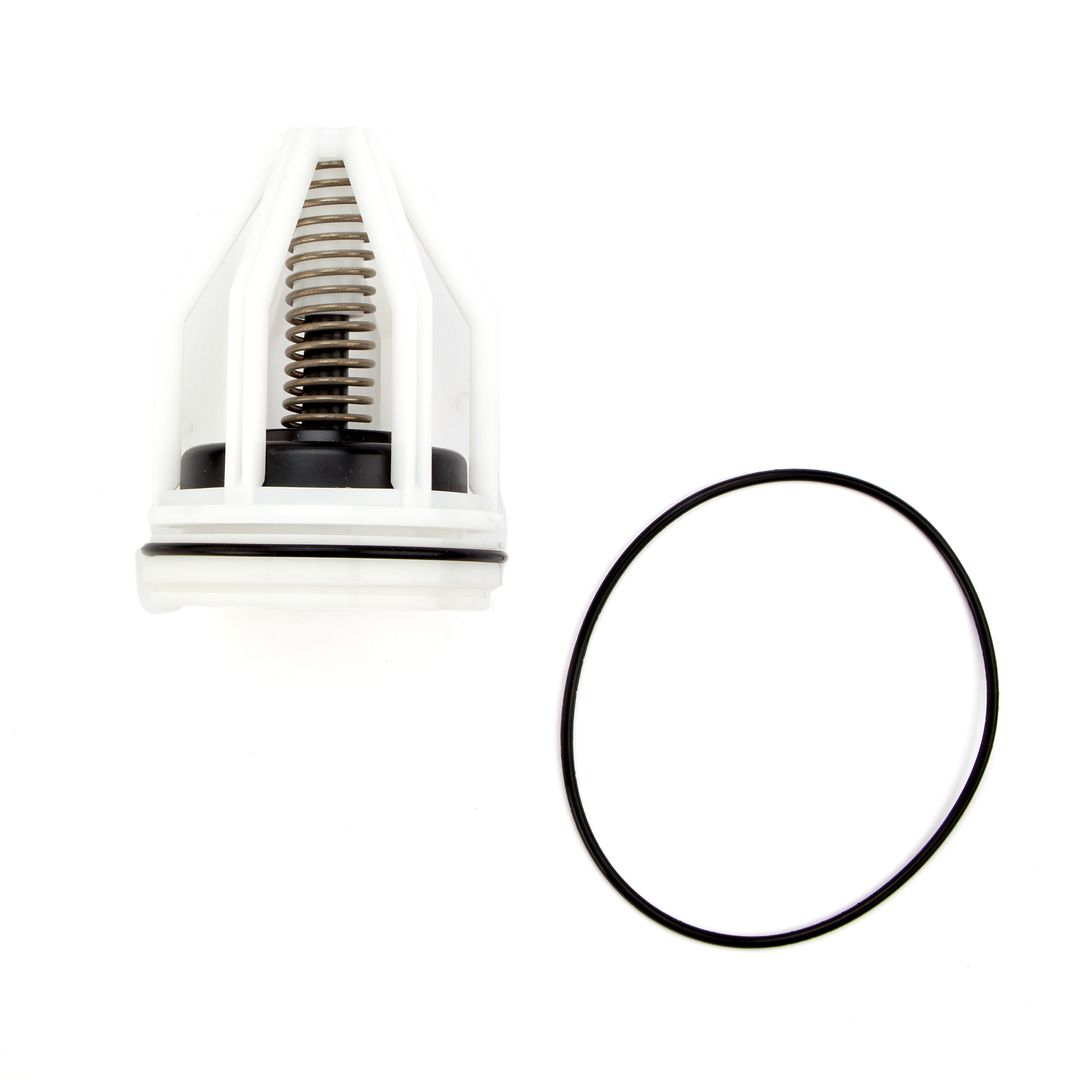

RK 007DCDA-CK2
Second Check Kit |
</br>007DCDA</br> |
Seat, Seat O-ring, Disc Assembly, Spring, Spring Retainer, Check Cage, Cover O-ring</br> |
|

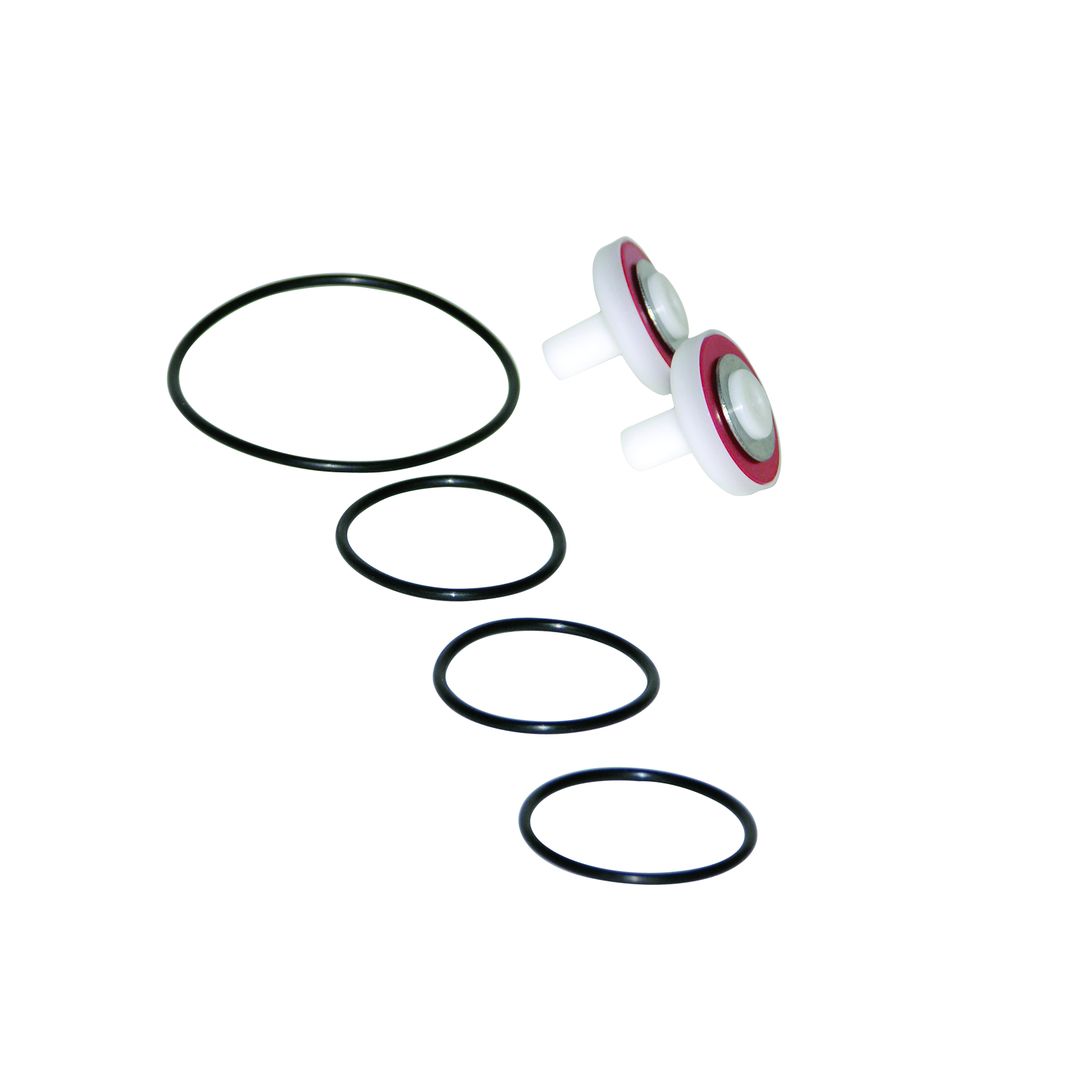

RK 007DCDA-RT 2
Complete Rubber Parts Kit |
</br>007DCDA</br> |
2 Seat Discs, 2 Seat O-rings, Cover O-ring</br> |
|

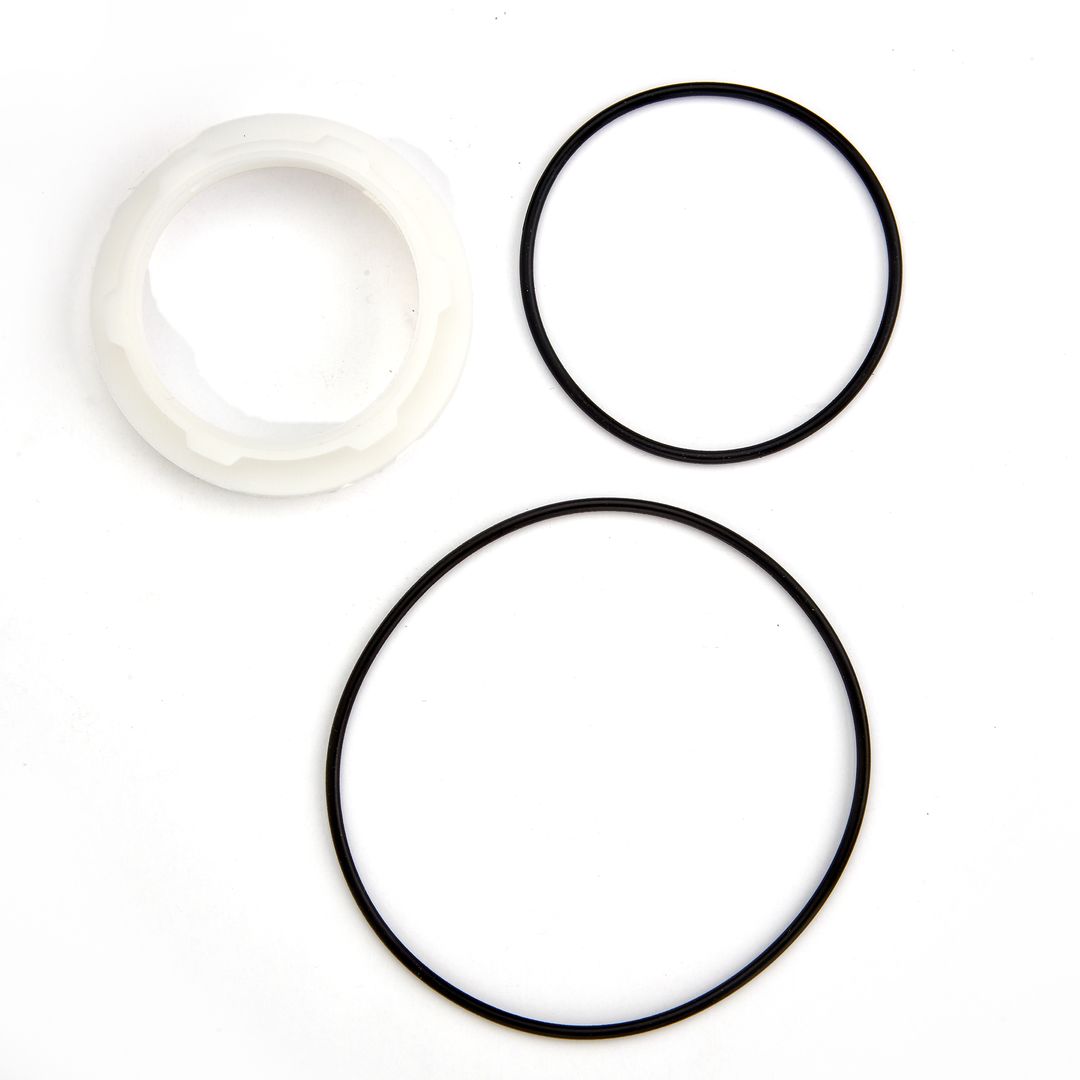

RK 007DCDA-S1 2
Seat Kit |
</br>007DCDA</br> |
Seat, Seat O-ring, Cover O-ring</br> |
|

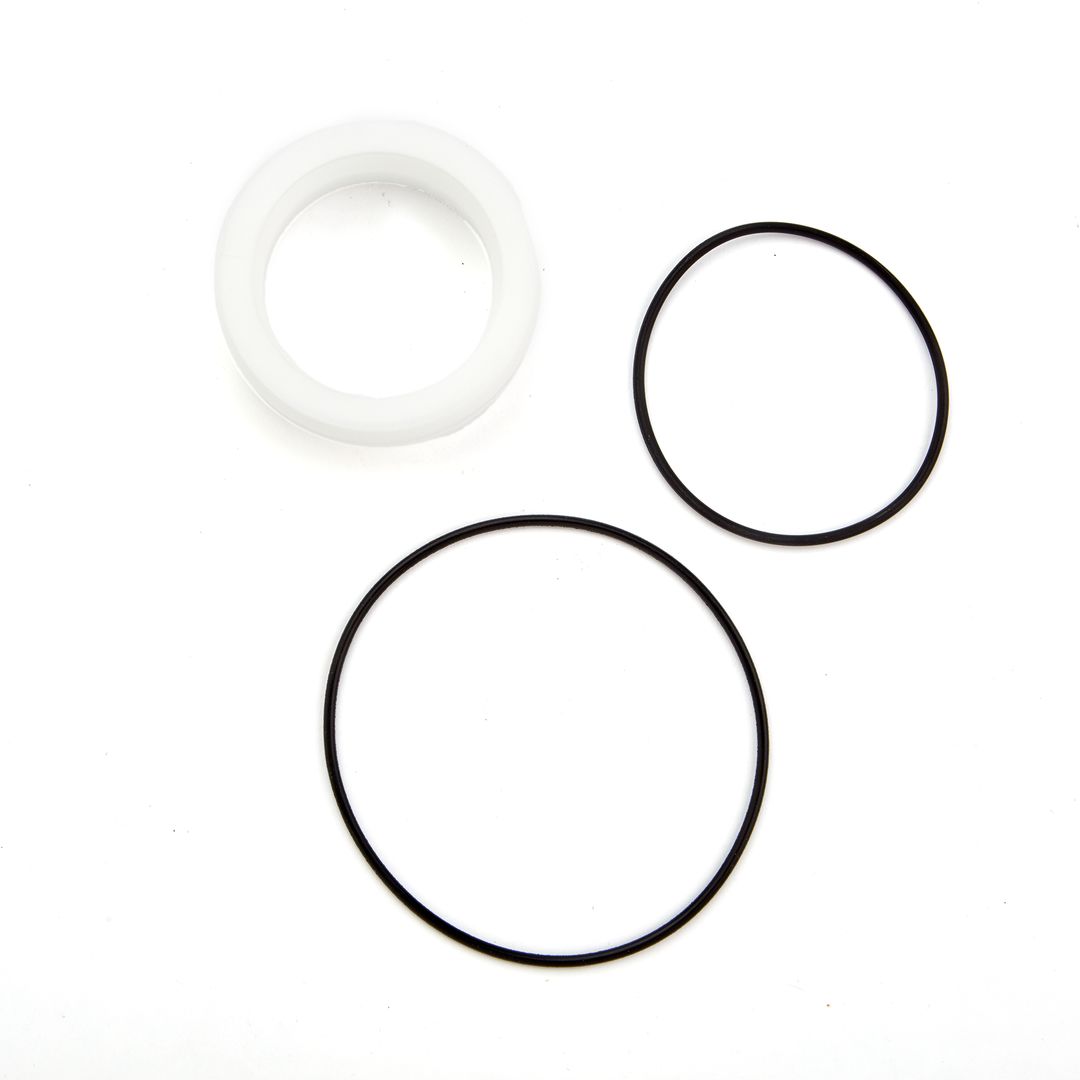

RK 007DCDA-S2 2
Seat Kit |
</br>007DCDA</br> |
Seat, Seat O-ring, Cover O-ring</br> |
|

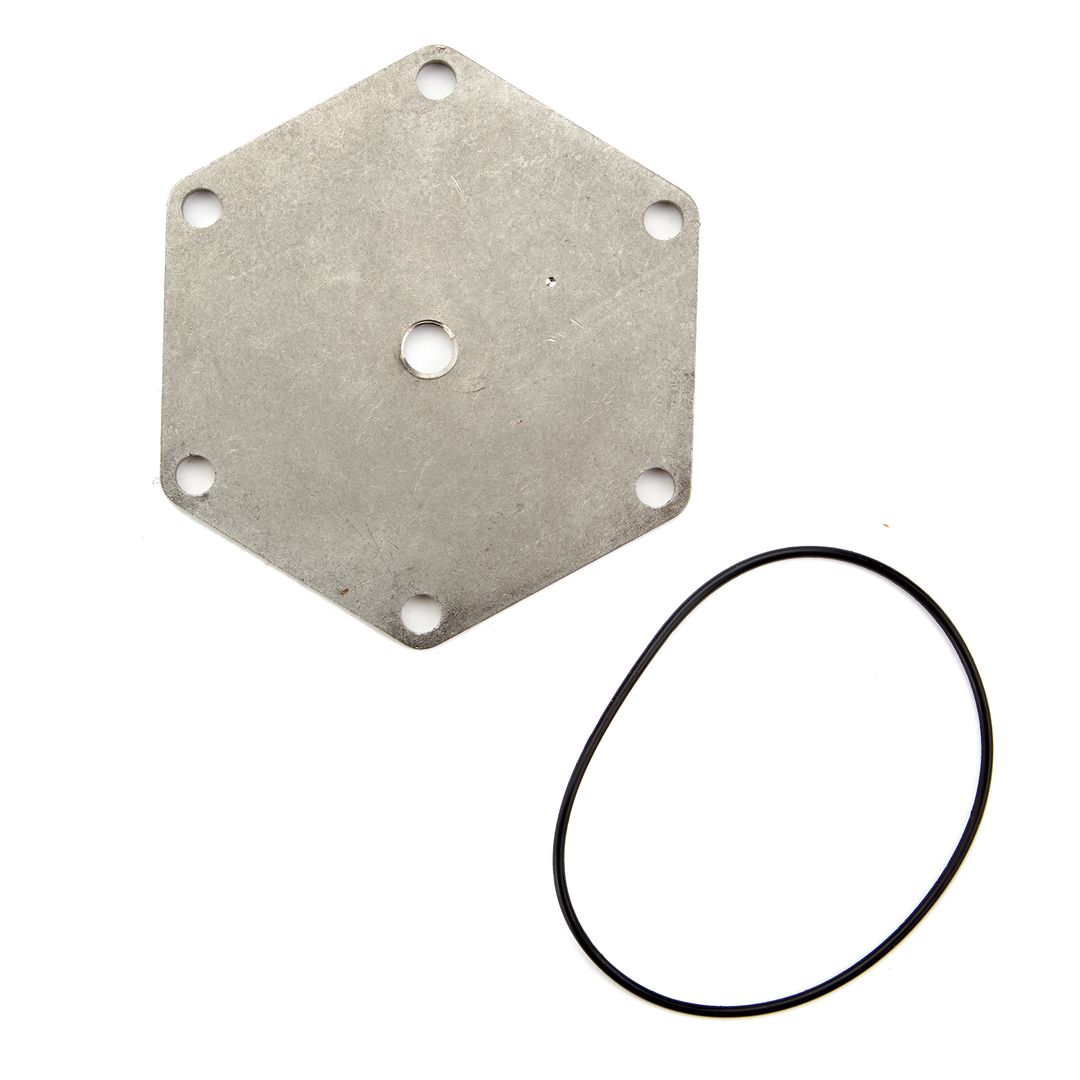

RK 007M2-C
Cover Kit |
</br>007M2</br> |
Cover, Cover O-ring</br> |
|
RK 007M2-CK1 1 1/4-1 1/2
First Check Kit |
</br>007M2</br> |
Seat, Seat O-ring, Disc Assembly, Spring, Check Cage, Cover O-ring</br> |
|
RK 007M2-CK2 1 1/4-1 1/2
Second Check Kit |
</br>007M2</br> |
Seat, Seat O-ring, Disc Assembly, Spring, Check Cage, Cover O-ring</br> |
|
RK 007M2-RT 1 1/4-1 1/2
Complete Rubber Parts Kit |
</br>LF007M2, 007M2</br> |
Cover O-ring, 2 Disc Assemblies, 2 Seat O-rings</br> |
|
RK 007M2-T 1 1/4-1 1/2
Total Repair Kit |
</br>007M2</br> |
First Check Repair Kit, Second Check Repair Kit, Retainer</br> |
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
