D007M3-QT-S 3/4

Discontinued

Part of the 007 Series

Ordering Code: 0078007

UPC: 098268301267

Lead Free: NO

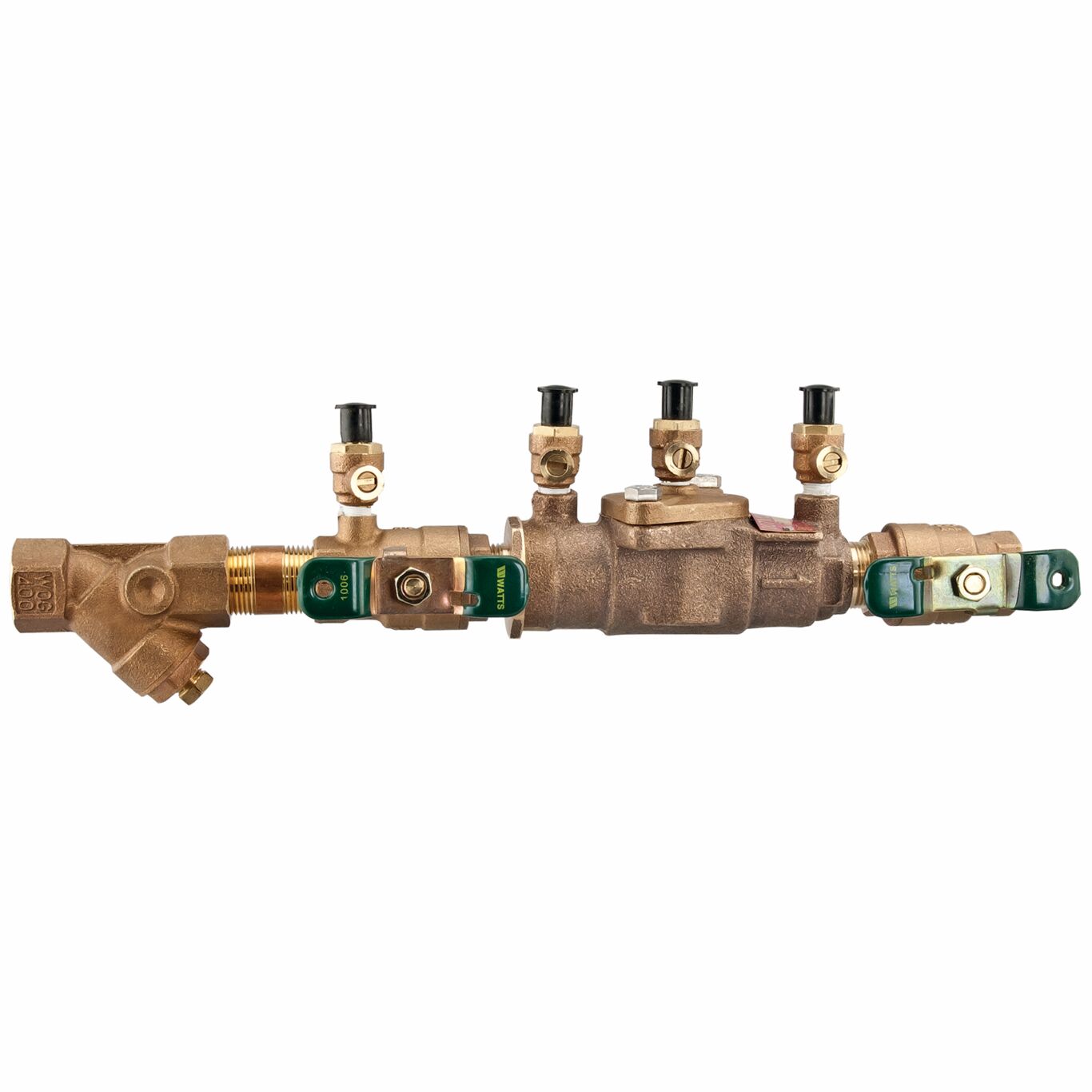

3/4 In Bronze Double Check Valve Backflow Preventer Assembly, Quarter Turn Shutoff, Bronze Strainer, Single Top Entry, Domestic

  • Bronze body for durability
  • Modular compact design
  • Replaceable seats and seat discs
  • Strainer
Specifications
ArmorTek Technology No
Backflow Preventer Type Double Check Valve Assembly
Body Finish Cast Bronze
Body Material Cast Bronze
Brand Watts
Buy American Act Compliant YES
Bypass No
Cap And Tether No
EAN 098268301267
Elbow Fitting No
Hazard Protection Level Non Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 3/4 IN
Inlet Connection Type Female Threaded
Inlet Shutoff Valve Type Quarter Turn Ball Valve
Inlet Thread Type NPT
Lead Free NO
Maximum Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 3/4 IN
Outlet Connection Type Female Threaded
Outlet Shutoff Valve Type Quarter Turn Ball Valve
Outlet Thread Type NPT
Part Number 0078007
Polymer Coating No
Protection Type Backpressure and Backsiphonage
Series 007
Strainer Yes
Technologies Does Not Apply To Product
Tradename None
