2000B-HC
×
![]()
Part of the 2000B Series
Ordering Code: 0691939
UPC: 098268267051
Lead Free: NO

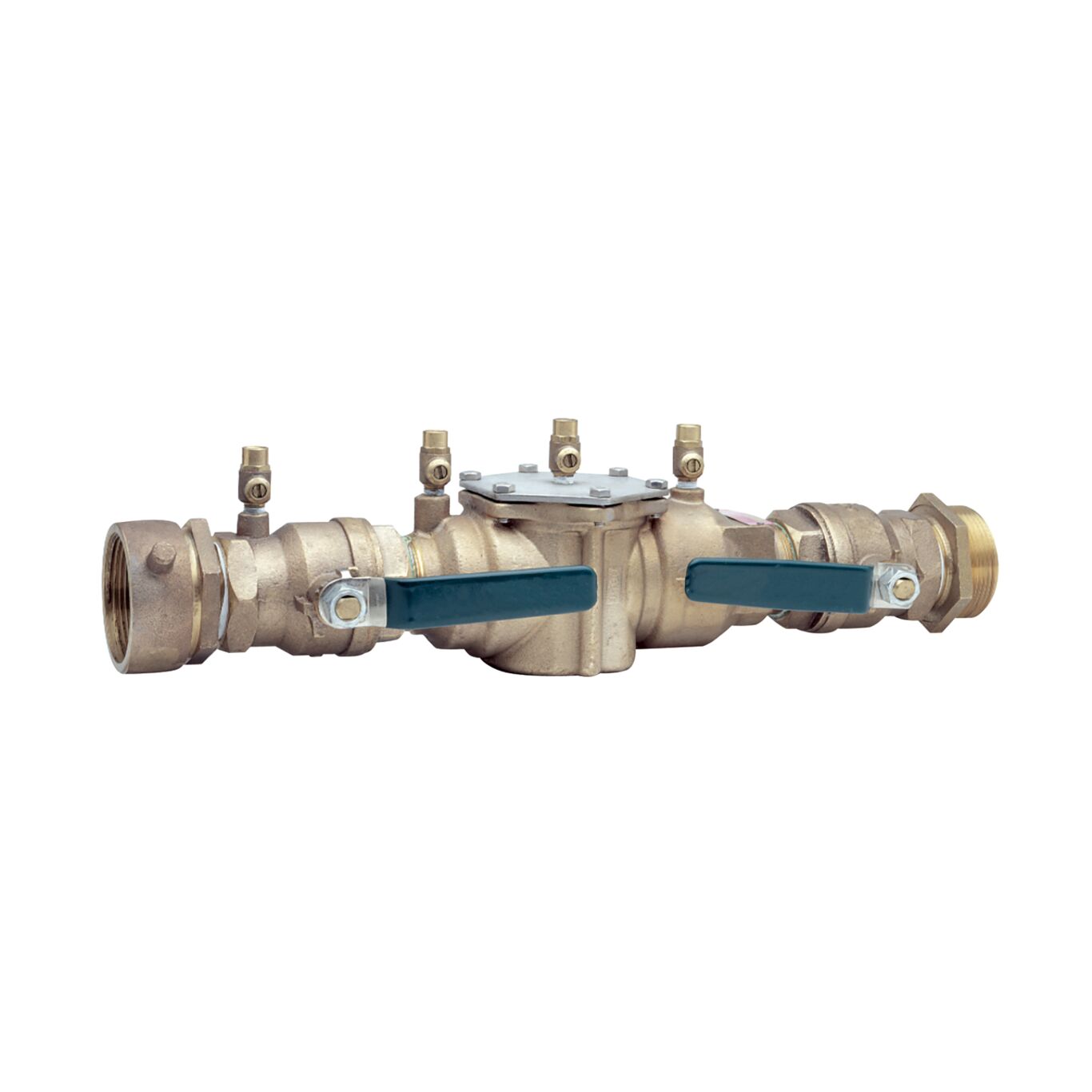

2 In Bronze Double Check Valve Backflow Preventer Assembly, Quarter Turn Shutoff, Fire Hydrant Fittings
Ames Fire and Waterworks Series 2000B double check valve backflow preventer assembly prevents the backflow of contaminated water into the potable water supply. It consists of a bronze body construction that is easy to maintain and service. It is ideal at referenced cross-connections identified as non-health hazard applications. Check with local inspection authorities for installation requirements. The maximum working pressure is 175psi (12.06 bar).
Features
- Bronze body for durability
- Short lay length
- Female hydrant thread inlet, male hydrant thread outlet with quarter turn shutoffs
- Internal parts serviceable in line from top of unit
| Specifications | |
|---|---|
| ArmorTek Technology | No |
| Backflow Preventer Type | Double Check Valve Assembly |
| Body Finish | Cast Bronze |
| Body Material | Bronze |
| Body Pattern | Straight |
| Brand | Ames Fire & Waterworks |
| Bypass | No |
| Bypass Size | Does Not Apply To Product |
| Cap And Tether | No |
| Disc Material | Rubber |
| EAN | 098268267051 |
| Elbow Fitting | No |
| Hazard Protection Level | Non Health Hazard |
| Hot And Harsh Water | No |
| Hydrant Connection | Yes |
| Inlet Connection Size | 2 IN |
| Inlet Connection Type | Female Threaded |
| Inlet Shutoff Valve Type | Quarter Turn Ball Valve |
| Inlet Thread Type | FPT |
| Lead Free | NO |
| Maximum Temperature-Fahrenheit | 140 |
| Maximum Working Pressure-BAR | 12.10 |
| Maximum Working Pressure-PSI | 175 |
| Meter Type | No Meter |
| Minimum Temperature - Celsius | 0.50 |
| Minimum Temperature-Fahrenheit | 33 |
| Outlet Connection Size | 2 IN |
| Outlet Connection Type | Female Threaded |
| Outlet Shutoff Valve Type | Quarter Turn Ball Valve |
| Outlet Thread Type | FPT |
| Part Number | 0691939 |
| Polymer Coating | No |
| Pressure Operation | Continuous |
| Protection Type | Backpressure and Backsiphonage |
| Seat Material | Rubber |
| Series | 2000B |
| Strainer | No |
| Tradename | None |
