774-LF 3 Watts

Part of the 774 Series

Ordering Code: 0437710

UPC: 098268878080

Lead Free: YES

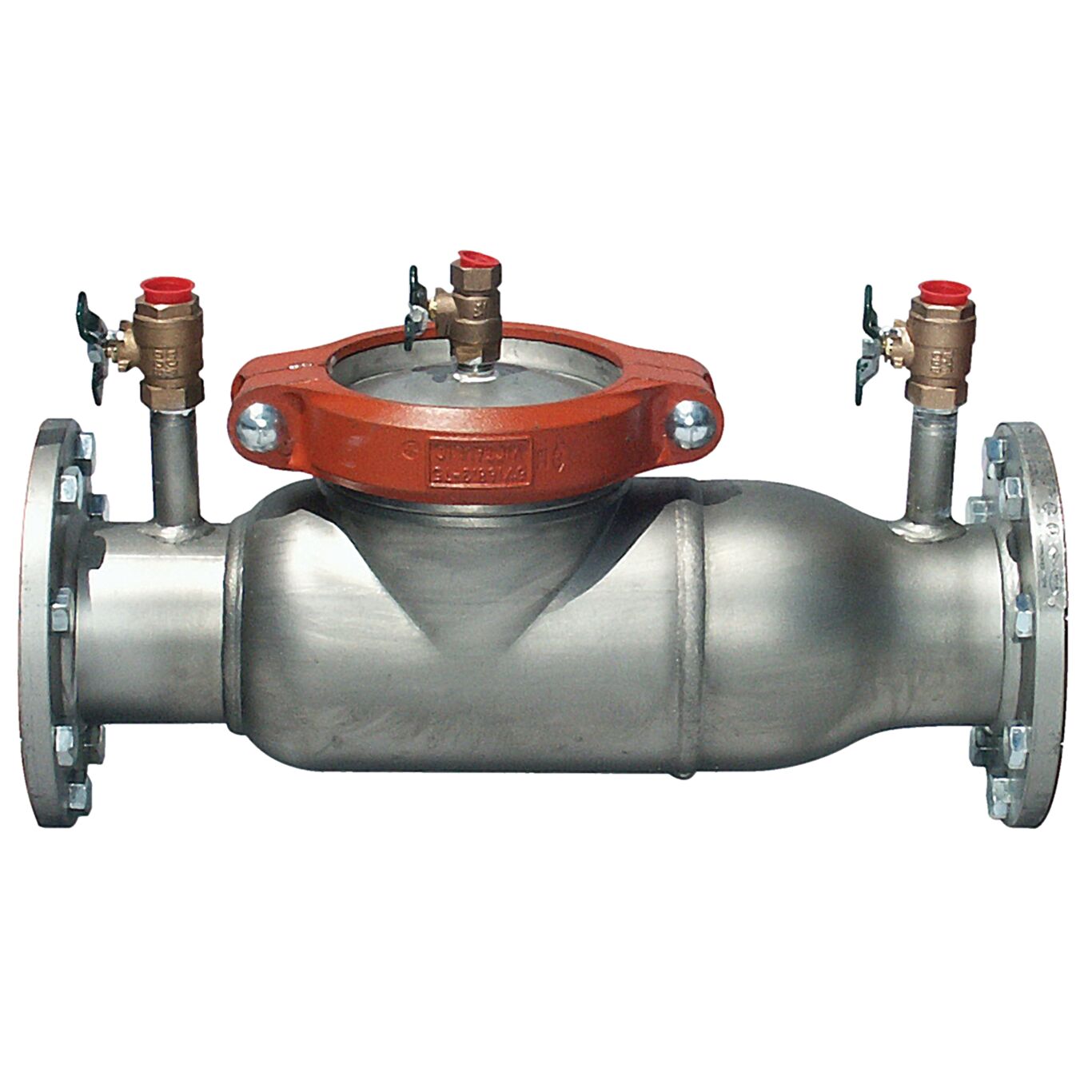

3 In Ss Double Check Valve Assembly, No Shutoff, Short Lay Length

This 3 inch lead free double check valve assembly is designed to prevent the reverse flow of contaminated water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. It is ideal for protection at cross-connections identified as non-health hazard applications and from other contaminants found at the service line entrance. This compact and short lay length design with a single access cover for easy maintenance is approved with the arrow on the valve body pointing in the direction of the flow for horizontal, vertical and retrofit installations. This assembly without the shutoff valves consists of a lightweight stainless steel body, spring loaded cam-check valves, and test cocks.

Product Features

  • Thermoplastic and stainless steel check valves for trouble free operation
  • Stainless steel construction provides long term corrosion protection and maximum strength
  • Single top access cover with two-bolt grooved style coupling for easy maintenance
  • Compact construction allows for smaller vaults and enclosures
Backflow Preventer Type Double Check Valve Assembly
Body Finish Stainless Steel
Body Material Stainless Steel
Body Pattern Does Not Apply To Product
BrandName Watts
Bypass No
Bypass Size Does Not Apply To Product
Cap And Tether No
Disc Material Does Not Apply To Product
Elbow Fitting No
Hazard Protection Level Non Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 3 IN
Inlet Connection Type Flanged Joint
Inlet Shutoff Valve Type No Shutoff Valve
Inlet Thread Type Does Not Apply To Product
LeadFree YES
Maximum Temperature-Fahrenheit 110
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature-Fahrenheit 33
ModelNumber 774-LF 3
Outlet Connection Size 3 IN
Outlet Shutoff Valve Type No Shutoff Valve
Outlet Thread Type Does Not Apply To Product
Part Number 0437710
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Series 774
Strainer No
