LF007-QT-CT 1/2

Part of the LF007 Series

Ordering Code: 0122703

UPC: 098268643374

Lead Free: YES

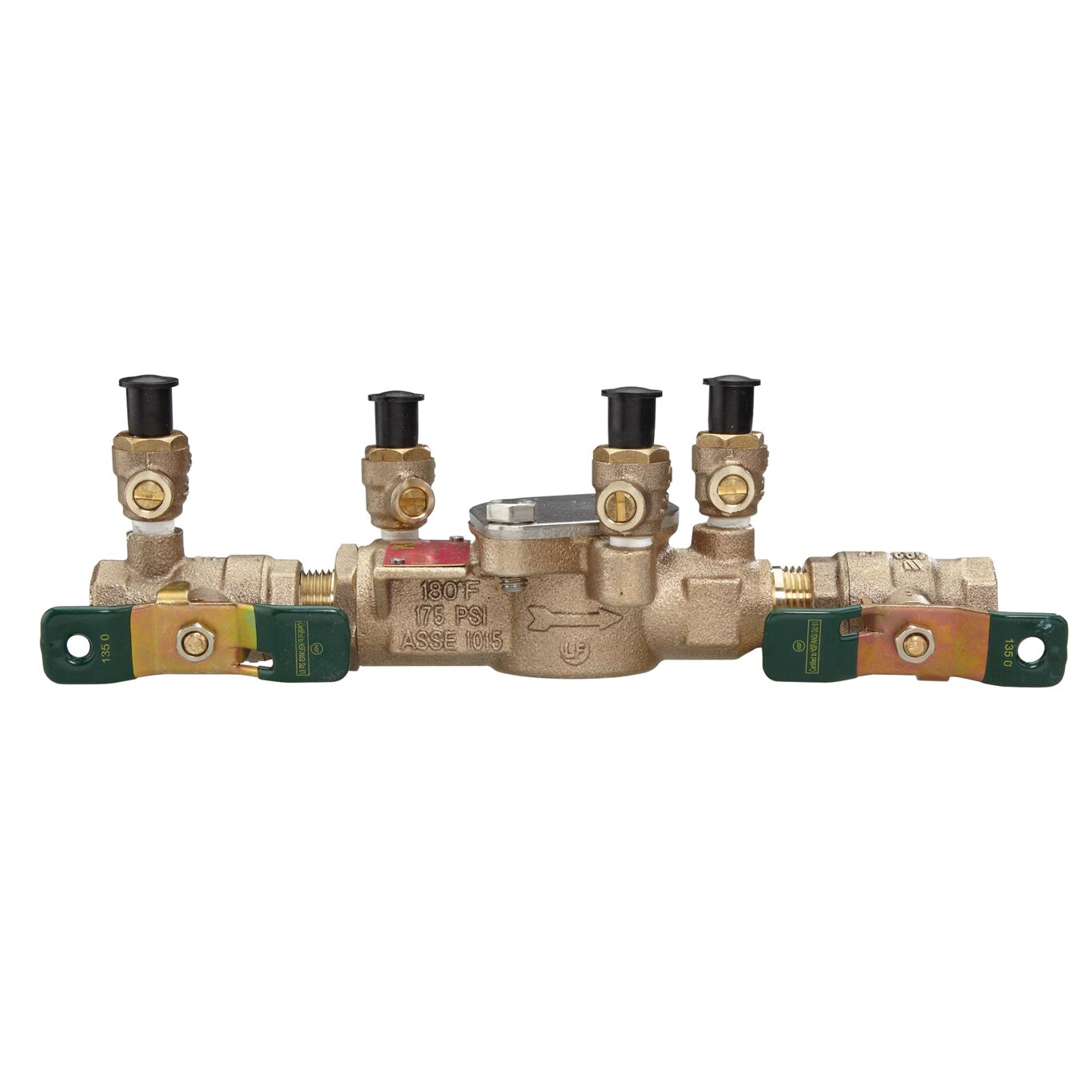

1/2 IN Lead Free Double Check Valve Backflow Preventer Assembly, Quarter Turn Shutoff, Union, Single Top Entry, Cap and Tether

  • Lead free construction
  • Modular compact design
  • Replaceable seats and seat discs
  • Top entry
  • Quarter turn ball valve shutoffs
Specifications
ArmorTek Technology No
Backflow Preventer Type Double Check Valve Assembly
Body Finish Epoxy Coated
Body Material Lead Free Bronze
Body Pattern Inline
Brand Watts
Bypass No
Cap And Tether Yes
Disc Material Rubber
EAN 098268643374
Elbow Fitting No
Hazard Protection Level Non Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 1/2 IN
Inlet Connection Type Female Threaded
Inlet Shutoff Valve Type Quarter Turn Ball Valve
Inlet Thread Type NPT
Lead Free YES
Maximum Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature - Celsius 1.00
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 1/2 IN
Outlet Connection Type Female Threaded
Outlet Shutoff Valve Type Quarter Turn Ball Valve
Outlet Thread Type NPT
Part Number 0122703
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Seat Material Rubber
Series LF007
Strainer No
Technologies Does Not Apply To Product
Tradename None
