LF007M2-QT 1 1/4

Part of the LF007 Series

Ordering Code: 0063233

UPC: 098268209754

Lead Free: YES

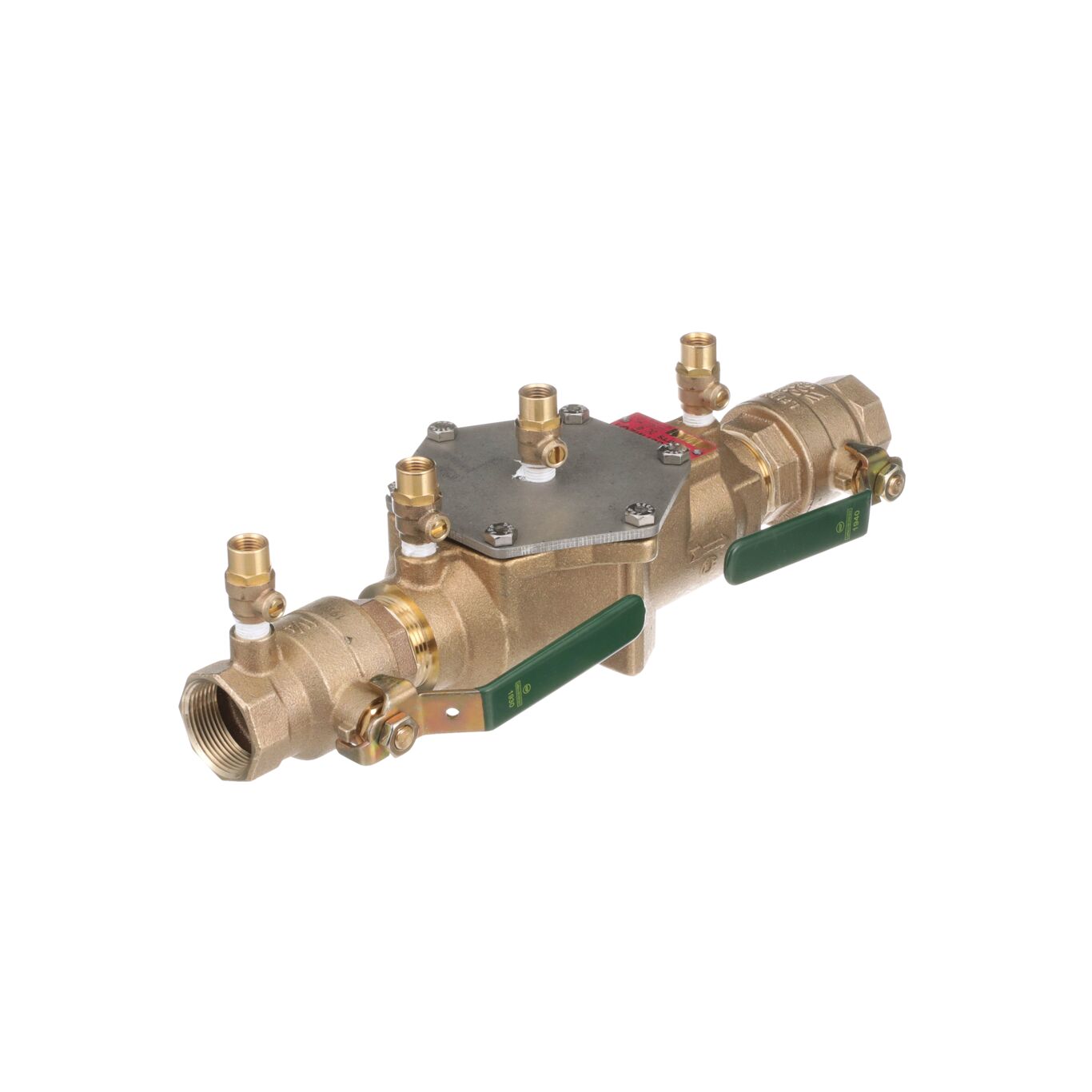

1 1/4 In Lead Free Double Check Valve Assembly, Quarter Turn Shutoff, Single Top Entry

This 1 1/4 inch lead free double check valve assembly is designed to prevent the backflow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards and for contaminants at the service line entrance. This assembly consists of a lead free body construction, NPT end connections, quarter turn ball valve shutoffs, top mounted test cocks, two in-line independent positive seating check modules, captured springs, and replaceable check discs and seats.

Product Features

  • Lead free construction
  • Replaceable seats and seat discs
  • Top entry
  • Modular compact design
Specifications
Backflow Preventer Type Double Check Valve Assembly
Body Finish Cast Bronze
Body Material Lead Free Bronze
Body Pattern Inline
BrandName Watts
Bypass No
Cap And Tether No
Disc Material Silicone
Elbow Fitting No
Hazard Protection Level Non Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 1 1/4 IN
Inlet Connection Type Female Threaded
Inlet Shutoff Valve Type Quarter Turn Ball Valve
Inlet Thread Type NPT
LeadFree YES
Maximum Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature-Fahrenheit 33
ModelNumber LF007M2-QT 1 1/4
Outlet Connection Size 1 1/4 IN
Outlet Connection Type Female Threaded
Outlet Shutoff Valve Type Quarter Turn Ball Valve
Outlet Thread Type NPT
Part Number 0063233
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Seat Material Engineered Plastic
Series LF007
Strainer No
