LF007M2-QT (W/PRESS) 1 1/4

Part of the LF007 Series

Ordering Code: 0063241

UPC: 098268118872

Lead Free: YES

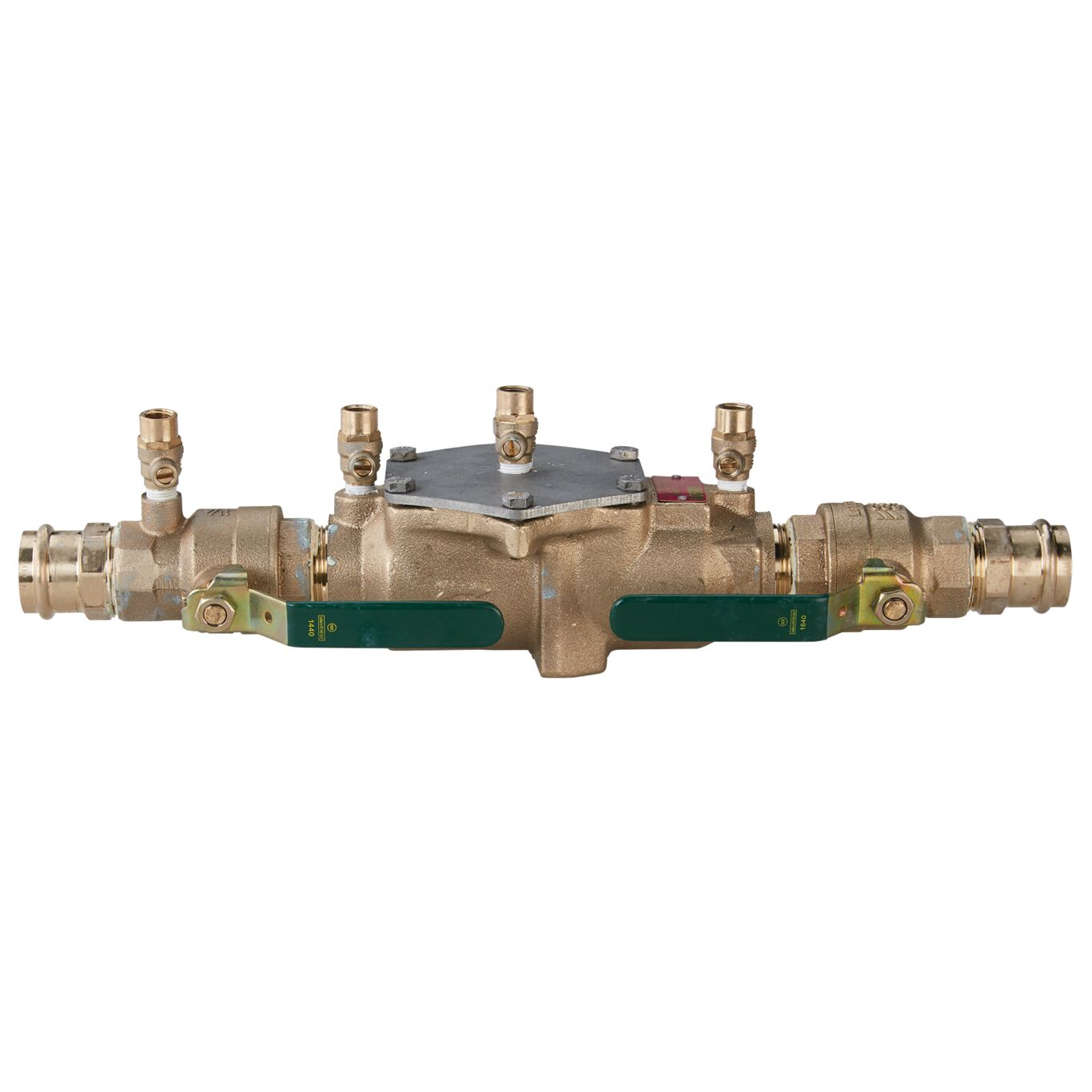

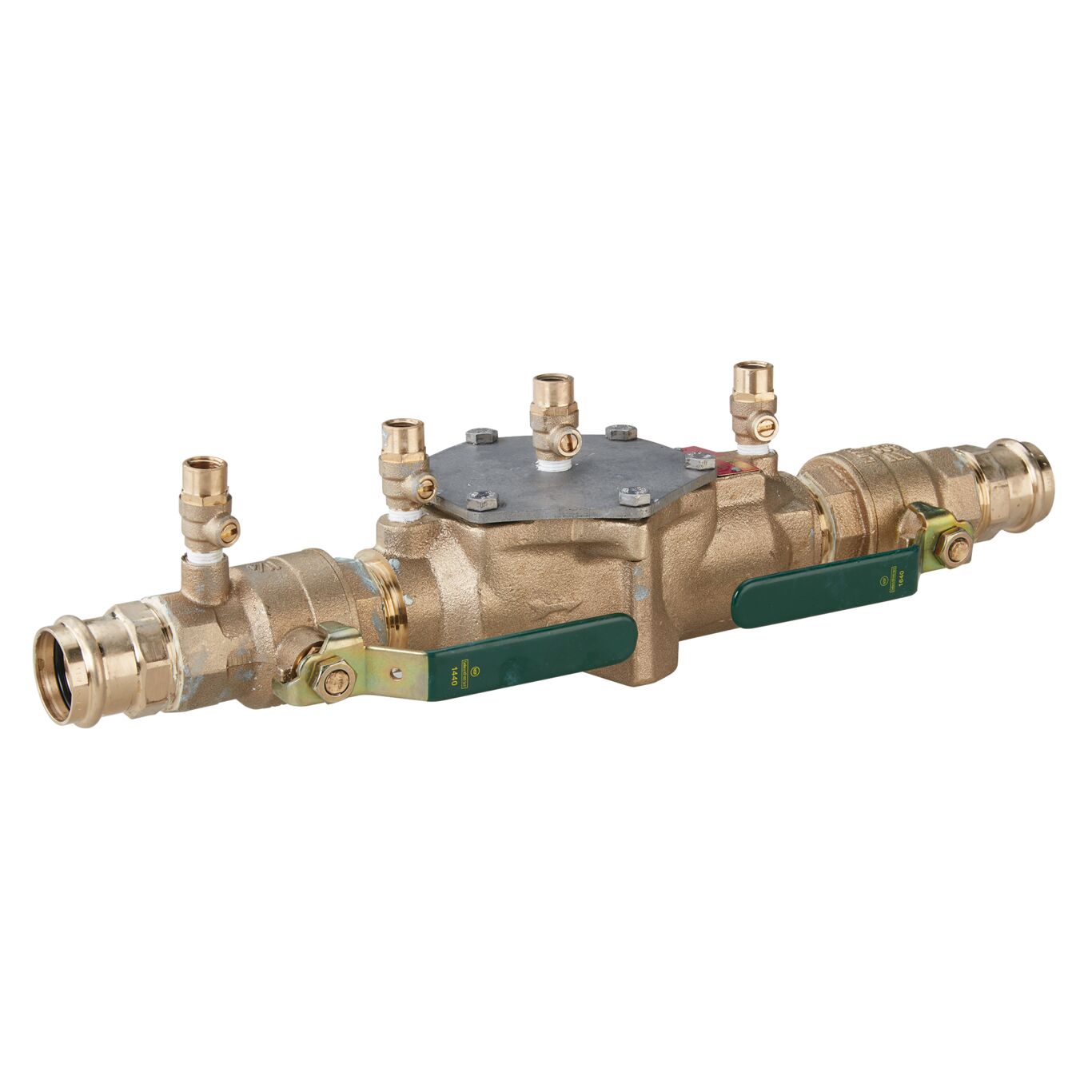

1 1/4 IN Lead Free Double Check Valve Backflow Preventer Assembly, Quarter Turn Shutoff, Single Top Entry, Viega Propress Adaptors

  • Lead free construction
  • NPT inlet and outlet connections with Viega ProPress (R) Adaptors
  • Replaceable seats and seat discs
  • Top entry
Specifications
ArmorTek Technology No
Backflow Preventer Type Double Check Valve Assembly
Body Finish Epoxy Coated
Body Material Lead Free Bronze
Body Pattern Inline
Brand Watts
Bypass No
Cap And Tether No
Disc Material Rubber
EAN 098268118872
Elbow Fitting No
Hazard Protection Level Non Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 1 1/4 IN
Inlet Connection Type Press
Inlet Shutoff Valve Type Quarter Turn Ball Valve
Inlet Thread Type Does Not Apply To Product
Lead Free YES
Maximum Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature - Celsius 1.00
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 1 1/4 IN
Outlet Connection Type Press
Outlet Shutoff Valve Type Quarter Turn Ball Valve
Outlet Thread Type Does Not Apply To Product
Part Number 0063241
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Seat Material Rubber
Series LF007
Strainer No
Tradename None
