LF709-OSY-S 8

Part of the LF709 Series

Ordering Code: 0122830

UPC: 098268647273

Lead Free: YES

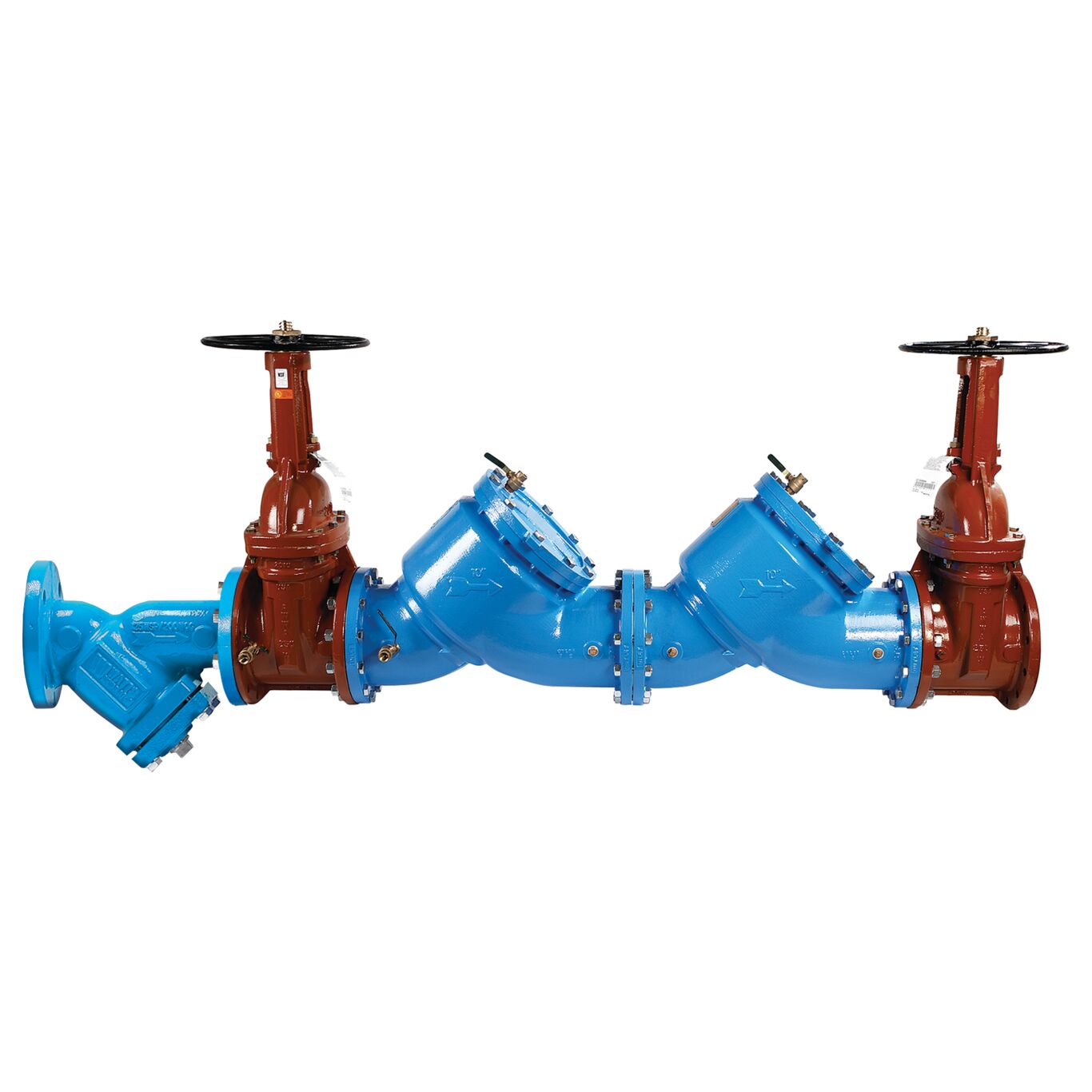

8 In Cast Iron Double Check Valve Assembly, Osy Shutoffs, Strainer

This 8 inch lead free double check valve assembly is designed to prevent the reverse flow of contaminated water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. It is ideal for protection at cross-connections identified as non-health hazard applications and from other contaminants found at the service line entrance. This assembly consists of an epoxy coated cast iron body construction, outside stem and yoke resilient seated gate valves, strainer, test cocks, and a modular check design for easy maintenance with center stem guide. The captured spring is accessible through a bolted cover plate.

Product Features

  • No special tools required for servicing
  • Maximum flow at low pressure drop
  • Outside stem and yoke gate valves
  • Epoxy coated cast iron body
Specifications
Backflow Preventer Type Double Check Valve Assembly
Body Finish Epoxy Coated
Body Material Cast Iron
Body Pattern Inline
BrandName Watts
Bypass No
Cap And Tether No
Elbow Fitting No
Hazard Protection Level Non Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 8 IN
Inlet Connection Type Flanged Joint
Inlet Shutoff Valve Type Outside Stem And Yoke Gate Valve
LeadFree YES
Maximum Temperature-Fahrenheit 110
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature-Fahrenheit 33
ModelNumber LF709-OSY-S 8
Outlet Connection Size 8 IN
Outlet Connection Type Flanged Joint
Outlet Shutoff Valve Type Outside Stem And Yoke Gate Valve
Outlet Thread Type Does Not Apply To Product
Part Number 0122830
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Seat Material Stainless Steel
Series LF709
Strainer Yes
