7-10-U2 1X1

Discontinued - Replaced By: LF7R10-U2 1 X 1

Part of the 7 Series

Ordering Code: 0061770

UPC: 098268003253

Lead Free Model Available

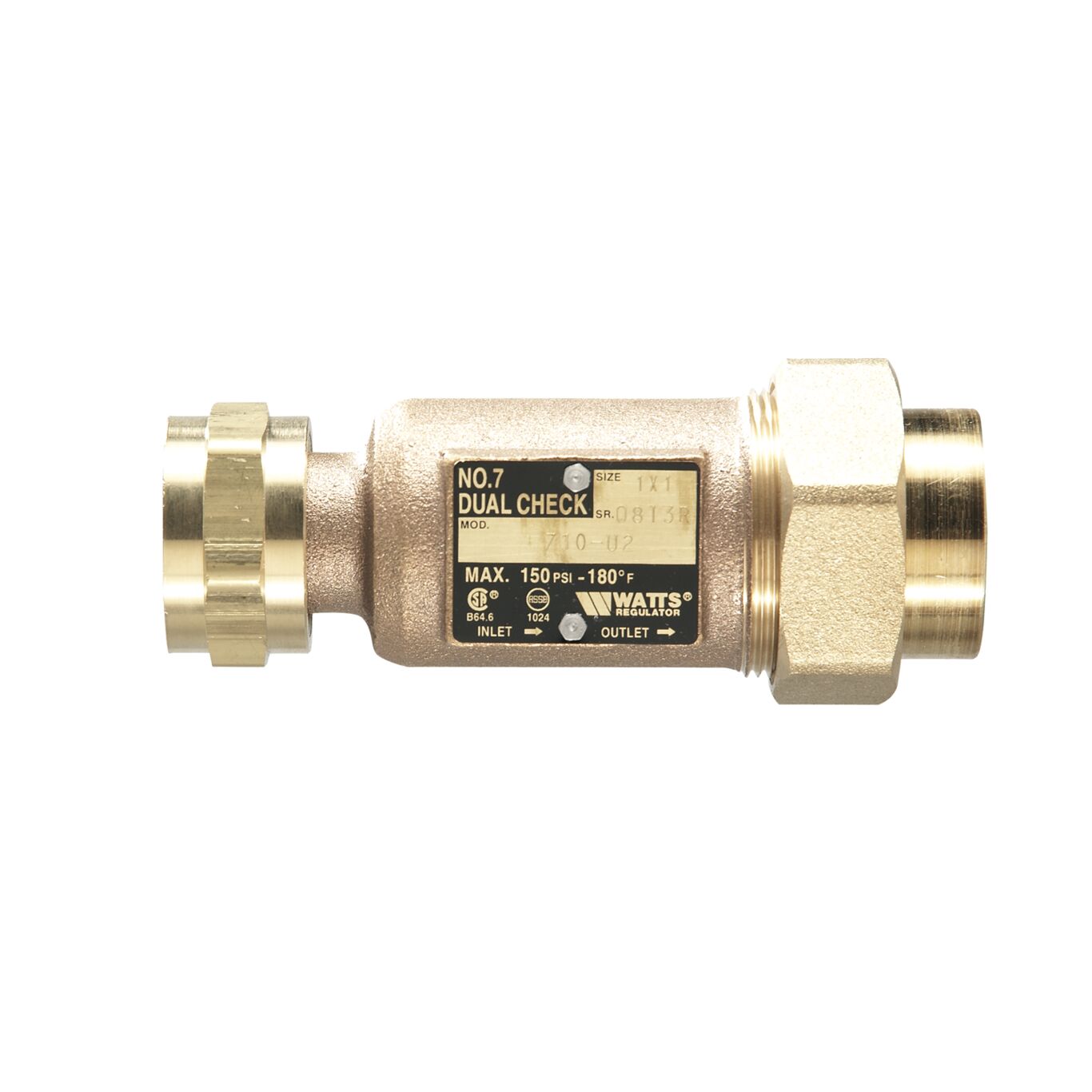

1 X 1 In Bronze Dual Check Valve, Female Meter Thread Swivel Inlet By Union Female Npt Outlet

This 1 x 1 IN series 7 dual check valve prevents the reverse flow of polluted water from entering into the drinking water supply at the service entrance or at individual outlets. It consists of a bronze body construction, with two plastic replaceable check valves, and stainless steel springs. The valve is designed for non-health hazard residential water system containment, continuous pressure applications. It is installed immediately downstream of the residential water meter, in a vertical or horizontal position. Check with local inspection authorities for installation requirements. Minimum working pressure is 10 PSI (69 kPa). Maximum working pressure is 150 PSI (10 BAR).

Product Features

  • Union Connection
  • Variety of end connections
  • Compact design
  • Bronze body for durability
Specifications
Backflow Preventer Type Dual Check
Body Material Bronze
BrandName Watts
Bypass No
Cap And Tether No
Elbow Fitting No
Hazard Protection Level Non Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 1 IN
Inlet Connection Type Swivel Joint
Inlet Shutoff Valve Type No Shutoff Valve
LeadFree NO
Maximum Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 10.30
Maximum Working Pressure-PSI 150
Meter Type No Meter
Minimum Temperature-Fahrenheit 33
ModelNumber 7-10-U2 1X1
Outlet Connection Size 1 IN
Outlet Connection Type Female Threaded
Outlet Shutoff Valve Type No Shutoff Valve
Outlet Thread Type NPT
Part Number 0061770
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Series 7
Strainer No
