N9-CD

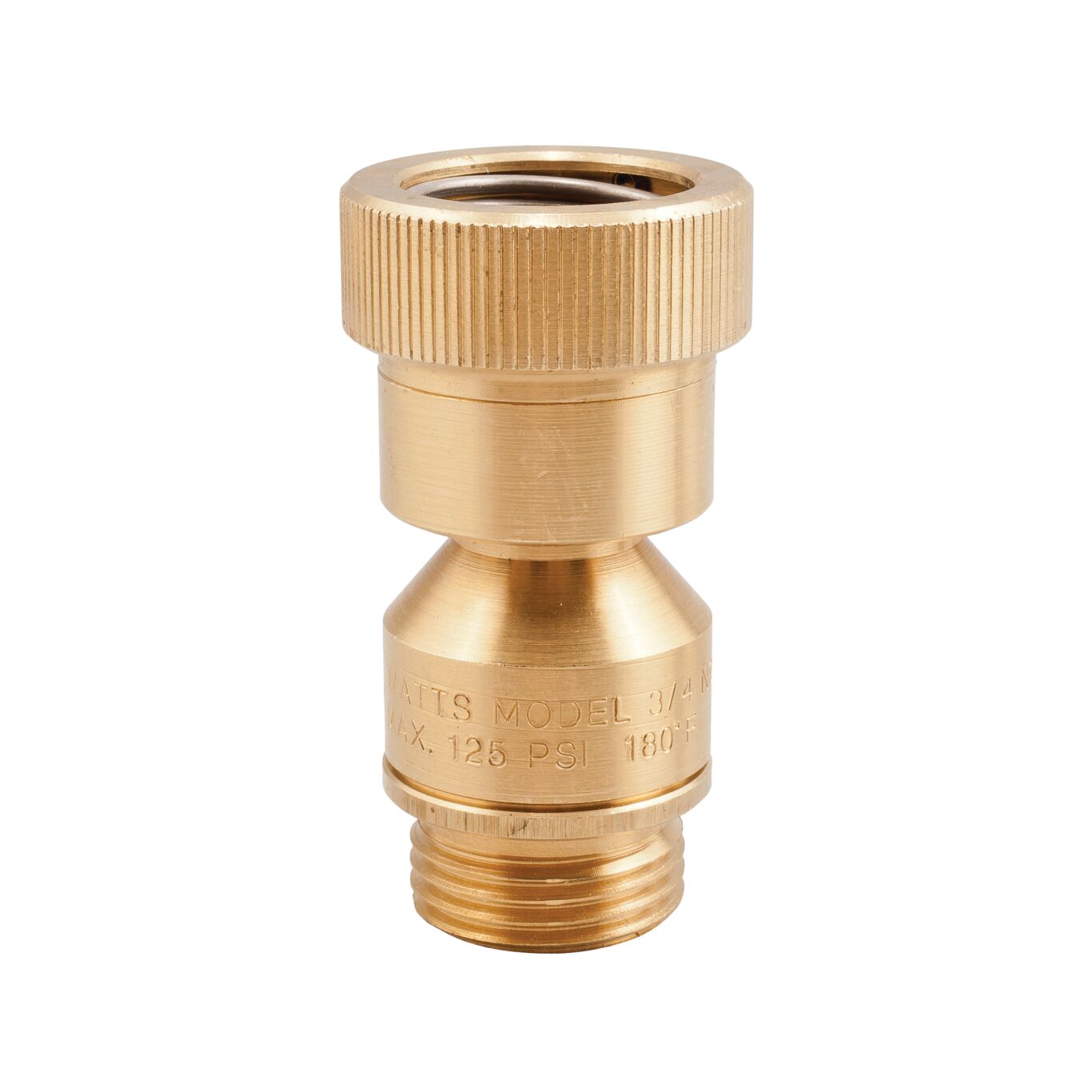

Series N9-CD Field Testable Dual Check Vacuum Breakers with Atmospheric Vent prevent high-hazard backsiphonage backflow and low-head backpressure (10 ft. or less) from contaminating the potable water supply. It prevents backflow associated with hose connections when screwed directly to a sill cock, yard hydrant, or wall hydrant. It consists of a brass body construction with two independently operating rubber and stainless steel check valves, with an atmospheric vent located between the them. Series N9-CD is in-line field testable, non-removable and designed for non-continuous pressure applications. It is ideal for installation in service sinks, chemical dispensers, sill cocks, and frost-proof hydrants. Series N9-CD-C comes with chrome plating. Maximum Working Pressure: 125psi (10.6 bar).
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific N9-CD
No results found
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
