SD-3-FN-LS 3/8

Part of the SD-3 Series

Ordering Code: 0061673

UPC: 098268931464

Lead Free: YES

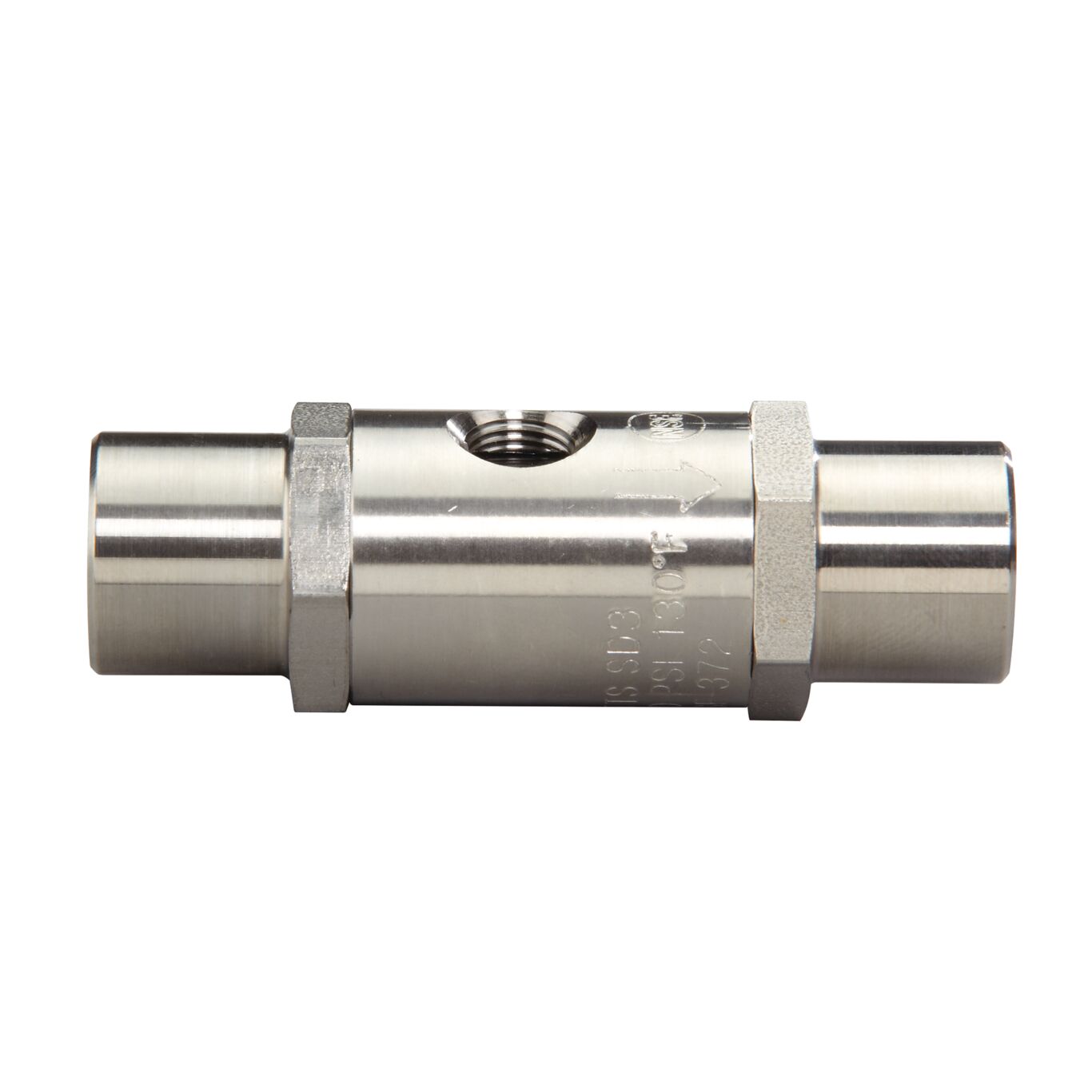

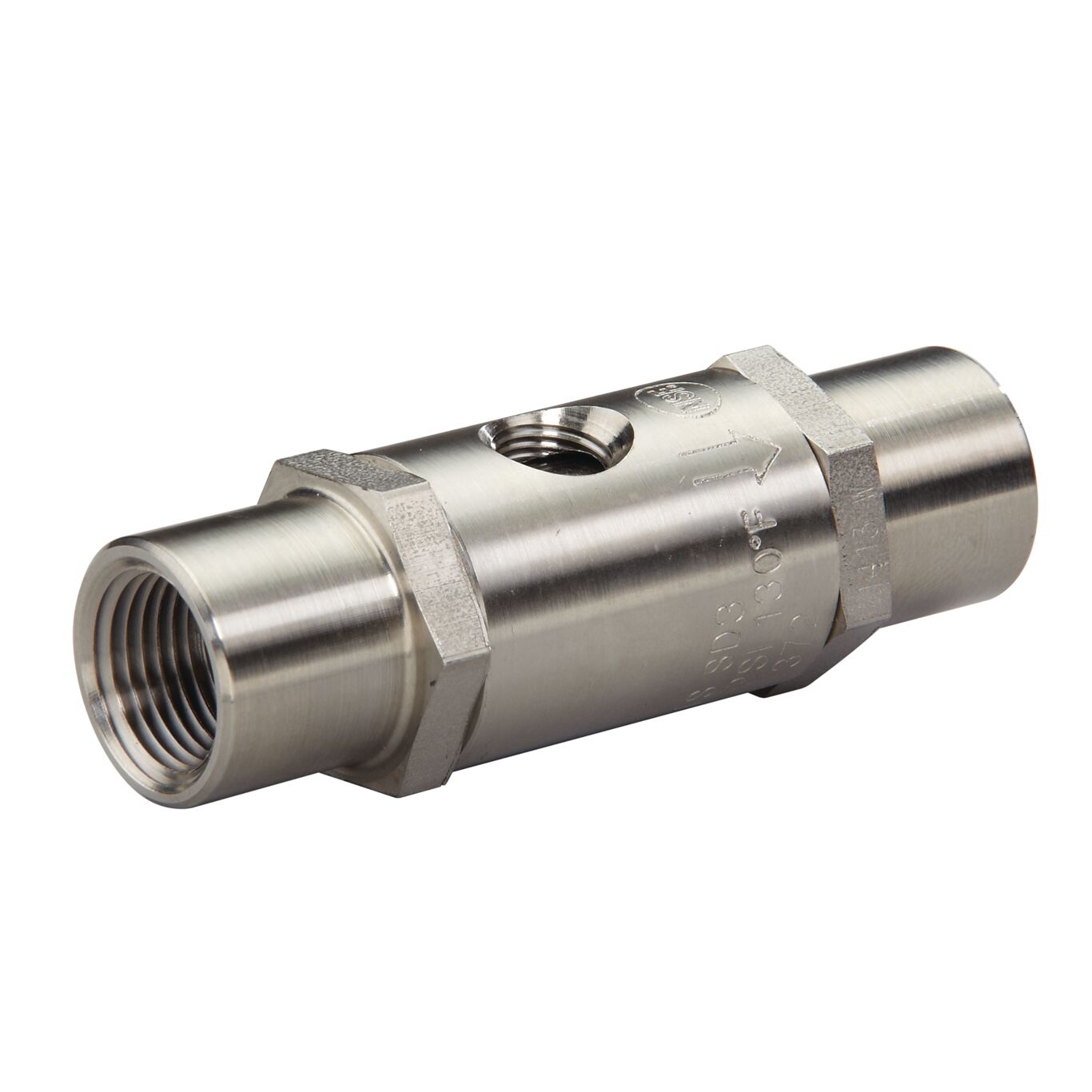

3/8 In Dual Check Valve, Atmospheric Vent, Less Strainer, Female Npt Outlet Connection

This 3/8 inch dual check valve with atmospheric port and strainer for carbonated beverage machines prevents the reverse flow of polluted water, such as carbon dioxide gas and carbonated water, from entering into the potable water supply due to backpressure backflow. It is designed for continuous or intermittent pressure applications and ideal for use on post-mix carbonated beverage equipment and dispensing equipment for tea and coffee. This valve consists of stainless steel body construction, female NPT end connections , internal rubber components and an atmospheric vent. Includes an atmospheric port provides visual indication of failure of the second check.

Product Features

  • ASSE 1022 approved dual check with atmospheric vent
  • Can be installed vertically or horizontally
  • No exposed screws or threads to eliminate corrosion potential and improve serviceability
  • Maximum working pressure is 150 PSI (10 bar)
Specifications
Backflow Preventer Type Dual Check with Atmospheric Vent
Body Finish Stainless Steel
Body Material Stainless Steel
Body Pattern Does Not Apply To Product
BrandName Watts
Bypass No
Cap And Tether No
Disc Material Santoprene
Elbow Fitting No
Hazard Protection Level Non Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 3/8 IN
Inlet Connection Type Female Threaded
Inlet Shutoff Valve Type No Shutoff Valve
Inlet Thread Type NPT
LeadFree YES
Maximum Temperature-Fahrenheit 130
Maximum Working Pressure-BAR 10.30
Maximum Working Pressure-PSI 150
Meter Type No Meter
Minimum Temperature-Fahrenheit 54
ModelNumber SD-3-FN-LS 3/8
Outlet Connection Size 3/8 IN
Outlet Connection Type Female Threaded
Outlet Shutoff Valve Type No Shutoff Valve
Outlet Thread Type NPT
Part Number 0061673
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure
Seat Material Noryl
Series SD-3
Strainer Yes
