909RPDA-DOSY-GPM-FS 10

Part of the 909RPDA Series

Ordering Code: 88009372

UPC: 098268294583

Lead Free: NO

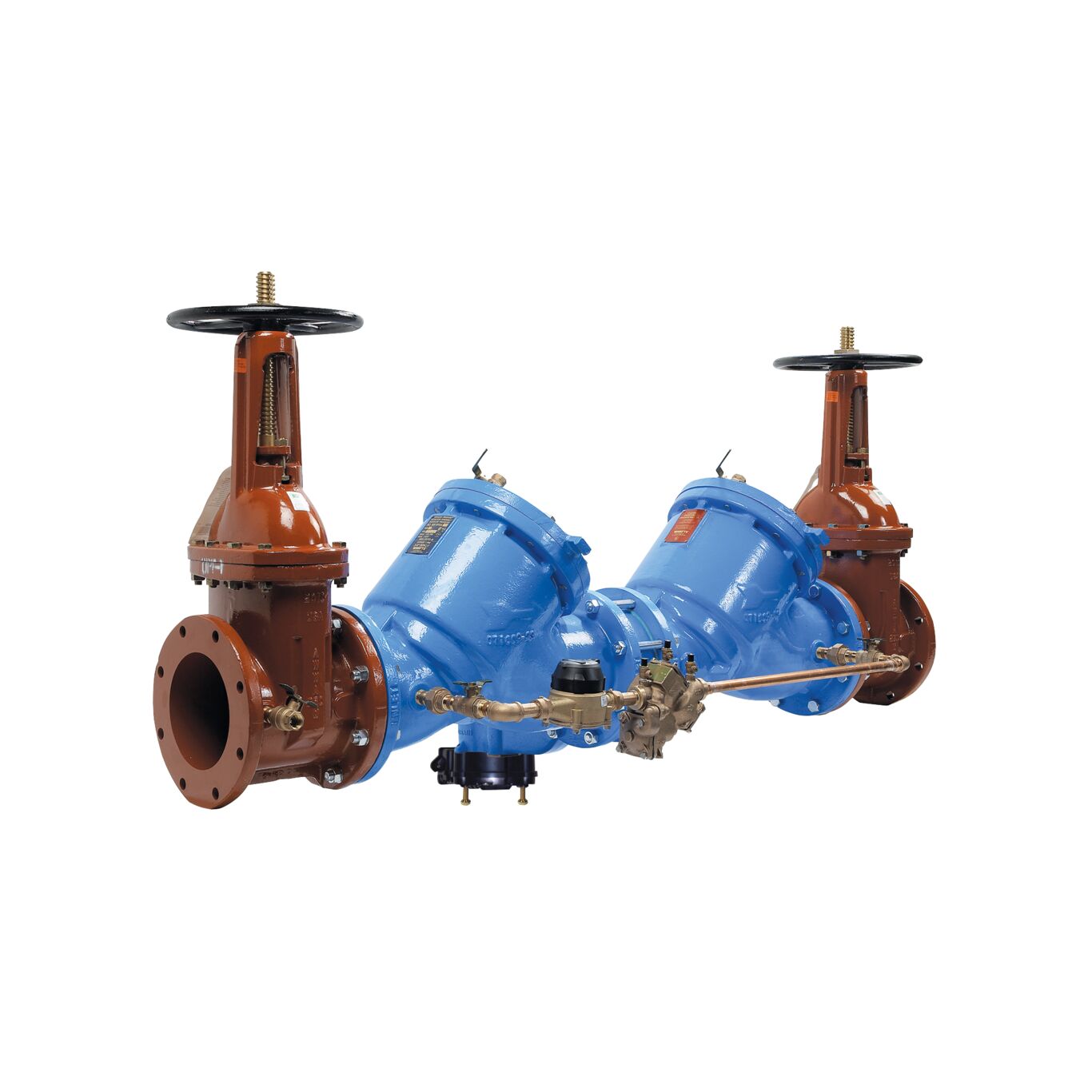

10 IN Cast Iron Reduced Pressure Detector Assembly Backflow Preventer, Domestic OSY Shutoff, Gallons/Minute Meter, ArmorTek Coating, Backflow Flood Sensor

  • Features a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
  • Alert features available with add-on sensor connection kit
  • Utilizes advanced ArmorTek coating technology to resist corrosion of internals
  • Cast iron body construction with patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion
  • Replaceable stainless steel seats
  • Furnished with a gallon per minute meter
  • Maximum flow at low pressure drop
  • Detects underground leaks and unauthorized water use
  • Compact for economy combined with performance
Specifications
ArmorTek Technology Yes
Backflow Preventer Type Reduced Pressure Detector Assembly
Body Finish Epoxy Coated Using ArmorTek Technology
Body Material Cast Iron
Body Pattern Inline
Brand Watts
Buy American Act Compliant NO
Bypass Yes
Bypass Size 3/4 IN
Cap And Tether No
Disc Material Does Not Apply To Product
EAN 098268294583
Elbow Fitting No
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 10 IN
Inlet Connection Size-Metric 250 MM
Inlet Connection Type Mechanical Joint
Inlet Shutoff Valve Type Outside Stem And Yoke Gate Valve
Inlet Thread Type Does Not Apply To Product
Lead Free NO
Maximum Temperature-Fahrenheit 140
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type GPM
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 10 IN
Outlet Connection Type Mechanical Joint
Outlet Shutoff Valve Type Outside Stem And Yoke Gate Valve
Outlet Thread Type Does Not Apply To Product
Part Number 88009372
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Seat Material Stainless Steel
Series 909RPDA
Strainer No
Technologies Flood Detection
Tradename None
