957ZRPDA-OSY-LM 6

Part of the 957RPDA Series

Ordering Code: 0111890

UPC: 098268361599

Lead Free: NO

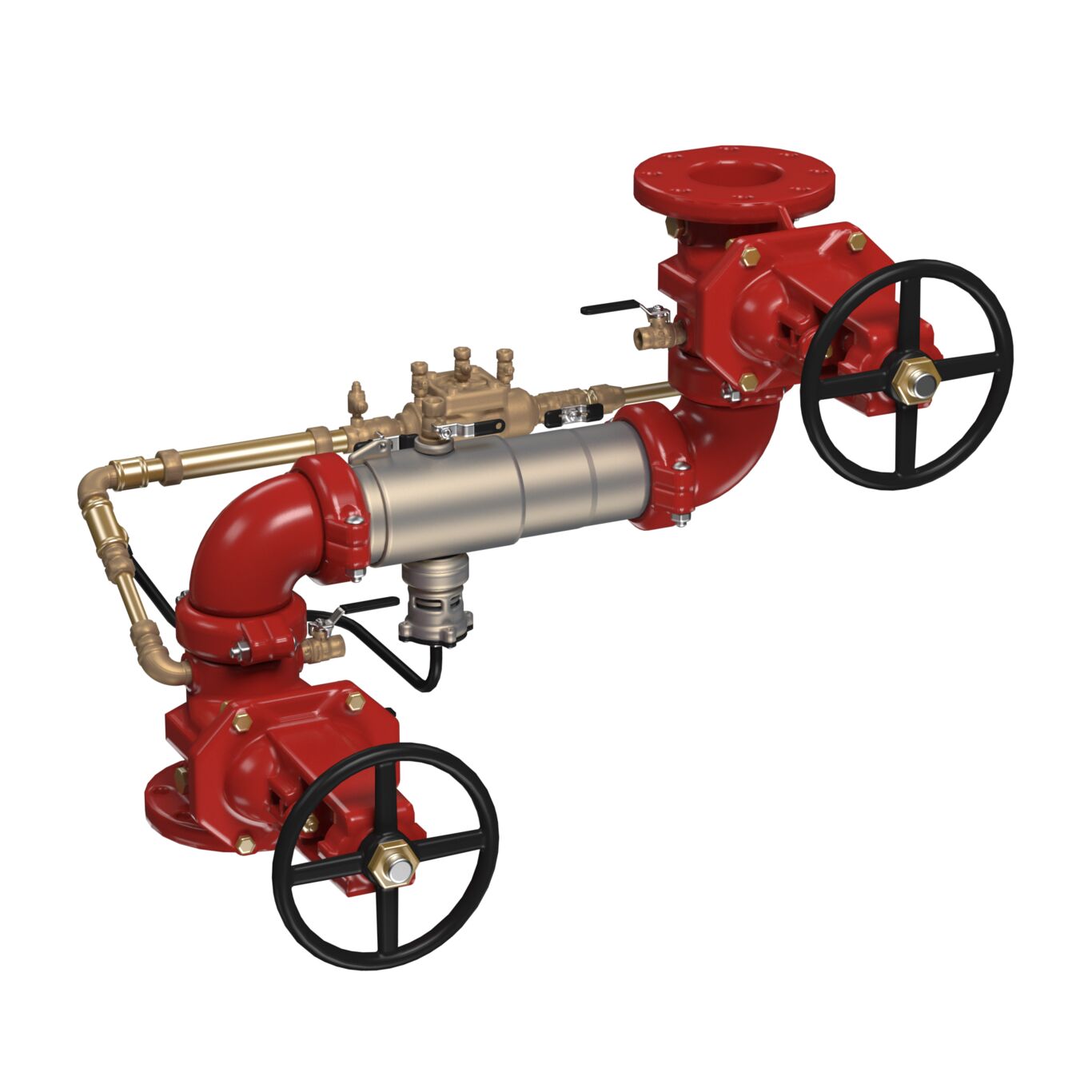

6 In SS Reduced Pressure Detector Assembly Backflow Preventer, OSY Shutoff Valves, Less Meter, Z Pattern

  • 304 (Schedule 40) stainless steel housing and sleeve
  • UL and FM outside stem and yoke resilient seated gate valves
  • Approved for horizontal Z pattern installation
  • Replaceable check disc rubber
  • Bottom mounted cast stainless steel relief valve
  • Compact design allows small enclosures to be used
  • Patented torsion spring check modules for ease of serviceability
  • Groove couplings for ease of installation and pipe alignment
  • The maximum working pressure is 175 psi (12.06 bar)
Specifications
ArmorTek Technology No
Backflow Preventer Type Reduced Pressure Detector Assembly
Body Finish Stainless Steel
Body Material Stainless Steel
Body Pattern Z-Pattern
Brand Watts
Buy American Act Compliant NO
Bypass Yes
Cap And Tether No
EAN 098268361599
Elbow Fitting No
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 6 IN
Inlet Connection Size-Metric 150 MM
Inlet Connection Type Grooved Joint
Inlet Shutoff Valve Type Outside Stem And Yoke Gate Valve
Inlet Thread Type Does Not Apply To Product
Lead Free NO
Maximum Temperature-Fahrenheit 110
Maximum Working Pressure-BAR 12.06
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 6 IN
Outlet Connection Type Grooved Joint
Outlet Shutoff Valve Type Outside Stem And Yoke Gate Valve
Outlet Thread Type Does Not Apply To Product
Part Number 0111890
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Series 957RPDA
Strainer No
Tradename None
