LF957NRPDA-OSY-GPM 6

Part of the LF957RPDA Series

Ordering Code: 0124746

UPC: 098268842081

Lead Free: YES

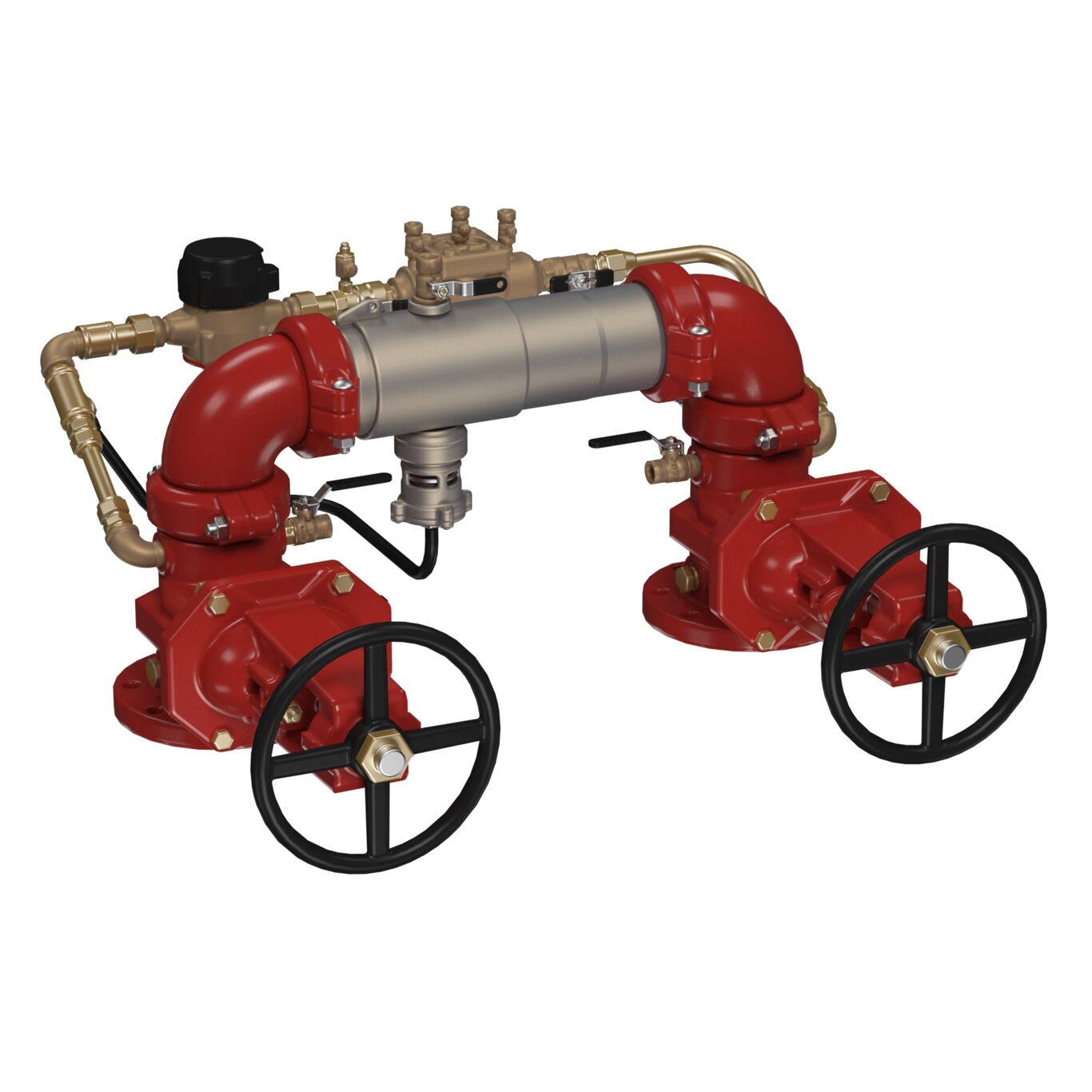

6 In Lead Free Reduced Pressure Detector Backflow Preventer Assembly, OSY Shutoff Valves, Gallons/Minute Meter, N Pattern

  • 304 (Schedule 40) stainless steel housing and sleeve
  • UL and FM outside stem and yoke resilient seated gate valves
  • Approved for horizontal N pattern installation
  • Furnished with a gallon per minute meter
Specifications
ArmorTek Technology No
Backflow Preventer Type Reduced Pressure Detector Assembly
Body Finish Stainless Steel
Body Material Stainless Steel
Body Pattern N-Pattern
Brand Watts
Buy American Act Compliant NO
Bypass Yes
Cap And Tether No
EAN 098268842081
Elbow Fitting No
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 6 IN
Inlet Connection Size-Metric 152.4 MM
Inlet Connection Type Flanged Joint
Inlet Shutoff Valve Type Outside Stem And Yoke Gate Valve
Inlet Thread Type Does Not Apply To Product
Lead Free YES
Maximum Temperature-Fahrenheit 110
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type GPM
Minimum Temperature - Celsius 1.00
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 6 IN
Outlet Connection Type Does Not Apply To Product
Outlet Shutoff Valve Type Outside Stem And Yoke Gate Valve
Outlet Thread Type Does Not Apply To Product
Part Number 0124746
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Series LF957RPDA
Strainer No
Tradename None
