LF957ZRPDA-BFG-CFM 2 1/2

Part of the LF957RPDA Series

Ordering Code: 0124761

UPC: 098268843354

Lead Free: YES

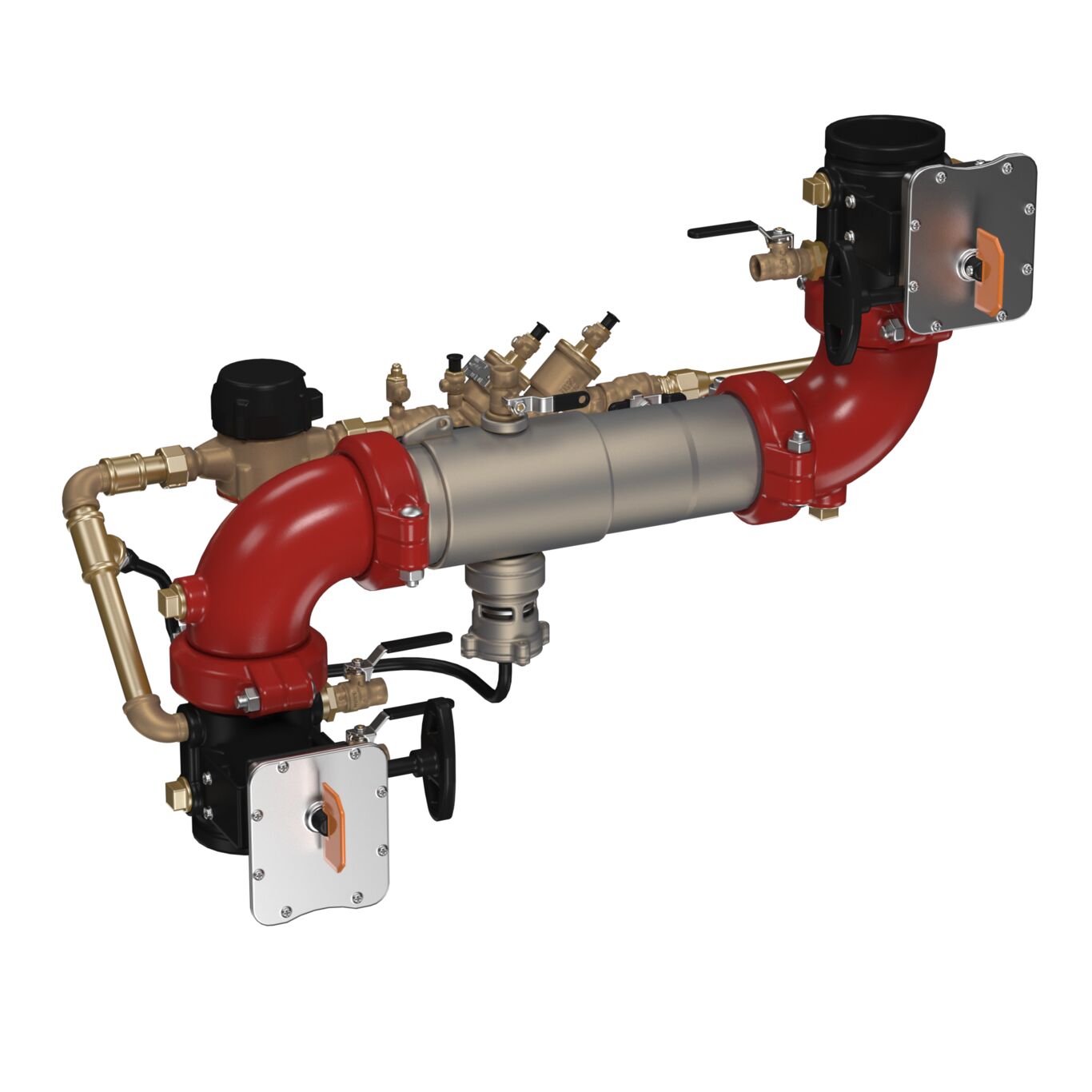

2 1/2 In Lead Free Reduced Pressure Detector Backflow Preventer Assembly, UL/FM Butterfly Valve Shutoffs, Cubic Feet Meter, Z Pattern

  • 304 (Schedule 40) stainless steel housing and sleeve
  • UL and FM grooved gear operated butterfly valves with tamper switch
  • Approved for horizontal Z pattern installation
  • Furnished with a cubic foot per minute meter
Specifications
ArmorTek Technology No
Backflow Preventer Type Reduced Pressure Detector Assembly
Body Finish Stainless Steel
Body Material Stainless Steel
Body Pattern Z-Pattern
Brand Watts
Buy American Act Compliant NO
Bypass Yes
Cap And Tether No
EAN 098268843354
Elbow Fitting No
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 2 1/2 IN
Inlet Connection Size-Metric 64 MM
Inlet Connection Type Grooved Joint
Inlet Shutoff Valve Type Gear Operated Butterfly Valve
Inlet Thread Type Does Not Apply To Product
Lead Free YES
Maximum Temperature-Fahrenheit 110
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type CFM
Minimum Temperature - Celsius 1.00
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 2 1/2 IN
Outlet Connection Type Grooved Joint
Outlet Shutoff Valve Type Gear Operated Butterfly Valve
Outlet Thread Type Does Not Apply To Product
Part Number 0124761
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Series LF957RPDA
Strainer No
Tradename None
