009M2-QT HC 2 Watts

Part of the 009 Series

Ordering Code: 0436020

UPC: 098268914788

Lead Free: NO

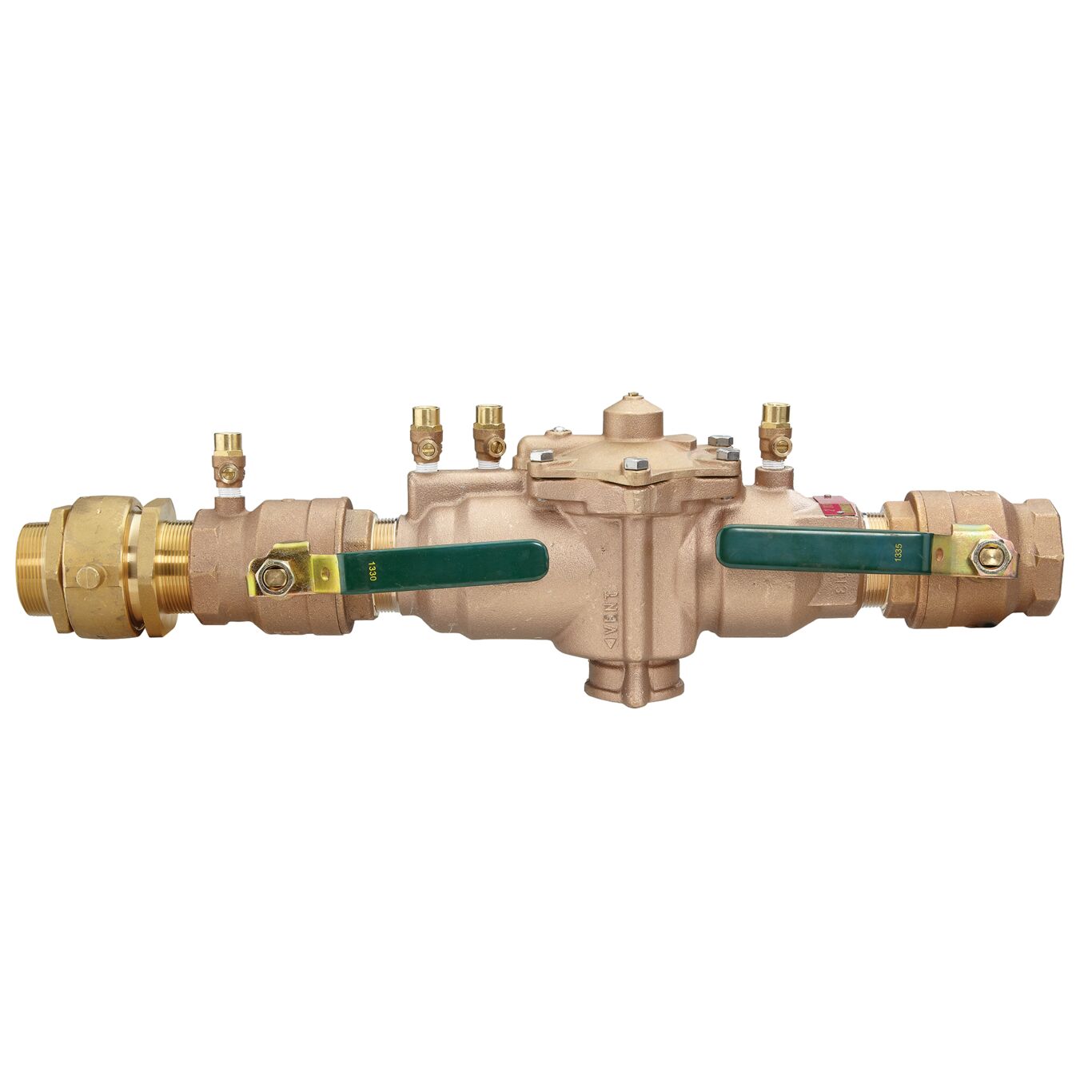

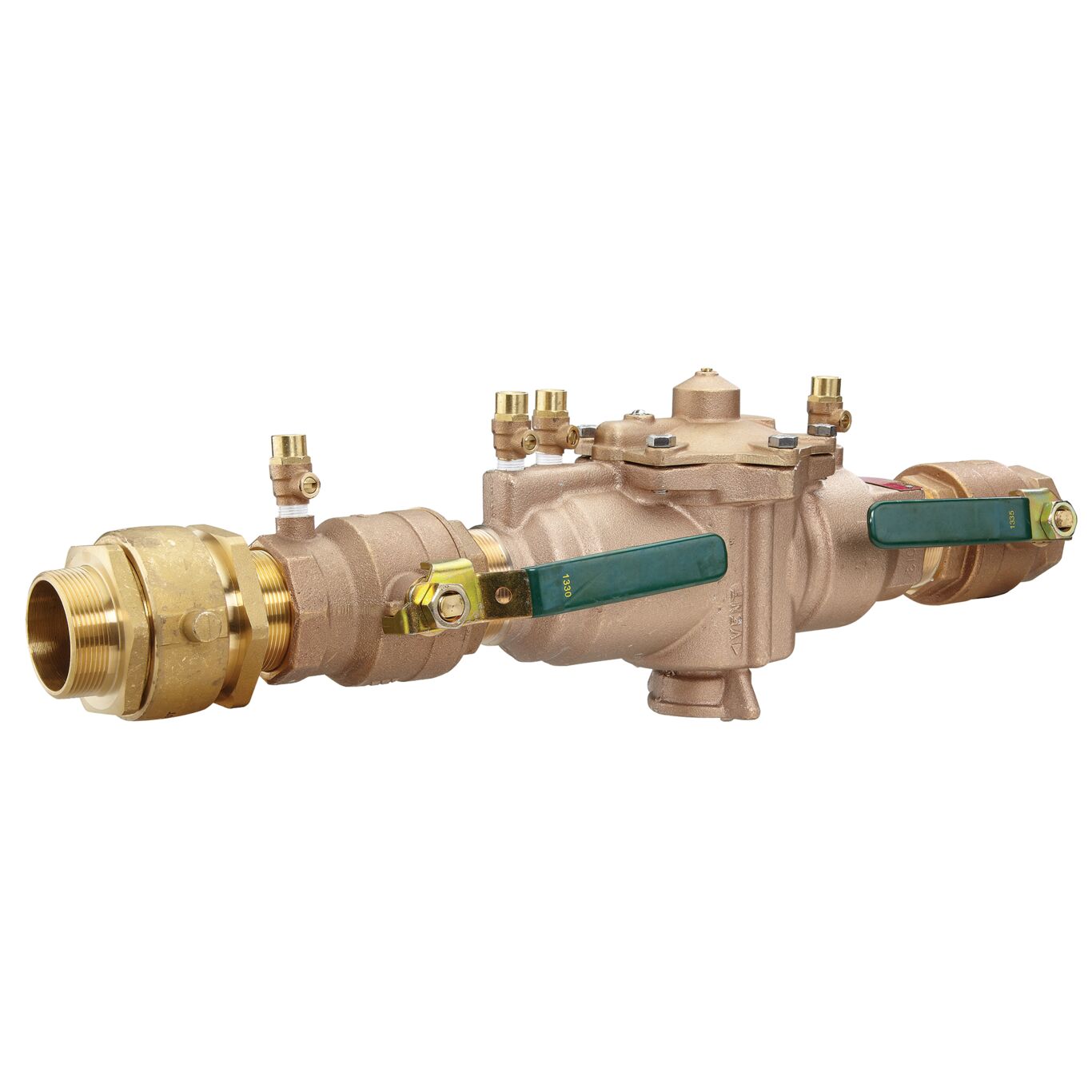

2 In Bronze Reduced Pressure Zone Assembly, Quarter Turn Shutoff Valves, Fire Hydrant Fittings

This 2 inch reduced pressure zone assembly is designed to prevent the flow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and for contaminants at the service line entrance. This assembly consists of a bronze body, 2 1/2 inch inlet and outlet fire hydrant fitting, NPT end connections, quarter turn ball valve shutoffs with lever handles, top mounted test cocks, two in-line independent check valves, captured springs, and replaceable check seats with an internal relief valve for reduced space requirements.

Product Features

  • Captured springs for safe maintenance
  • Internal relief valve for reduced installation clearances
  • Quarter turn full port resilient seated ball valve shutoffs
  • Bronze body construction for durability
  • Test cocks are screwdriver slotted
  • 2 1/2 inch inlet and outlet fire hydrant fittings
  • Single access cover and modular check construction for the ease of maintenance
  • Replaceable seats for an economical repair
  • Large body passages provides a low pressure drop
Backflow Preventer Type Reduced Pressure Zone Assembly
Body Finish Cast Bronze
Body Material Bronze
Body Pattern Inline
BrandName Watts
Bypass No
Cap And Tether No
Disc Material Silicone
Elbow Fitting No
GDS Status Registered
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection Yes
Inlet Connection Size 2 IN
Inlet Connection Type Female Threaded
Inlet Shutoff Valve Type Quarter Turn Ball Valve
Inlet Thread Type NPT
LeadFree NO
Maximum Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature-Fahrenheit 33
ModelNumber 009M2-QT HC 2
Outlet Connection Size 2 IN
Outlet Connection Type Female Threaded
Outlet Shutoff Valve Type Quarter Turn Ball Valve
Outlet Thread Type NPT
Part Number 0436020
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Seat Material Engineered Plastic
Series 009
Strainer No
