D009M2-QT-S 1 Watts

Discontinued

Part of the 009 Series

Ordering Code: 0078020

UPC: 098268300956

Lead Free: NO

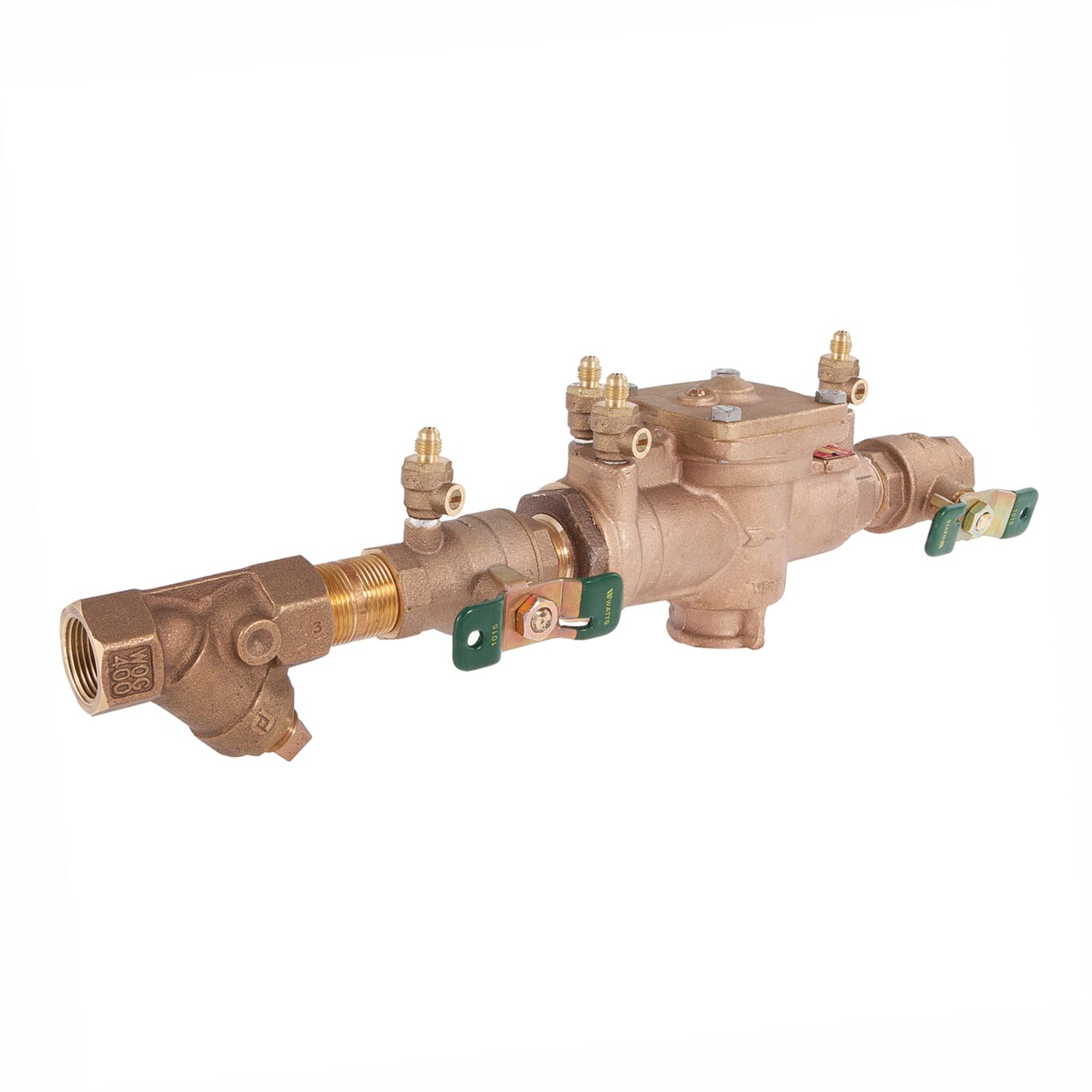

1 In Bronze Reduced Pressure Zone Assembly, Domestic Quarter Turn Shutoff Valves, Bronze Strainer

This 1 inch reduced pressure zone assembly is designed to prevent the flow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and for contaminants at the service line entrance. This assembly consists of a bronze body and strainer, NPT end connections, domestic quarter turn ball valve shutoffs with tee handles, two in-line independent check valves, top mounted test cocks, captured springs, and replaceable check seats with an internal relief valve for reduced space requirements.

Product Features

  • Test cocks are screwdriver slotted
  • Replaceable seats for an economical repair
  • Quarter turn full port resilient seated ball valve shutoffs
  • Internal relief valve for reduced installation clearances
  • Captured springs for safe maintenance
  • Bronze body construction for durability
  • Large body passages provides a low pressure drop
  • Single access cover and modular check construction for the ease of maintenance
  • Furnished with a strainer
Specifications
Backflow Preventer Type Reduced Pressure Zone Assembly
Body Finish Bronze
Body Material Bronze
Body Pattern Inline
BrandName Watts
Bypass No
Cap And Tether No
Elbow Fitting No
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 1 IN
Inlet Connection Type Female Threaded
Inlet Shutoff Valve Type Quarter Turn Ball Valve
Inlet Thread Type NPT
LeadFree NO
Maximum Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature-Fahrenheit 33
ModelNumber D009M2-QT-S 1
Outlet Connection Size 1 IN
Outlet Connection Type Female Threaded
Outlet Shutoff Valve Type Quarter Turn Ball Valve
Outlet Thread Type NPT
Part Number 0078020
Polymer Coating No
Protection Type Backpressure and Backsiphonage
Series 009
Strainer Yes
