4000B-S 1/2

Discontinued

Part of the 4000B Series

Ordering Code: 0437026

UPC: 098268516937

Lead Free: NO

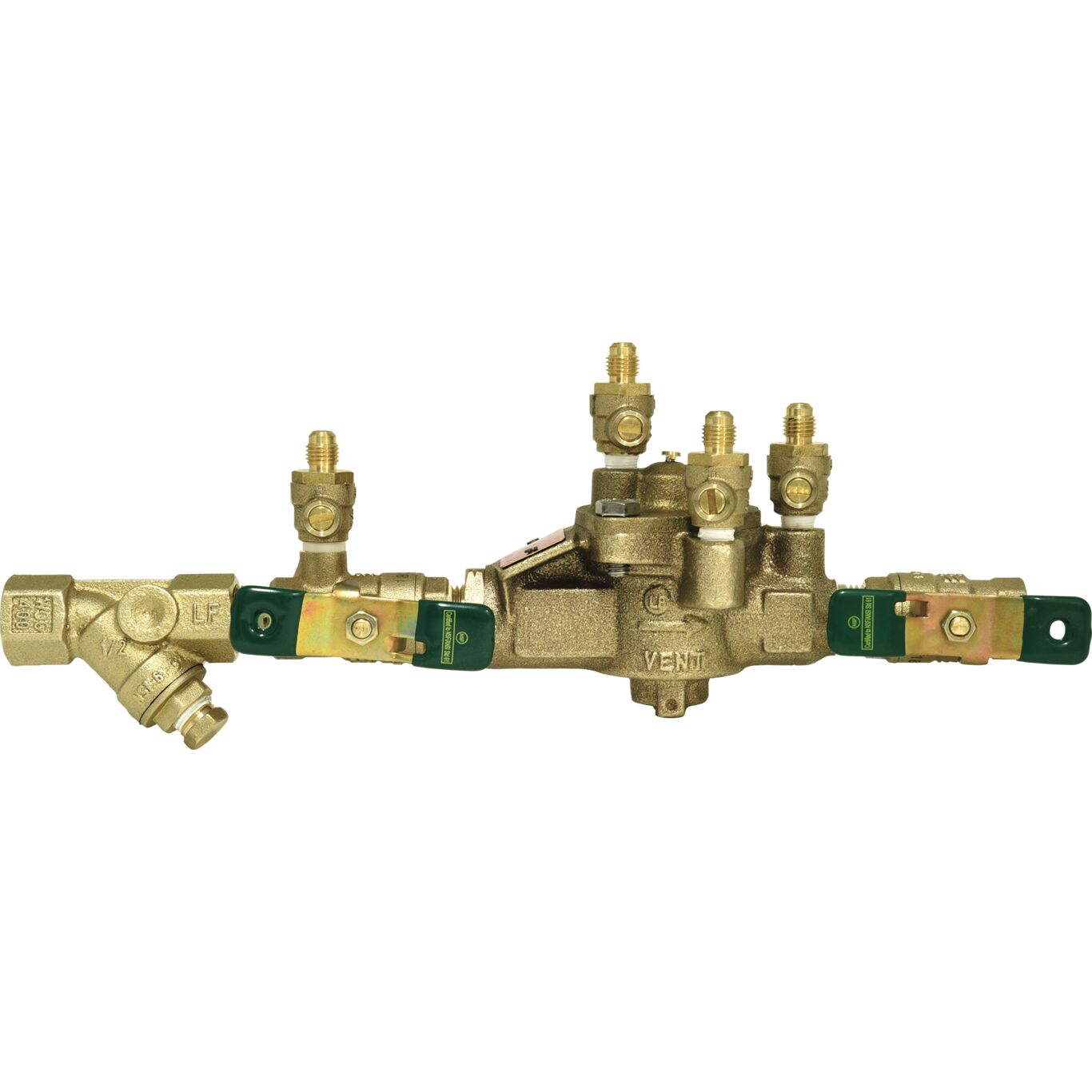

1/2 In Bronze Reduced Pressure Zone Backflow Preventer Assembly, Quarter Turn Ball Valve Shutoff, Bronze Strainer

  • Bronze body construction for durability furnished with a strainer
  • Large body passages provides low pressure drop
  • Single access cover and modular check construction for ease of maintenance
  • Furnished with a strainer
  • Compact space saving design
  • No special tools are required for servicing
  • Replaceable seats for economical repair
  • Internal relief valve for reduced installation clearances
  • Captured springs for safe maintenance
Specifications
ArmorTek Technology No
Backflow Preventer Type Reduced Pressure Zone Assembly
Body Finish Bronze
Body Material Bronze
Body Pattern Straight
Brand Ames Fire & Waterworks
Bypass No
Bypass Size Does Not Apply To Product
Cap And Tether No
Disc Material Silicone
EAN 098268516937
Elbow Fitting No
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 1/2 IN
Inlet Connection Size-Metric 15 MM
Inlet Connection Type Female Threaded
Inlet Shutoff Valve Type Quarter Turn Ball Valve
Inlet Thread Type NPT
Lead Free NO
Maximum Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 12.06
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 1/2 IN
Outlet Connection Type Female Threaded
Outlet Shutoff Valve Type Quarter Turn Ball Valve
Outlet Thread Type NPT
Part Number 0437026
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Seat Material Polymer
Series 4000B
Strainer Yes
Technologies Does Not Apply To Product
Tradename None
