LF009-DOSY 2 1/2

Part of the LF009 Series

Ordering Code: 0792156

UPC: 098268437386

Lead Free: YES

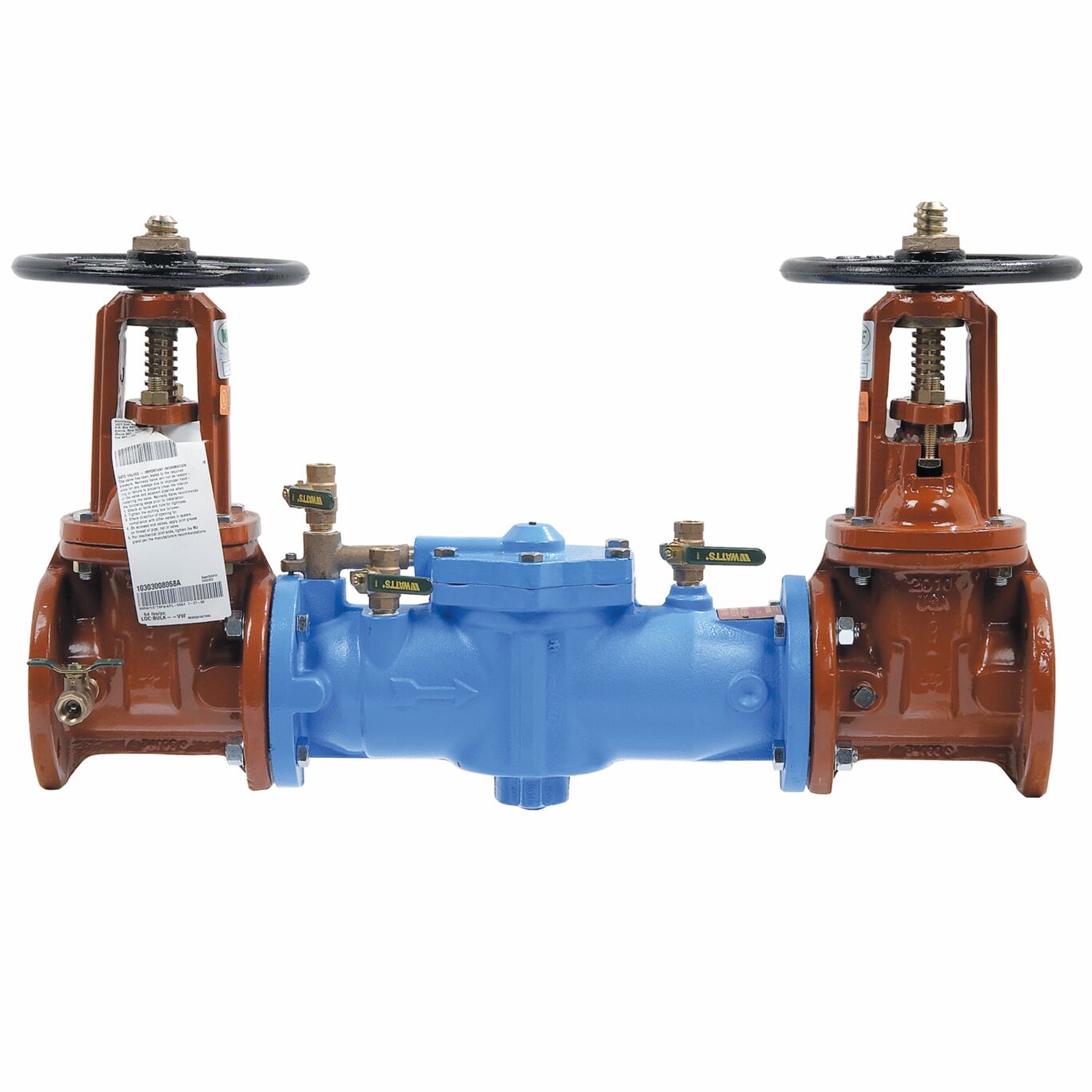

2 1/2 In Cast Iron Reduced Pressure Zone Assembly, Domestic Osy Shutoff

This 2 1/2 inch lead free reduced pressure zone assembly is designed to prevent the flow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and for contaminants at the service line entrance. This assembly consists of an epoxy coated cast iron body construction, UL and FM outside stem and yoke domestic resilient seated gate valves, top mounted test cocks, two in-line independent check valves, captured springs and replaceable check seats with an internal relief valve for reduced space requirements.

Product Features

  • No special tools required for servicing
  • Domestic gate valves
  • Single access cover and modular check construction for easy maintenance
  • Internal relief valve for reduced installation clearances
  • Test cocks are screwdriver slotted
  • Captured springs for safe maintenance
  • Replaceable seats for an economical repair
  • Large body passages provides a low pressure drop
  • Lead free construction
Backflow Preventer Type Reduced Pressure Zone Assembly
Body Finish Epoxy Coated
Body Material Cast Iron
Body Pattern Inline
Brand Name Watts
Bypass No
Cap And Tether No
EANUCCCode 098268437386
Elbow Fitting No
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 2 1/2 IN
Inlet Connection Size-Metric 65 MM
Inlet Connection Type Female Threaded
Inlet Shutoff Valve Type Outside Stem And Yoke Gate Valve
Inlet Thread Type FPT
Lead Free YES
Maximum Temperature-Fahrenheit 110
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Outlet Connection Size 2 1/2 IN
Outlet Connection Type Female Threaded
Outlet Shutoff Valve Type Outside Stem And Yoke Gate Valve
Outlet Thread Type FPT
Part Number 0792156
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Seat Material Stainless Steel
Series LF009
Strainer No
Type Valve to Accessory
